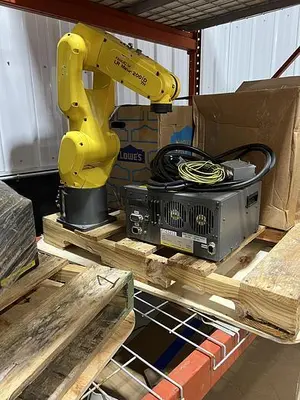

USED 2013 FANUC LR MATE 200ID/7H

THE 2013 FANUC LR MATE 200ID/7H IS A FIVE-AXIS ARTICULATED CNC ROBOT DESIGNED FOR HIGH-SPEED PERFORMANCE IN A COMPACT FORM FACTOR. IT FEATURES A 7.00 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 717.00 MM, AND A REPEATABILITY OF ±0.0200 MM. THE ROBOT HAS A MASS OF 24.00 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. IT IS EQUIPPED WITH A FANUC SYSTEM R-30IB MATE OPEN AIR CONTROLLER, TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE J1 AT 450°/S, J2 AT 380°/S, J3 AT 520°/S, J4 AT 545°/S, AND J5 AT 1500°/S. THE MOTION RANGE FOR THE AXES IS J1 +340°/-360°, J2 ±245°, J3 ±420°, J4 ±250°, AND J5 ±720°. THIS MODEL IS SUITABLE FOR VARIOUS APPLICATIONS, INCLUDING ASSEMBLY, DISPENSING, MACHINE LOADING AND TENDING, MATERIAL REMOVAL, ORDER PICKING, PACKAGING, AND PICK AND PLACE OPERATIONS.
