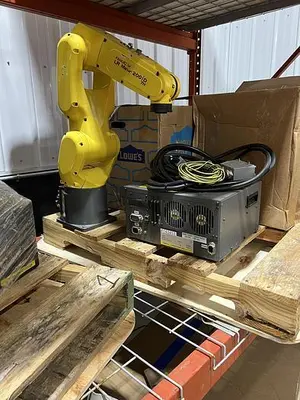

USED 2013 FANUC LR MATE 200ID/7H

THE 2013 FANUC LR MATE 200ID/7H IS A FIVE-AXIS ARTICULATED CNC ROBOT DESIGNED FOR HIGH-SPEED PERFORMANCE IN COMPACT WORKSPACES. IT FEATURES A 7.00 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 717.00 MM, AND A REPEATABILITY OF ±0.0200 MM. WITH A MASS OF 24.00 KG, THE ROBOT SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB MATE OPEN AIR CONTROLLER, CONNECTION CABLES, AND A TEACH PENDANT. TECHNICAL SPECIFICATIONS FOR AXIS MOTION SPEEDS ARE 450°/S FOR J1, 380°/S FOR J2, 520°/S FOR J3, 545°/S FOR J4, AND 1500°/S FOR J5. THE MOTION RANGE FOR THE AXES IS J1 FROM +340° TO -360°, J2 ±245°, J3 ±420°, J4 ±250°, AND J5 ±720°. THIS MODEL IS SUITABLE FOR VARIOUS APPLICATIONS INCLUDING ASSEMBLY, DISPENSING, MACHINE LOADING AND TENDING, MATERIAL REMOVAL, ORDER PICKING, PACKAGING, AND PICK AND PLACE OPERATIONS.
