USED 2013 FANUC LR MATE 200ID/7H

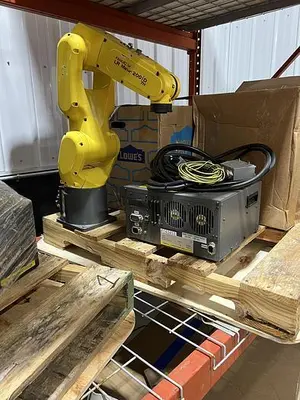

THE 2013 FANUC LR MATE 200ID/7H IS A FIVE-AXIS ARTICULATED CNC ROBOT DESIGNED FOR HIGH-SPEED PERFORMANCE IN A COMPACT FORM FACTOR. IT FEATURES A 7 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 717 MM, AND A REPEATABILITY OF ±0.02 MM. THE ROBOT HAS A MASS OF 24 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. AXIS MOTION SPEEDS ARE 450°/S FOR J1, 380°/S FOR J2, 520°/S FOR J3, 545°/S FOR J4, AND 1500°/S FOR J5. THE MOTION RANGES FOR THE AXES ARE J1 +340° TO -360°, J2 ±245°, J3 ±420°, J4 ±250°, AND J5 ±720°. THE SYSTEM IS EQUIPPED WITH A FANUC SYSTEM R-30IB MATE OPEN AIR CONTROLLER, CONNECTION CABLES, AND A TEACH PENDANT. THIS ROBOT IS SUITABLE FOR VARIOUS APPLICATIONS, INCLUDING ASSEMBLY, DISPENSING, MACHINE LOADING AND TENDING, MATERIAL REMOVAL, ORDER PICKING, PACKAGING, AND PICK-AND-PLACE OPERATIONS.
