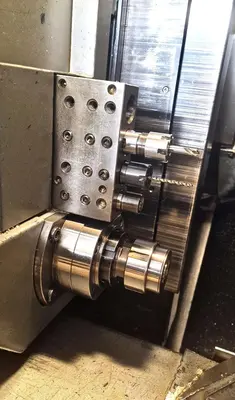

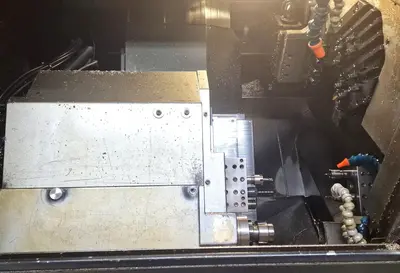

USED 2007 CITIZEN K16VIIP

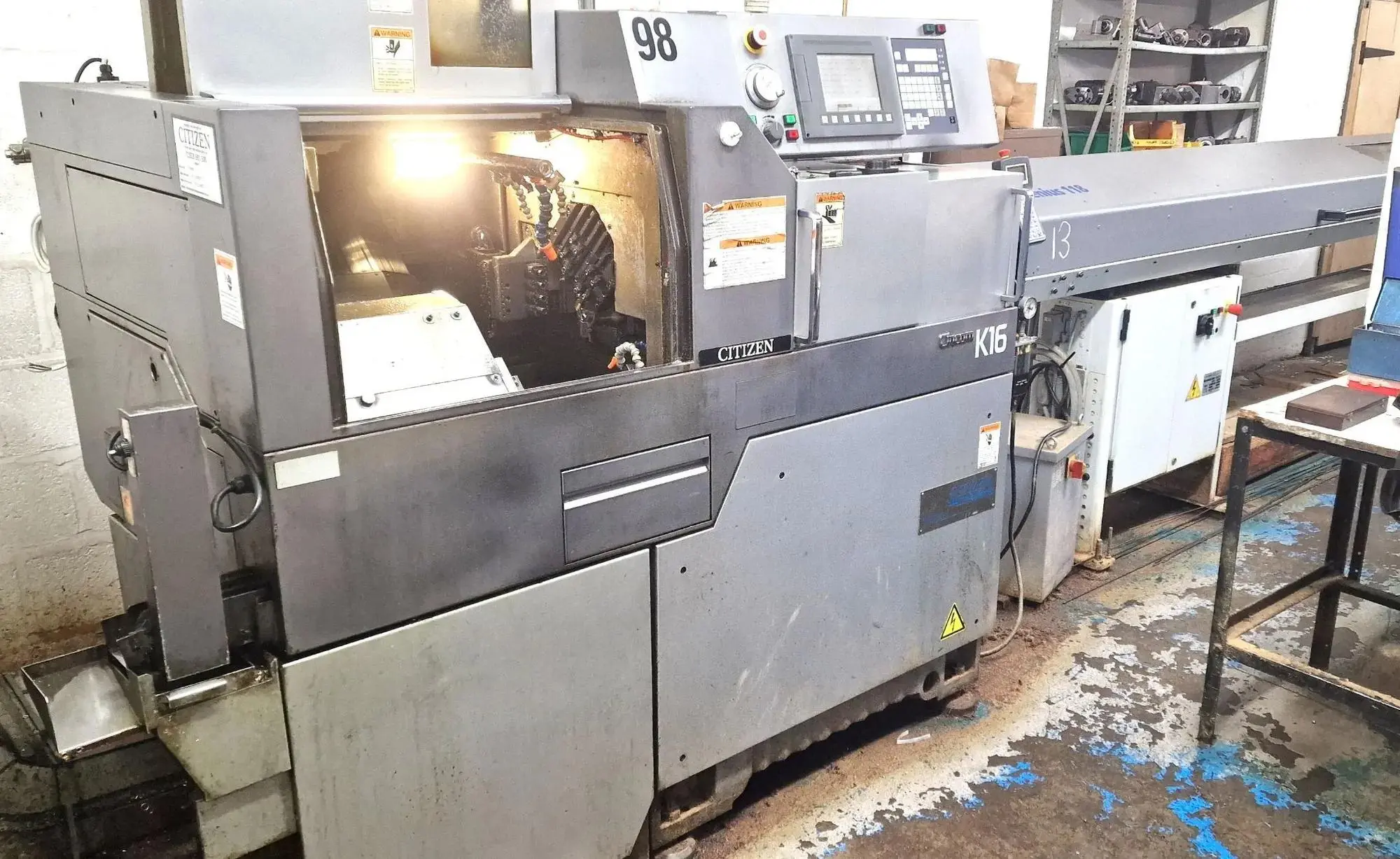

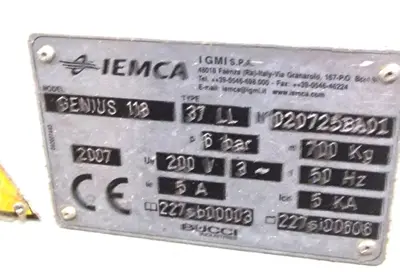

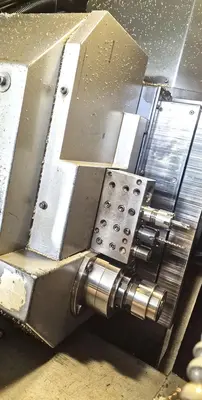

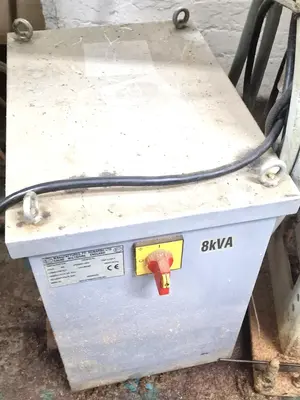

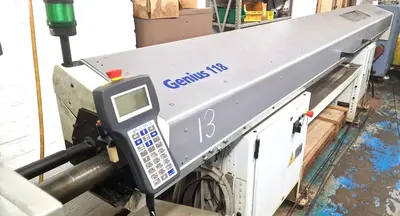

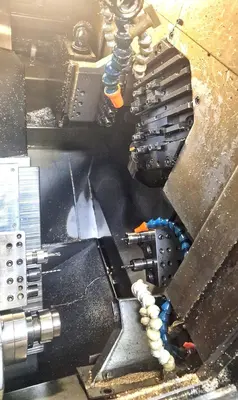

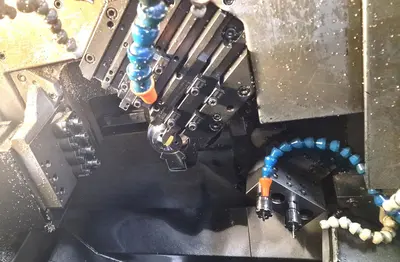

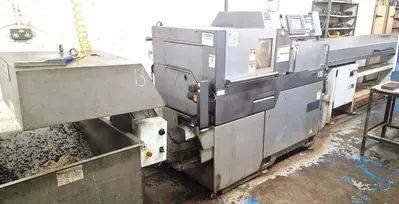

THE 2007 CITIZEN K16VIIP IS A 7-AXIS SWISS TYPE CNC LATHE DESIGNED FOR PRECISION MACHINING OF SMALL-DIAMETER COMPONENTS. IT FEATURES A DUAL-SPINDLE CONFIGURATION WITH A MAXIMUM BAR CAPACITY OF 16MM AND A MAXIMUM MACHINING LENGTH OF 200MM. THE PRIMARY SPINDLE OPERATES AT SPEEDS UP TO 15,000 RPM WITH 3.7 KW OF POWER, WHILE THE COUNTER SPINDLE REACHES 10,000 RPM WITH 1.1 KW OF POWER. BOTH SPINDLES INCORPORATE C-AXIS INDEXING WITH 0.001-DEGREE PRECISION. THE MACHINE IS EQUIPPED WITH A 10-POSITION TOOL CARRIER, INCLUDING 4 MOTORIZED POSITIONS FOR LIVE TOOLING, WHICH OPERATES AT A MAXIMUM SPEED OF 6,000 RPM. ADDITIONAL TECHNICAL COMPONENTS INCLUDE A GUIDE BUSH HOLDER, PARTS CATCHER, AND A BAR FEEDER. THE SYSTEM RUNS ON A SUPPLY VOLTAGE OF 200 V WITH A TOTAL INSTALLED POWER OF 8 KW.
