USED 2004 THERMWOOD C53

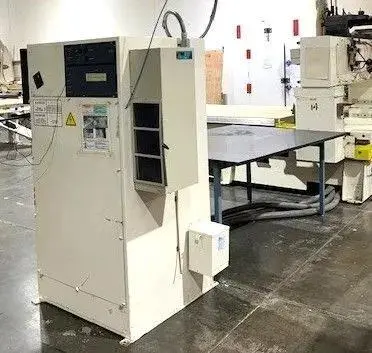

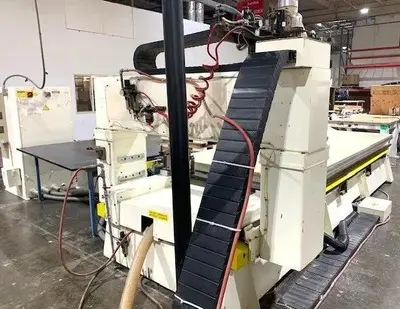

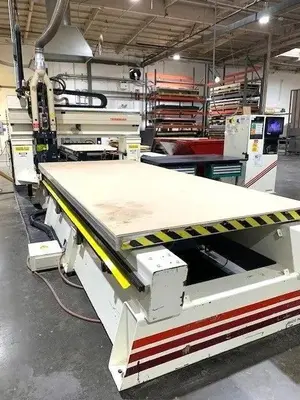

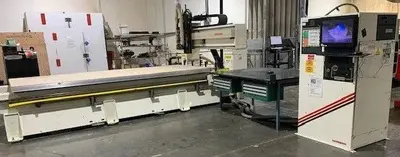

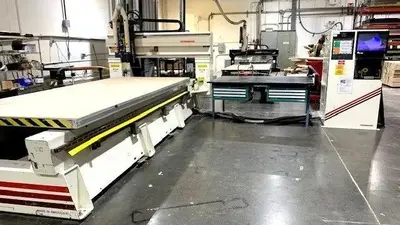

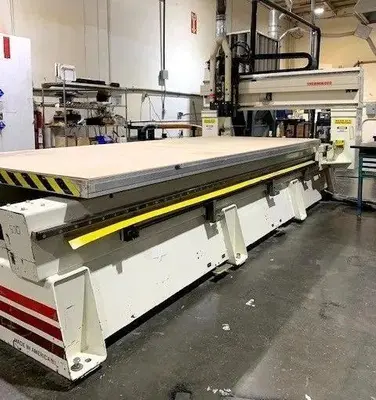

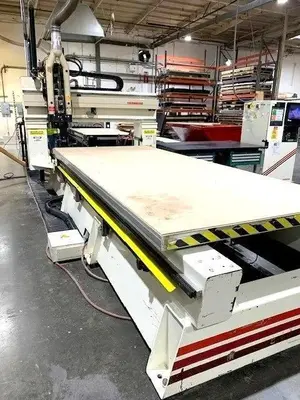

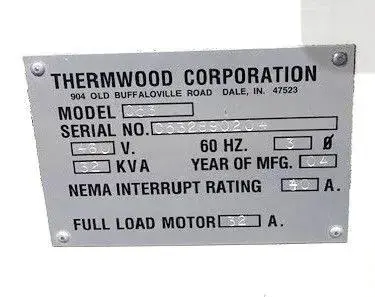

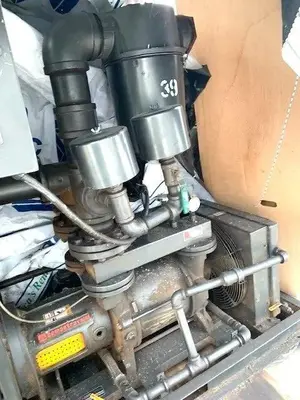

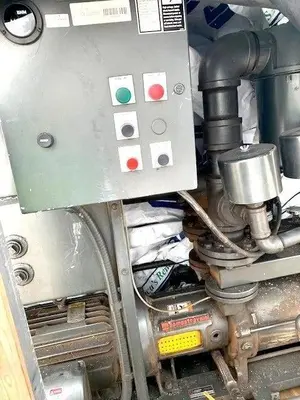

THE THERMWOOD MODEL C53 IS A 3-AXIS CNC ROUTER MANUFACTURED IN 2004, DESIGNED WITH A MOVING GANTRY AND A FIXED TABLE CONFIGURATION. THE MACHINE FEATURES A 60-INCH BY 144-INCH TABLE AND PROVIDES AXIS TRAVELS OF 60 INCHES ON THE X-AXIS, 144 INCHES ON THE Y-AXIS, AND 6 INCHES ON THE Z-AXIS. IT IS CAPABLE OF FEED RATES UP TO 900 INCHES PER MINUTE ACROSS ALL AXES. THIS MODEL IS EQUIPPED WITH A 10 HP ROUTER SPINDLE OPERATING AT 15,000 RPM, COMPATIBLE WITH BIT SHANK SIZES UP TO 3/4 INCH. THE SYSTEM IS UPGRADED WITH A QCORE CNC CONTROL AND INCLUDES A VACUUM PUMP FOR MATERIAL HOLD-DOWN. ELECTRICAL REQUIREMENTS ARE 3-PHASE, 60-CYCLE POWER AT EITHER 220 OR 440 VOLTS. THE MACHINE'S PHYSICAL DIMENSIONS ARE APPROXIMATELY 191 INCHES IN LENGTH, 95 INCHES IN WIDTH, AND 82 INCHES IN HEIGHT, WITH AN APPROXIMATE WEIGHT OF 9,000 LBS.
