USED 2017 SAMCHULLY HC-18

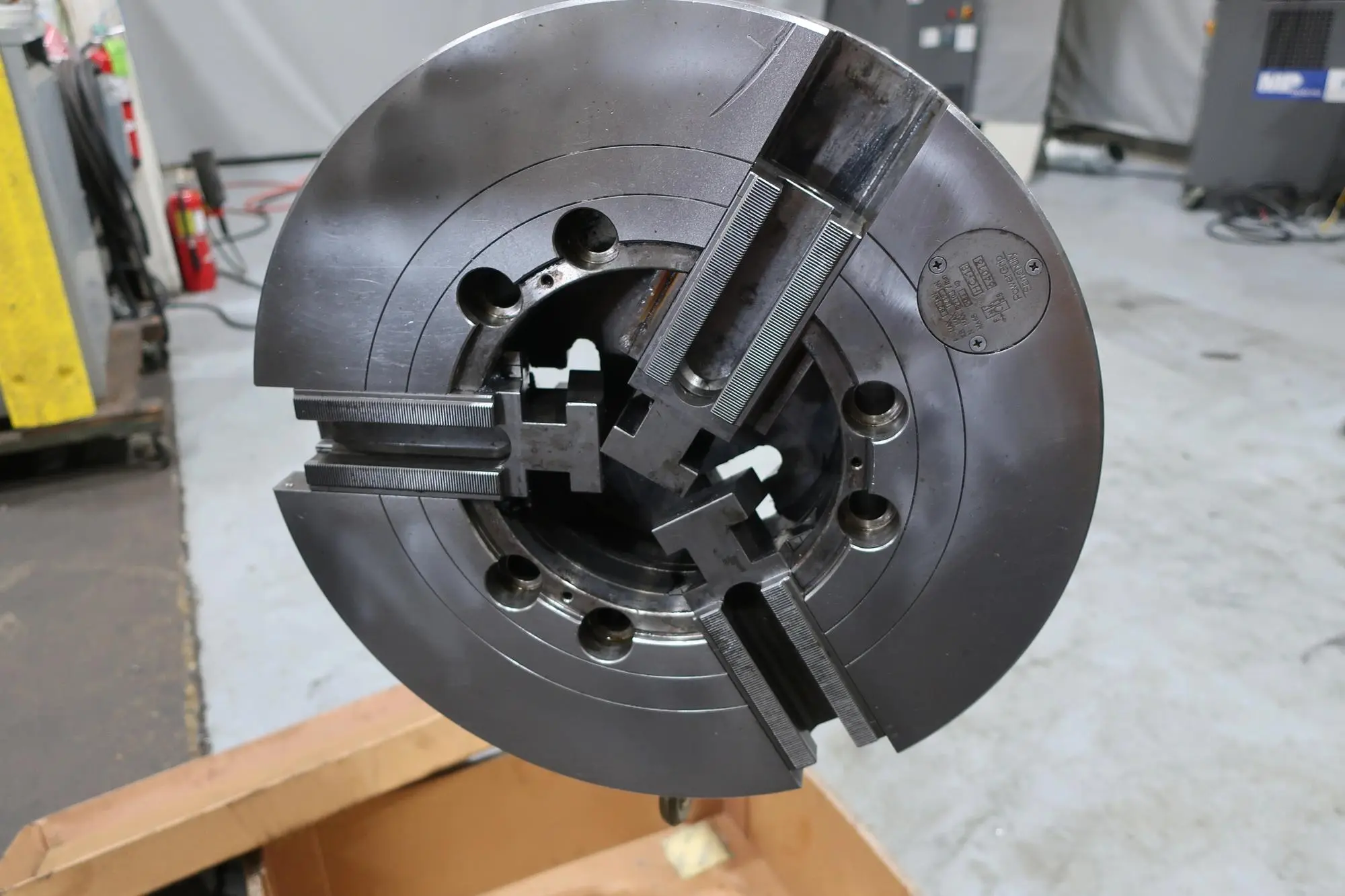

THE SAMCHULLY HC-18 IS AN 18-INCH, 3-JAW, CLOSED-CENTER POWER CHUCK DESIGNED FOR PRECISION TURNING APPLICATIONS, PARTICULARLY IN VERTICAL LATHE ENVIRONMENTS WHERE PROTECTION AGAINST CHIPS AND COOLANT IS CRITICAL. THE CHUCK FEATURES A WEDGE-STYLE MECHANISM AND OFFERS HIGH GRIPPING FORCE, WITH A CLAMPING RANGE OF 133 MM TO 450 MM AND A MAXIMUM SPEED OF 2,710 RPM. IT INCLUDES A JAW STROKE OF 16 MM (DIAMETER) AND A PLUNGER STROKE OF 35 MM, AND UTILIZES A DRAWTUBE CONNECTION. THE UNIT IS CONSTRUCTED FOR DURABILITY AND CONSISTENT CLAMPING PERFORMANCE, WITH A SEALED DESIGN THAT HELPS PREVENT CONTAMINATION AND EXTENDS SERVICE LIFE.
