USED 2013 SCM ACCORD 30 FX-M

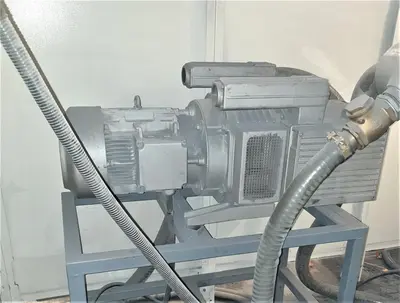

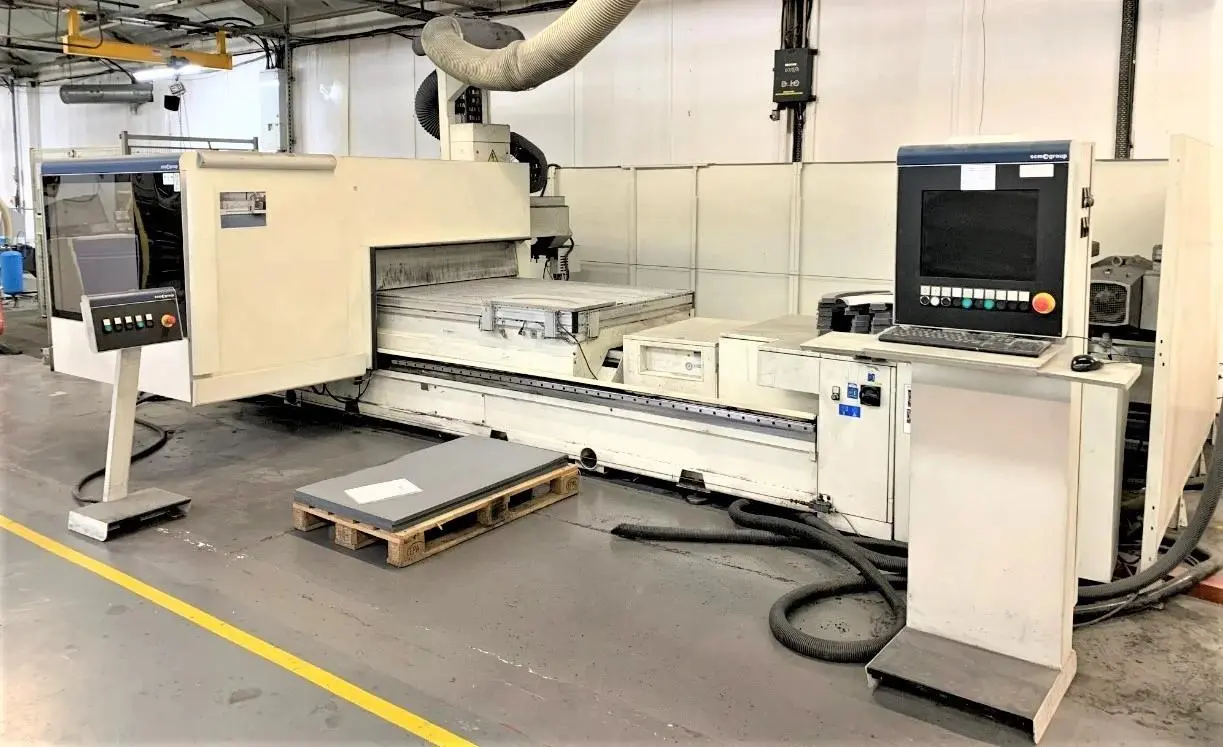

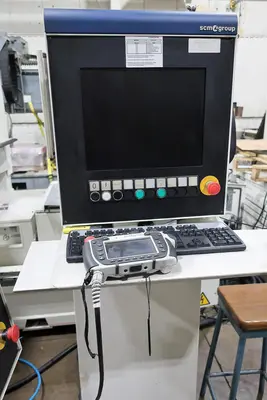

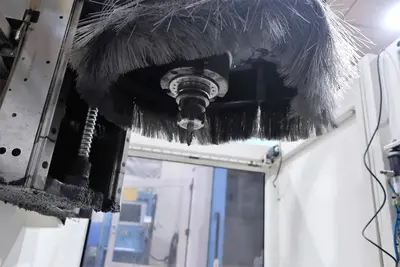

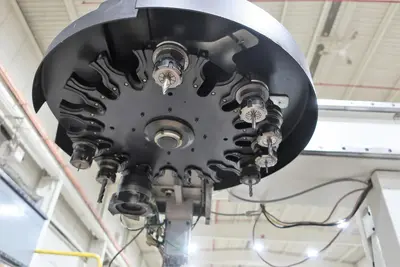

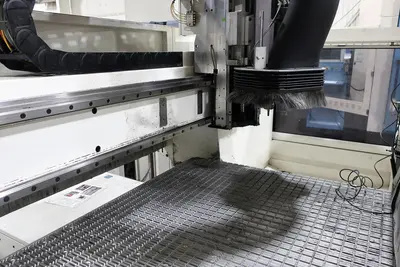

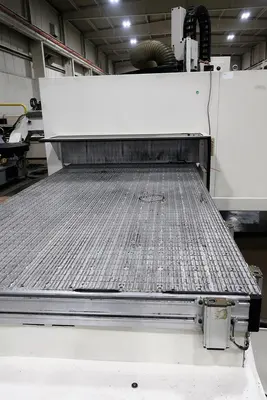

THE SCM ACCORD 30 FX-M IS A CNC MACHINING CENTER DESIGNED FOR FLEXIBLE PRODUCTION OF PANELS INCLUDING SOLID WOOD, PLYWOOD, CHIPBOARD, AND MDF. THE MACHINE FEATURES A RIGID MOBILE GANTRY STRUCTURE AND A MULTIFUNCTION ALUMINUM WORKTABLE SUITABLE FOR NESTING APPLICATIONS. TECHNICAL SPECIFICATIONS INCLUDE AN X-AXIS WORKING AREA OF 3,650 MM AND A Y-AXIS WORKING AREA OF 1,320 MM, WITH A COMPONENT PASSAGE OF 250 MM. THE MACHINE IS EQUIPPED WITH A 3-AXIS ELECTROSPINDLE WITH POWER RANGING FROM 8.5 KW TO 13 KW AND A MAXIMUM ROTATION SPEED OF 24,000 RPM. AXIS SPEEDS REACH UP TO 90 M/MIN IN X AND Y. THE UNIT INCLUDES A 16-POSITION TOOL CHANGER AND OPERATES WITH THE XILOG PLUS CONTROL SYSTEM. ADDITIONAL FEATURES INCLUDE A 2-ZONE VACUUM TABLE, VACUUM PUMP SYSTEM, AND COMPRESSED AIR REQUIREMENTS BETWEEN 170 AND 300 NL/MIN.
