USED 1998 MIYANO LZ-02

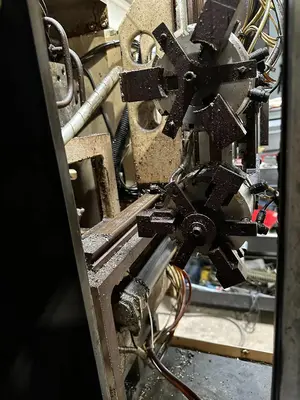

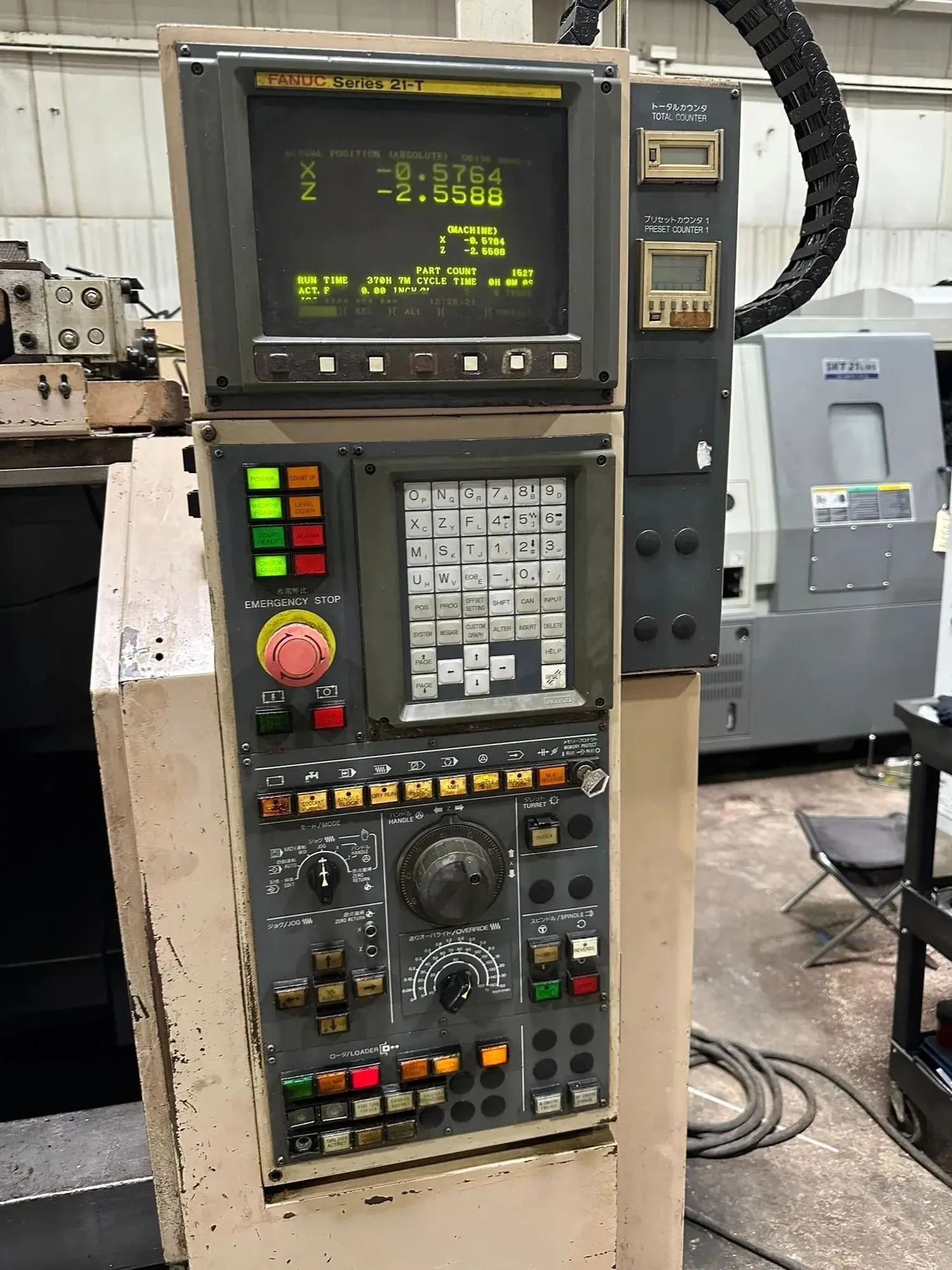

THE 1998 MIYANO LZ-02 IS A 2-AXIS CNC LATHE MANUFACTURED IN 1998, EQUIPPED WITH A FANUC 21T CONTROL SYSTEM. THIS MACHINE FEATURES A 10-POSITION TURRET, INCLUDING 5 LIVE TOOL POSITIONS, AND IS DESIGNED FOR EFFICIENT PRODUCTION WITH AN INTEGRATED AUTO LOAD/UNLOAD SYSTEM PROVIDING A CYCLE TIME OF 5.5 SECONDS. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM CUTTING DIAMETER OF 4.724 INCHES AND A MAXIMUM MACHINING LENGTH WITH THE LOADER OF 3.14 INCHES. THE SPINDLE FEATURES A 2.4-INCH BORE AND IS POWERED BY A 15 HP DRIVE MOTOR. THE UNIT INCLUDES A 3-JAW CHUCK AND OPERATES ON X AND Z AXES. ELECTRICAL REQUIREMENTS ARE 208/220/230 VOLTS AC, 3-PHASE, WITH A 28KVA FULL LOAD CAPACITY.
