USED 2012 GENESIS SYSTEM 3X

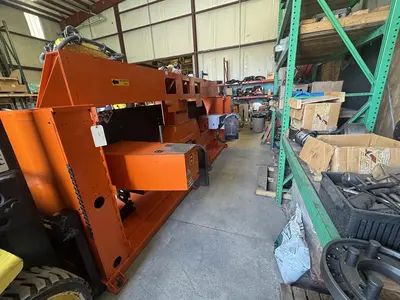

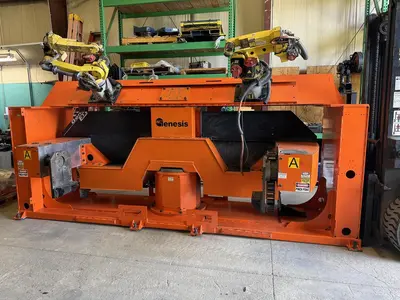

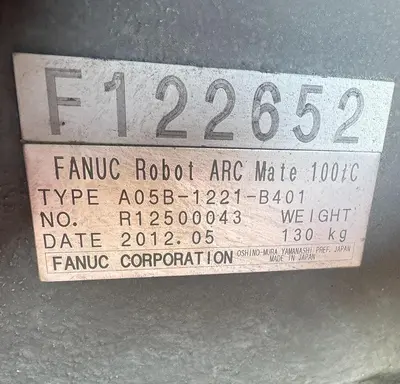

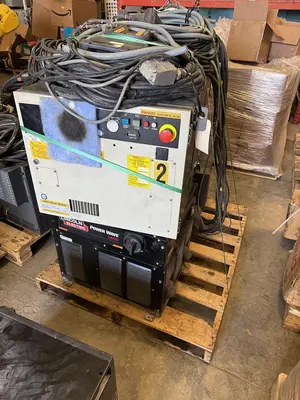

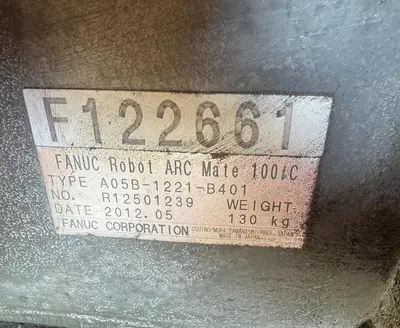

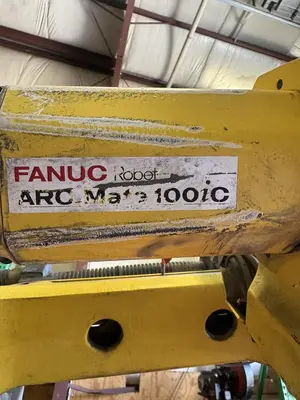

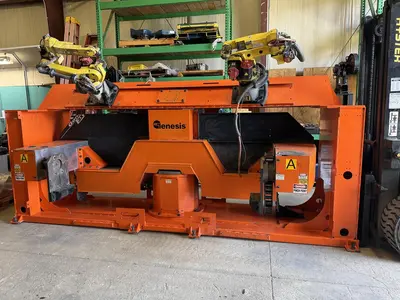

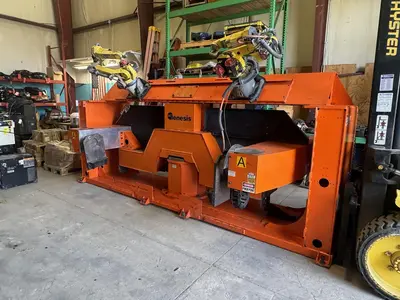

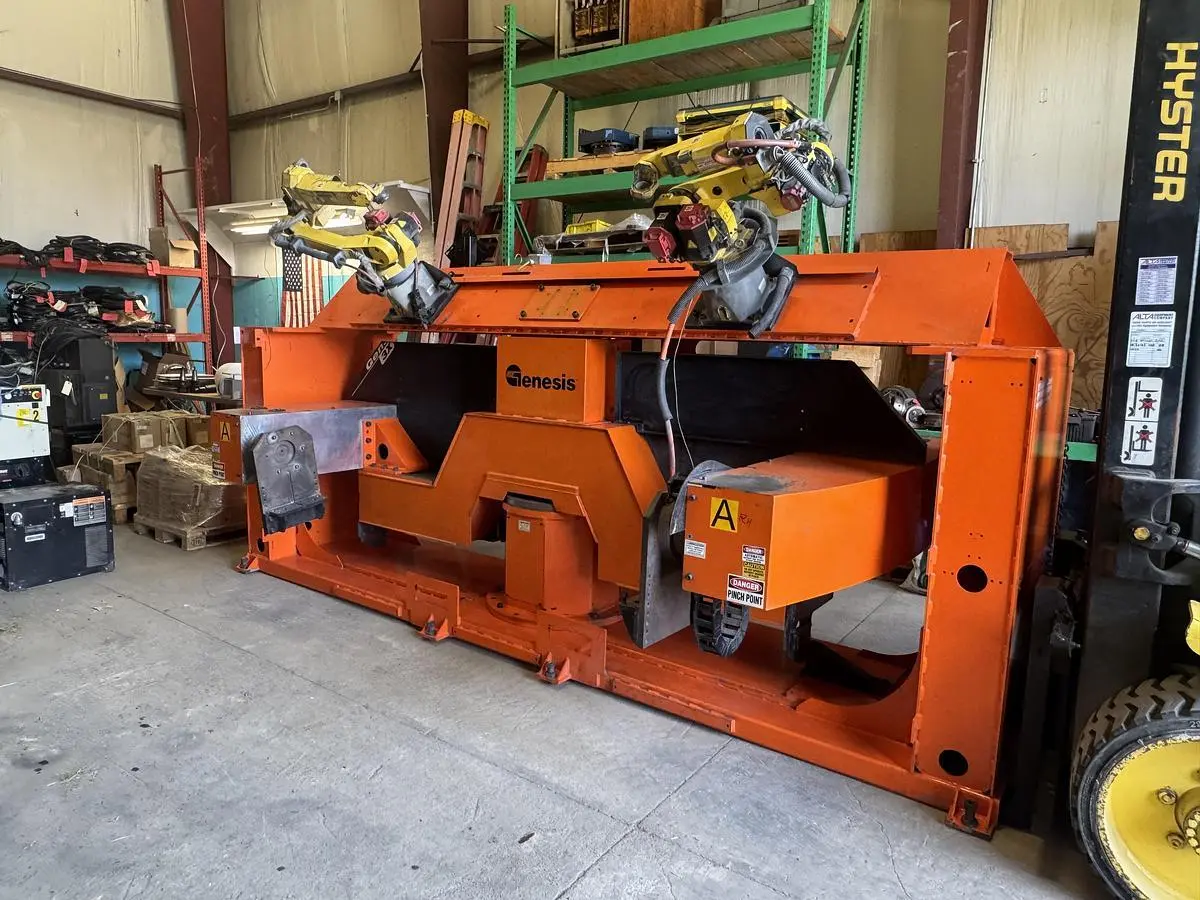

THE 2012 GENESIS SYSTEM 3X IS A DUAL-TRUNNION MIG WELDING CELL FEATURING TWO FANUC ARC MATE 100IC SIX-AXIS ARTICULATED ROBOTS. EACH ROBOT HAS A 10 KG PAYLOAD CAPACITY, A 1420 MM HORIZONTAL REACH, AND A REPEATABILITY OF ±0.08 MM. THE SYSTEM IS CONTROLLED BY FANUC R-30IB CONTROLLERS AND INCLUDES COLOR TEACH PENDANTS AND CONNECTION CABLES. THE WELDING CELL IS BUILT ON A FABRICATED BASE WITH AN INDEXING CENTER COLUMN THAT ROTATES 180 DEGREES. THE TRUNNIONS FEATURE ADJUSTABLE BETWEEN-CENTER DISTANCES RANGING FROM APPROXIMATELY 6 FEET TO 8 FEET IN 2-INCH INCREMENTS, WITH AN APPROXIMATE SWING OF 49 INCHES. THE MAIN SWEEP INDEX TIME IS 4.5 TO 5 SECONDS, AND THE WEIGHT CAPACITY PER STATION IS 2,204 LBS. ROBOT MOTION SPEEDS ARE 210°/S FOR J1 AND J3, 190°/S FOR J2, 400°/S FOR J4 AND J5, AND 600°/S FOR J6. THE ROBOTS SUPPORT FLOOR, INVERTED, OR ANGLE MOUNTING. INTEGRATED WELDING EQUIPMENT INCLUDES TWO LINCOLN I-400 POWER SUPPLIES, TWO LINCOLN 4R220 WIRE FEEDERS, TWO WELDING TORCHES, AND A TORCH TIP CLEANER. THE ROBOT DESIGN INCORPORATES A SLIM WRIST FOR ACCESS TO SMALL OPENINGS AND HIGH-SPEED MOTION ACROSS ITS WORKING ENVELOPE.
