NEW 2019 KAWASAKI RS010L

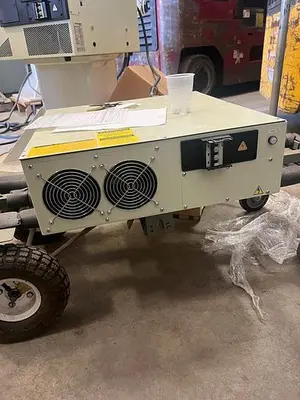

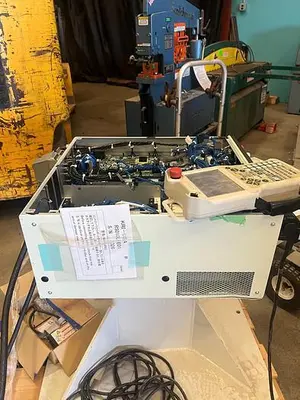

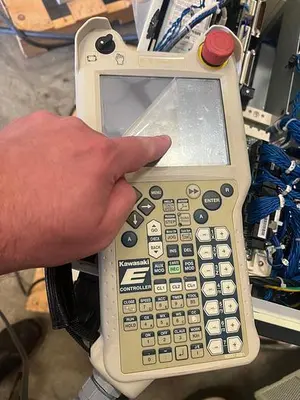

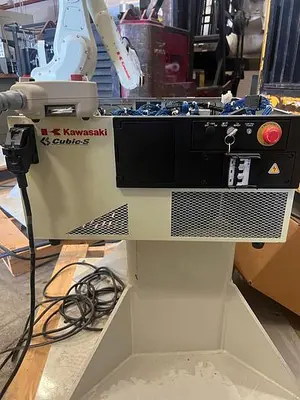

THE 2019 KAWASAKI RS010L IS A HIGH-SPEED, SIX-AXIS INDUSTRIAL ROBOT FROM THE R SERIES, DESIGNED FOR SMALL TO MEDIUM-DUTY APPLICATIONS. IT FEATURES A 10 KG PAYLOAD CAPACITY AND AN EXTENSIVE 1925 MM REACH WITH A POSITIONAL REPEATABILITY OF ±0.05 MM. THE ROBOT’S LIGHTWEIGHT ARM AND HIGH-OUTPUT MOTORS ENABLE RAPID ACCELERATION AND HIGH-SPEED OPERATION, WITH A MAXIMUM SPEED OF 13,100 MM/S. AXIS MOTION RANGES INCLUDE J1 ±180°, J2 +155° TO -105°, J3 +150° TO -163°, J4 ±270°, J5 ±145°, AND J6 ±360°. CORRESPONDING MOTION SPEEDS ARE 190°/S (J1), 205°/S (J2), 210°/S (J3), 400°/S (J4), 360°/S (J5), AND 610°/S (J6). THE UNIT HAS A MASS OF 230 KG AND SUPPORTS FLOOR OR CEILING MOUNTING. IT IS BUILT WITH A DOUBLE SEAL CONSTRUCTION, PROVIDING AN IP67 PROTECTION RATING FOR THE WRIST AND IP65 FOR THE BASE AXES. THE SYSTEM IS EQUIPPED WITH A KAWASAKI E01 CONTROLLER, A COLOR TEACH PENDANT, CONNECTION CABLES, A TRANSFORMER, AND A RISER.
