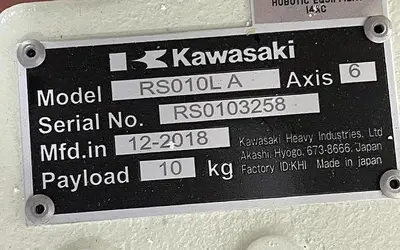

NEW 2018 KAWASAKI RS010L

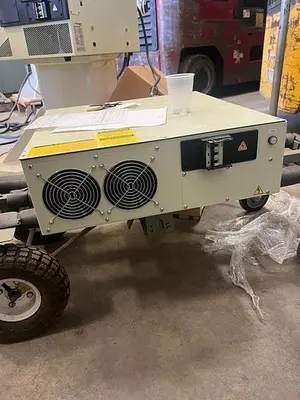

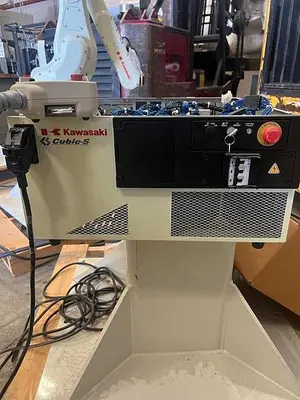

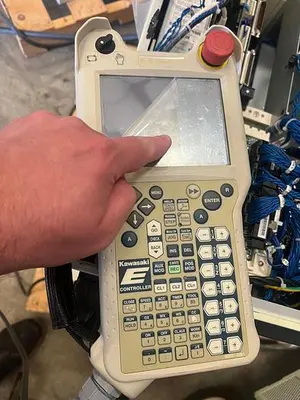

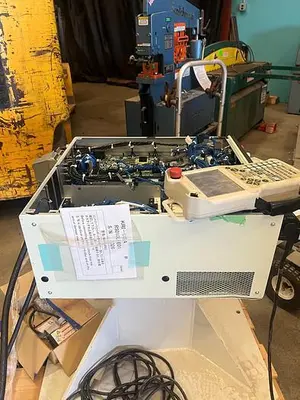

THE 2018 KAWASAKI RS010L IS A HIGH-SPEED, SIX-AXIS INDUSTRIAL ROBOT FROM THE R SERIES DESIGNED FOR SMALL TO MEDIUM DUTY APPLICATIONS. IT FEATURES A 10 KG PAYLOAD CAPACITY, A MAXIMUM REACH OF 1925 MM, AND A POSITIONAL REPEATABILITY OF ±0.05 MM. THE ROBOT HAS A MASS OF 230 KG AND SUPPORTS FLOOR OR CEILING MOUNTING. MOTION RANGES FOR THE AXES ARE JT1 ±180°, JT2 +155° TO -105°, JT3 +150° TO -163°, JT4 ±270°, JT5 ±145°, AND JT6 ±360°. MAXIMUM MOTION SPEEDS REACH 190°/S FOR JT1, 205°/S FOR JT2, 210°/S FOR JT3, 400°/S FOR JT4, 360°/S FOR JT5, AND 610°/S FOR JT6, WITH A MAXIMUM LINEAR SPEED OF 13,100 MM/S. THE UNIT PROVIDES IP67 PROTECTION FOR THE WRIST AND IP65 FOR THE BASE AXES. IT IS EQUIPPED WITH A KAWASAKI E01 CONTROLLER, COLOR TEACH PENDANT, CONNECTION CABLES, RISER, AND TRANSFORMER.
