USED 2014 FANUC M900IA/400L

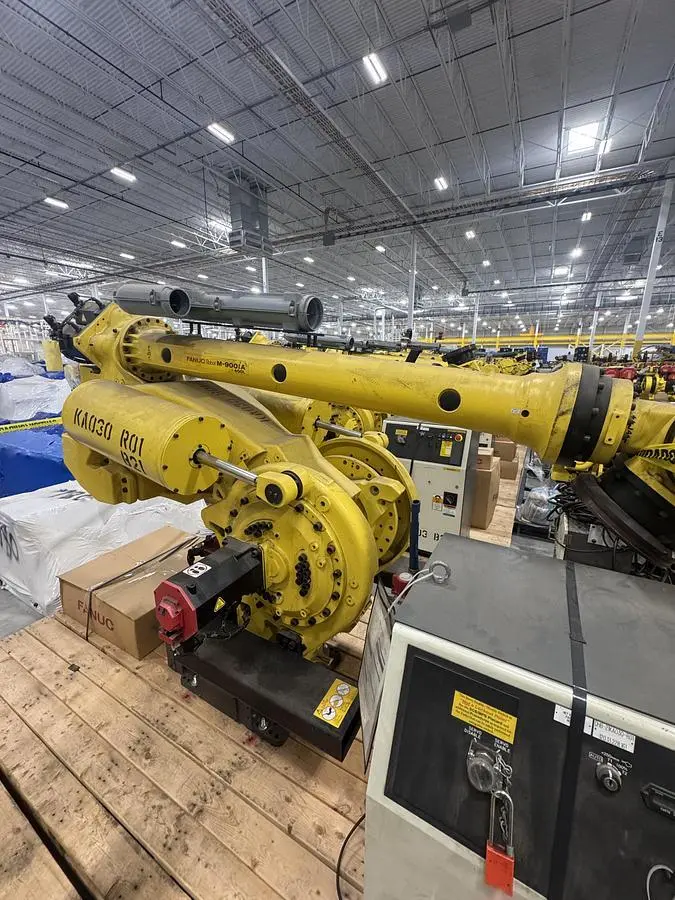

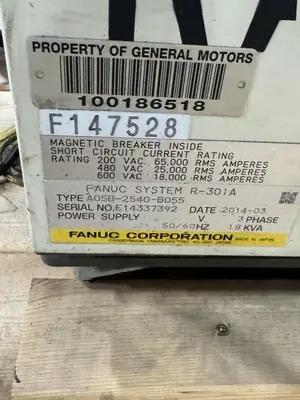

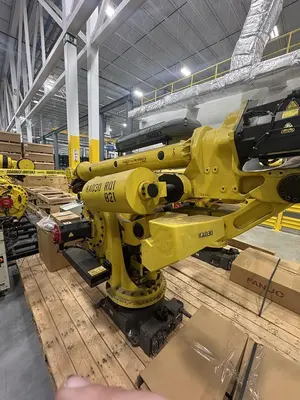

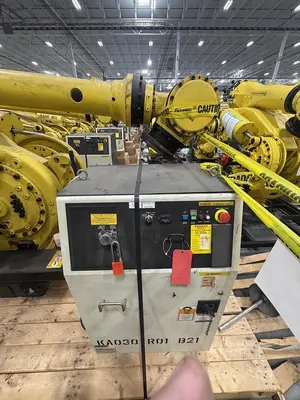

THE 2014 FANUC M-900IA/400L IS A SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY MATERIAL HANDLING, PART TRANSFER, AND APPLICATIONS REQUIRING SIGNIFICANT FORCE SUCH AS CUTTING, POLISHING, AND DRILLING. THIS FLOOR-MOUNTED MODEL FEATURES A 400 KG PAYLOAD CAPACITY AND AN EXTRA-LONG HORIZONTAL REACH OF 3625 MM. THE MECHANICAL UNIT HAS A MASS OF 3150 KG AND IS EQUIPPED WITH AN IP67-RATED WRIST FOR OPERATION IN HARSH ENVIRONMENTS. PERFORMANCE SPECIFICATIONS INCLUDE A REPEATABILITY OF ±0.5 MM. MOTION SPEEDS ARE 80°/S FOR AXES J1, J2, AND J3, 100°/S FOR J4 AND J5, AND 160°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, AND J6 ±720°. THE SYSTEM IS PAIRED WITH A FANUC R-30IA CONTROLLER AND INCLUDES A TEACH PENDANT AND CONNECTION CABLES.
