USED 2014 FANUC M900IA/400L

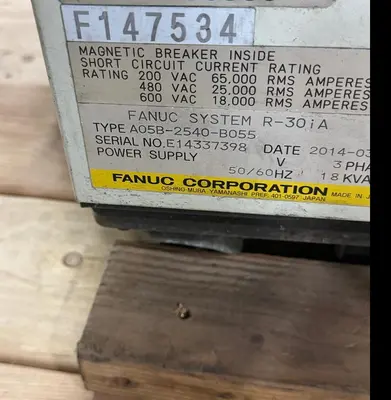

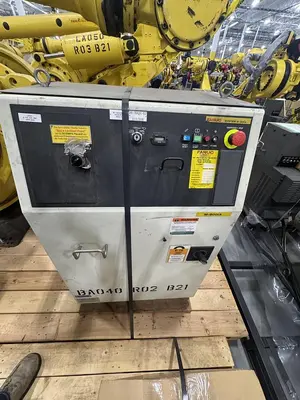

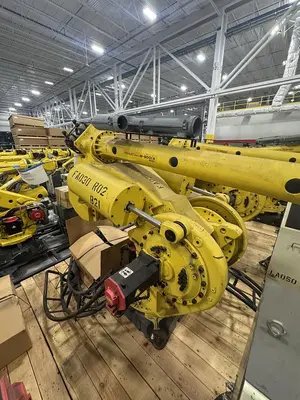

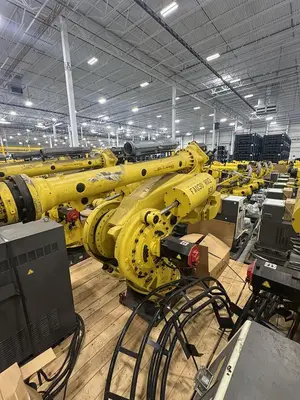

THE 2014 FANUC M-900IA/400L IS A HIGH-PAYLOAD, LONG-REACH SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY MATERIAL HANDLING, PART TRANSFER, AND ASSEMBLY APPLICATIONS. IT FEATURES A 400 KG PAYLOAD CAPACITY AND AN EXTENSIVE HORIZONTAL REACH OF 3625 MM. THE ROBOT IS ENGINEERED WITH A RIGID STRUCTURAL DESIGN AND A PARALLEL LINK ARM TO PROVIDE HIGH REPEATABILITY OF ±0.5 MM AND EXCEPTIONAL STABILITY. THE UNIT HAS A TOTAL MASS OF 3150 KG AND IS DESIGNED EXCLUSIVELY FOR FLOOR MOUNTING. IT IS EQUIPPED WITH AN IP67-RATED WRIST, ALLOWING FOR RELIABLE OPERATION IN HARSH OR DIRTY MANUFACTURING ENVIRONMENTS. MOTION SPEEDS FOR THE AXES ARE 80°/S FOR J1, J2, AND J3, 100°/S FOR J4 AND J5, AND 160°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, AND J6 ±720°. THIS MODEL IS TYPICALLY PAIRED WITH THE FANUC R-30IA CONTROLLER AND INCLUDES A TEACH PENDANT AND CONNECTION CABLES. ITS DESIGN FEATURES STATIONARY OUTER ARMS TO SIMPLIFY HOSE AND CABLE DRESS-OUT, CONTRIBUTING TO INCREASED SERVICE LIFE AND REDUCED MAINTENANCE. THE M-900IA/400L IS SUITABLE FOR DEMANDING TASKS SUCH AS HEAVY-DUTY DRILLING, PALLETIZING, AND PROCESSING LARGE WORKPIECES.
