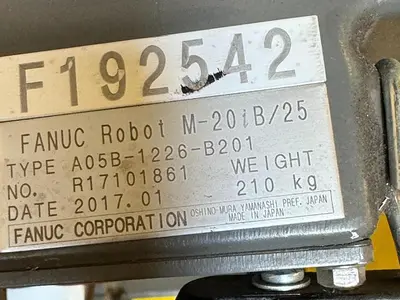

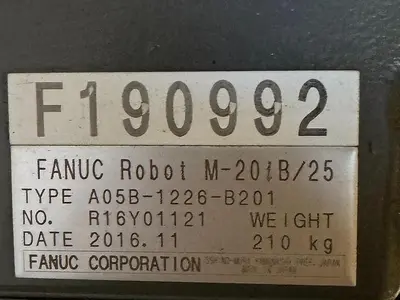

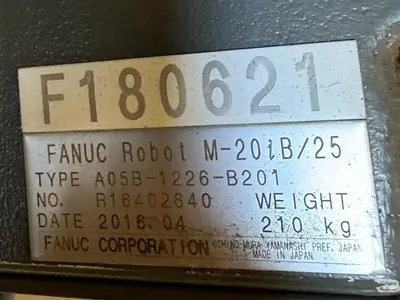

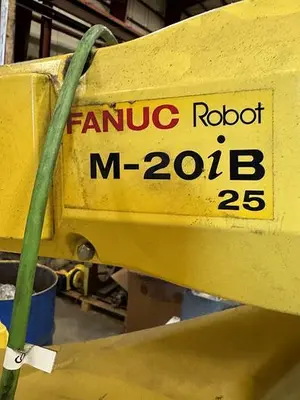

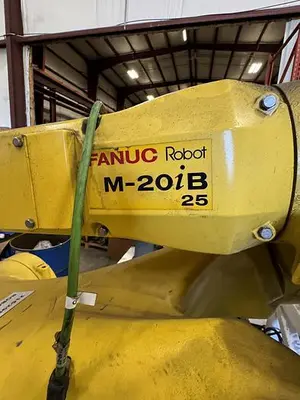

USED 2016 FANUC FANUC M-20IB/25

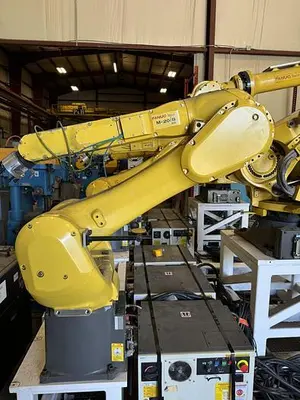

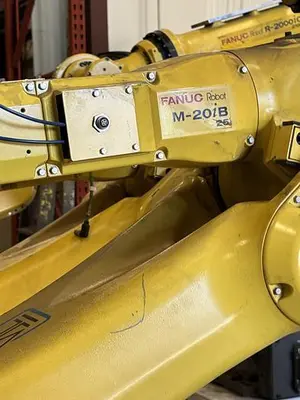

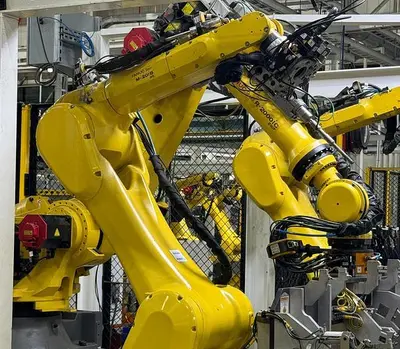

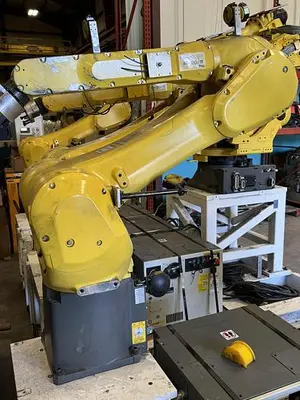

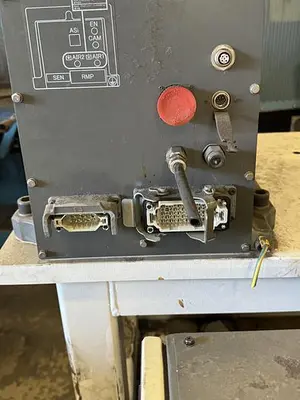

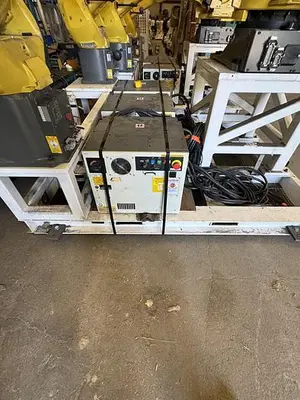

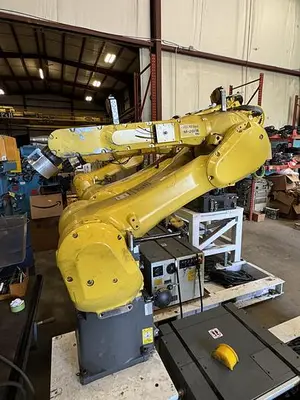

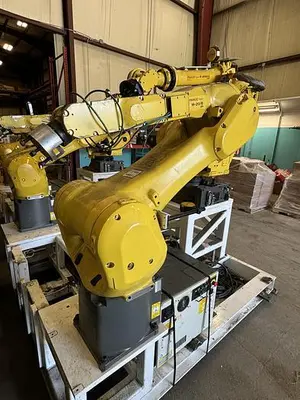

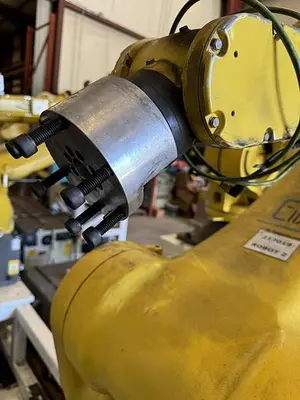

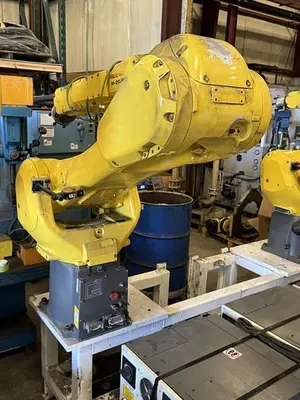

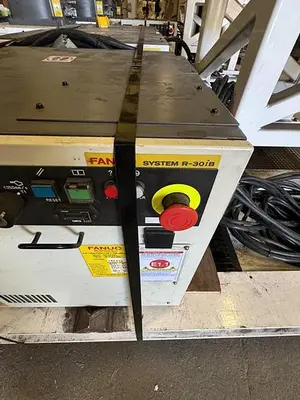

THE 2016 FANUC M-20IB/25 IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR APPLICATIONS SUCH AS MATERIAL HANDLING, PICK AND PLACE, MACHINE TENDING, LOADING, MATERIAL REMOVAL, DEBURRING, AND WATERJET TASKS. IT FEATURES A 25 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 1853 MM, AND A REPEATABILITY OF ±0.05 MM. THE ROBOT HAS A MASS OF 250 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. ITS ADVANCED DESIGN INCLUDES A LIGHTWEIGHT HOLLOW UPPER ARM AND WRIST WITH INTERNAL CABLE ROUTING TO STREAMLINE OPERATION. AXIS MOTION SPEEDS ARE 205°/S FOR J1 AND J2, 260°/S FOR J3, 415°/S FOR J4 AND J5, AND 880°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 +340° TO -360°, J2 ±240°, J3 ±303°, J4 ±400°, J5 ±290°, AND J6 ±540°. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB ROBOT CONTROLLER, CONNECTION CABLES, AND A COLOR I-TEACH PENDANT.
