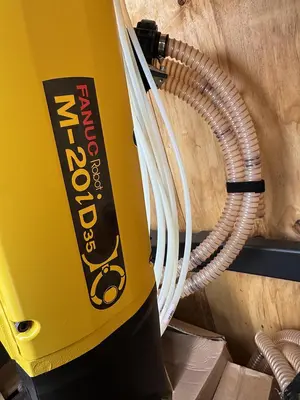

USED 2021 FANUC FANUC M-20ID/35

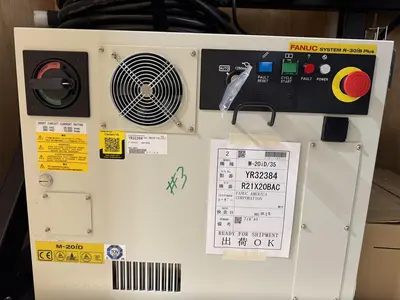

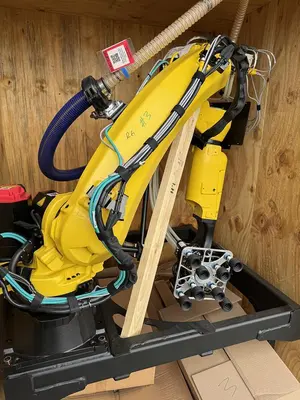

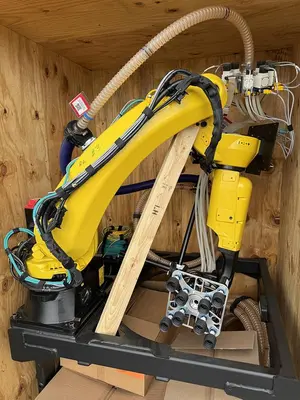

THE 2021 FANUC M-20ID/35 IS A HIGH-PERFORMANCE SIX-AXIS INDUSTRIAL ROBOT DESIGNED FOR HANDLING LARGE PARTS AND MATERIALS. IT FEATURES A 35 KG PAYLOAD CAPACITY, AN 1831 MM HORIZONTAL REACH, AND A REPEATABILITY OF ± 0.03 MM. THE MECHANICAL UNIT WEIGHS 250 KG AND IS ENGINEERED FOR HIGH FLEXIBILITY IN WRIST-LOAD APPLICATIONS, MAKING IT SUITABLE FOR PICK AND PLACE, MACHINE SERVICING, AND MATERIAL HANDLING OPERATIONS. AXIS MOTION RANGES ARE J1 AT 370° OR 340°, J2 AT 260°, J3 AT 458°, J4 AT 400°, J5 AT 360°, AND J6 AT 900°. MAXIMUM AXIS SPEEDS ARE 180 °/S FOR J1 AND J2, 200 °/S FOR J3, 350 °/S FOR J4 AND J5, AND 400 °/S FOR J6. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB PLUS CONTROLLER, A TEACH PENDANT, AND NECESSARY CONNECTION CABLES. ITS DESIGN FOCUSES ON BEST-IN-CLASS ACCURACY AND HIGH AXIS SPEEDS TO OPTIMIZE THROUGHPUT IN AUTOMATED ENVIRONMENTS.
