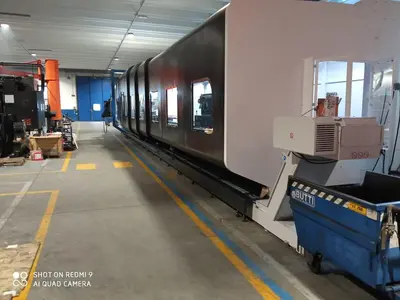

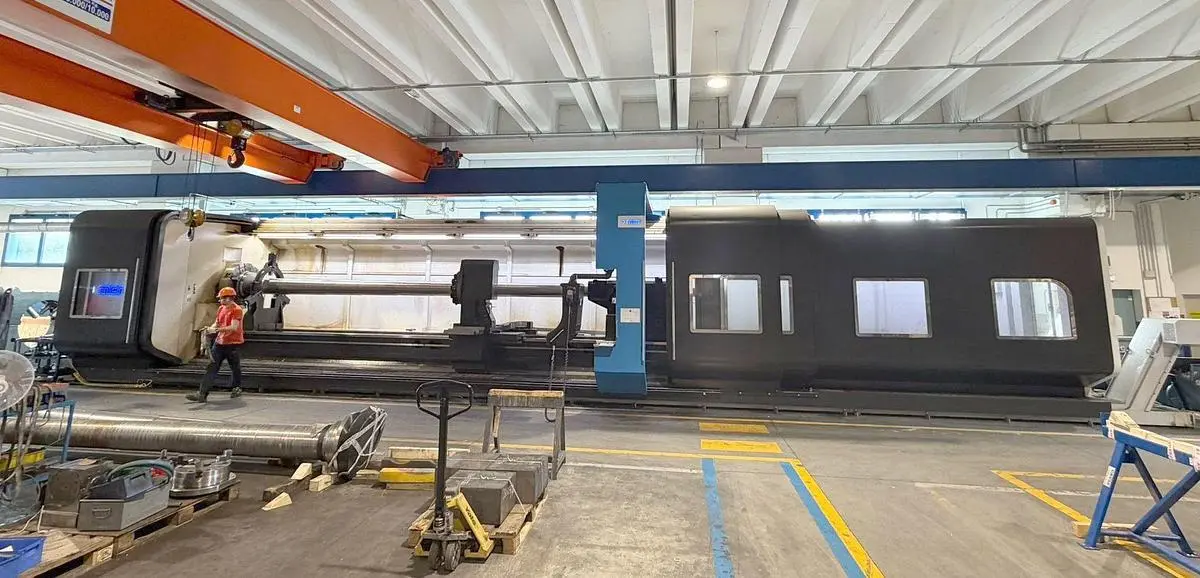

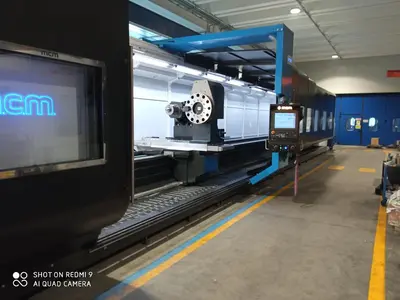

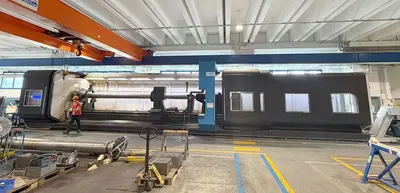

USED 2021 MCM ATL HEAVY-PLUS 900 X 14000
Overview
FANUC 32i-B CNC Control with MANUAL GUIDE
Automatic 12 position turret with live tool stations ( Baruffaldi ) mod. TBMA 320 VDI 60 + C axis
Chip conveyor (Front)
Chip conveyor (Posterior)

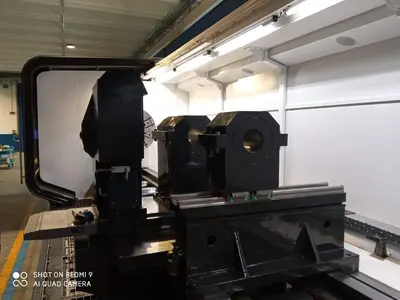

N.2 Steady rest range 600 mm
N. 2 Steady rest range 1,100 mm
Boring bar support
Hydraulic Quill Tailstock
Hydraulic Tailstock Basement Clamping
Motorized Displacement of the Tailstock in the Bed
Portable Electronic Handwheel
COVER FULL ENCLOSURE
Machine built according CE rules
Complete coolant system
The presence of the lower guideway significantly increases the stiffness of the X-axis during large-diameter machining operations. The weight of the cross slide and the turret, together with the forces generated by the cutting process, is supported by this guideway, ensuring greater structural stability of the cross slide and high machining accuracy.
Specs
Manufacturer: MCM
Model: ATL Heavy-Plus 900 x 14000
Year: 2021
Condition: Used
Stock Number: 5654390
Center height: 900 mm
Swing over bed: 1,800 mm
Swing over slide: 1,400 mm
Between centers: 14,000 mm
Capacity between centers: 15,000 / 18,000 kg
Bed width: 1,100 mm
Number of guideways: 3 (2+1)
Spindle bore: 130 mm
Spindle nose: A2-15
Range of speed (auto speed change gear box): 2
Main spindle speed: 0 - 600 rpm
Main motor S1: 60 kW
X axis travel: 1,000 mm
Rapid feed X/Z: 8/10 m/min
Quill diameter: 240 mm (rotating quill)
Quill travel: 300 mm
Quill taper: 80; 1:7
Machine dimensions: 19,800 x 3,600 x 3,000 mm
Machine weight: 52,000 kg
