USED OKAMOTO 612/14 LINEAR

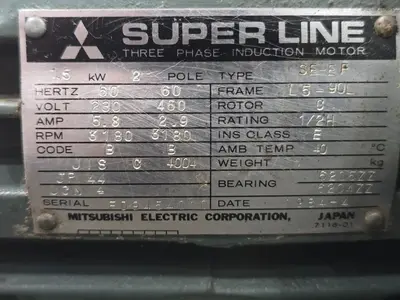

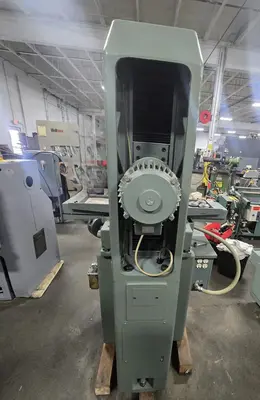

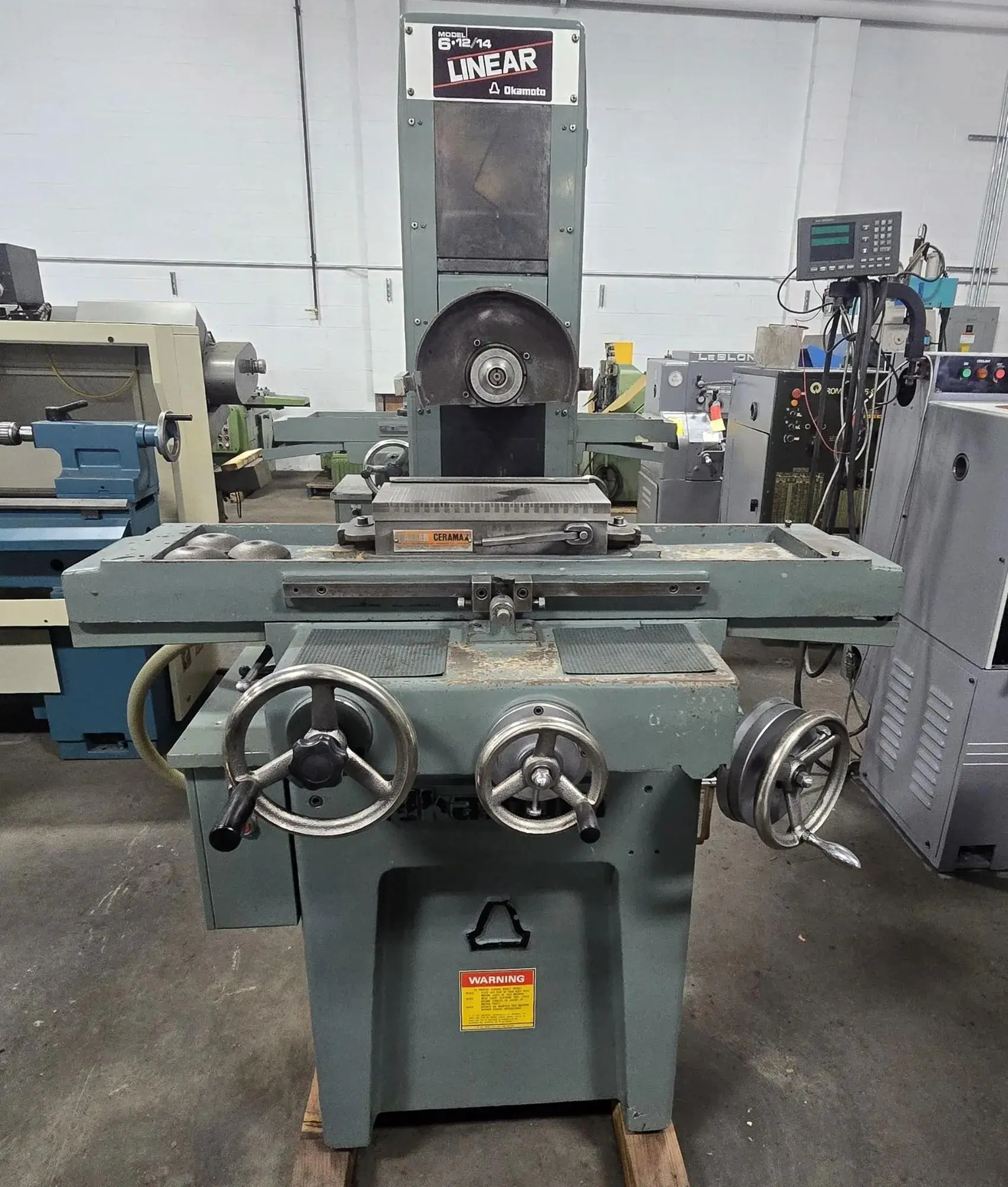

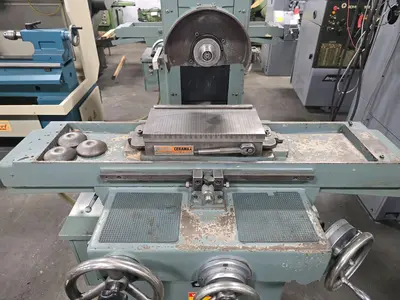

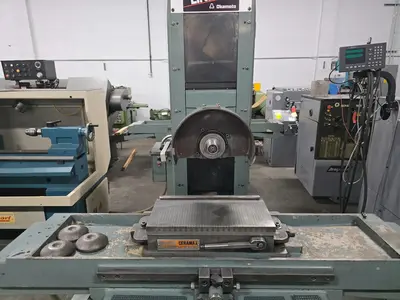

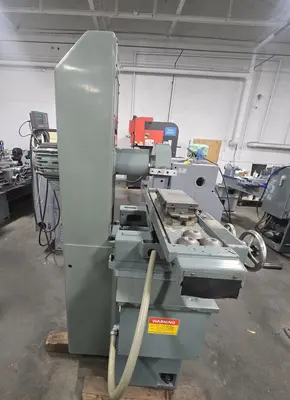

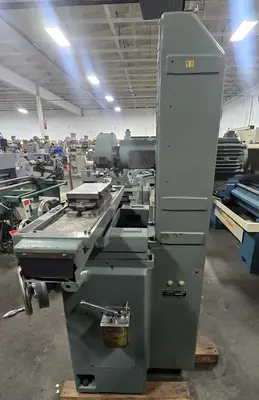

THE OKAMOTO MODEL LINEAR 612/14 IS A MANUAL HIGH-PRECISION SURFACE GRINDER FEATURING A 6" X 12" WORKING TABLE CAPACITY WITH A 14" LONGITUDINAL AND 8" CROSS-TRAVEL CAPACITY. THE MACHINE UTILIZES LINEAR BALL BEARING WAYS FOR SMOOTH LONGITUDINAL MOVEMENT AND MANUAL HAND-FEED CONTROL FOR TABLE AND SADDLE POSITIONING. IT IS POWERED BY A 2 HP SPINDLE MOTOR WITH A SPEED OF 3450 RPM, ACCOMMODATING AN 8" DIAMETER X 1" WIDE GRINDING WHEEL WITH A 1-1/4" BORE. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM DISTANCE OF 18" FROM THE TABLE TO THE SPINDLE CENTER AND A MAXIMUM WORK HEIGHT OF 11" UNDER AN 8" WHEEL. VERTICAL FEED RATES ARE 0.050" PER REVOLUTION AND 0.0002" PER GRADUATION, WHILE CROSS FEED RATES ARE 0.100" PER REVOLUTION AND 0.001" PER GRADUATION. THE UNIT TYPICALLY INCLUDES A 6" X 12" PERMANENT MAGNETIC CHUCK. OVERALL DIMENSIONS ARE APPROXIMATELY 58" X 46" X 71" H, AND THE WEIGHT RANGES FROM 1,650 TO 1,850 LBS.
