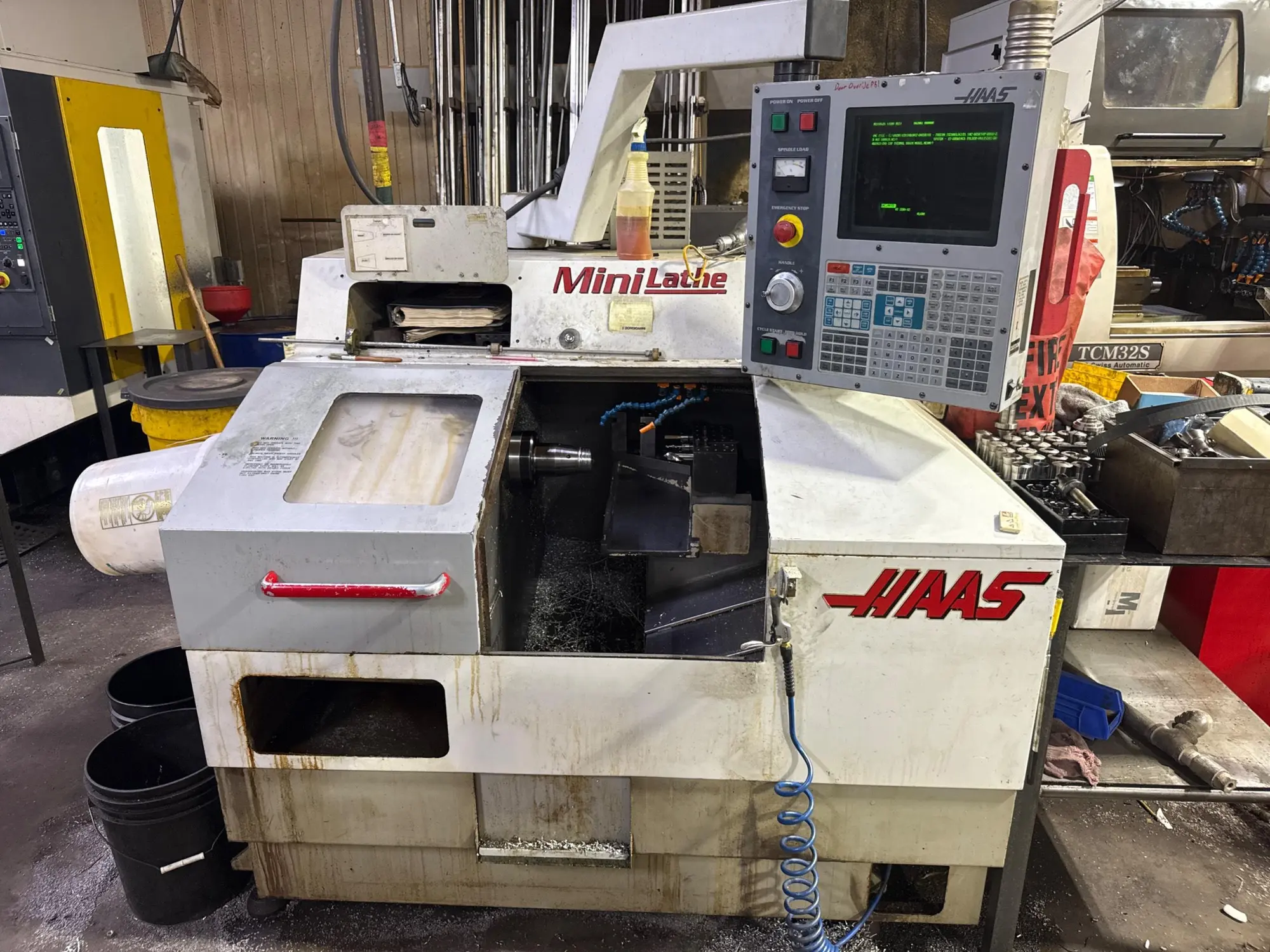

USED 2001 HAAS MINI LATHE

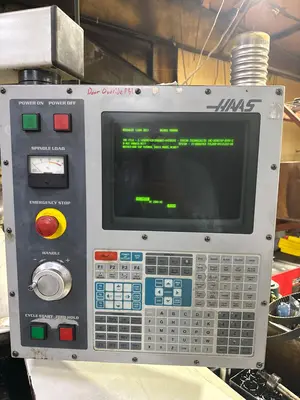

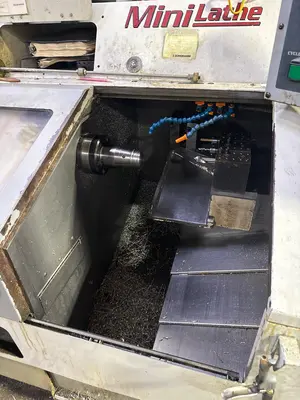

THE HAAS MINI LATHE IS A COMPACT CNC TURNING CENTER DESIGNED FOR HIGH-PRECISION MACHINING IN SMALLER WORKSPACES. IT FEATURES A 7.5 HP MAIN MOTOR CAPABLE OF REACHING SPINDLE SPEEDS UP TO 6,000 RPM. THE MACHINE IS EQUIPPED WITH A 5C COLLET CHUCK SYSTEM AND AN A2-5 SPINDLE NOSE, SUPPORTING A BAR CAPACITY OF 1.06 INCHES. ITS PHYSICAL CAPACITIES INCLUDE A MAXIMUM SWING OF 10.5 INCHES OVER THE FRONT APRON, A MAXIMUM TURNING DIAMETER OF 5.8 INCHES, AND A MAXIMUM MACHINING LENGTH OF 7.99 INCHES. THE AXIS TRAVELS ARE 12 INCHES FOR BOTH THE X AND Z AXES, WITH RAPID TRAVERSE RATES REACHING 650 IPM ON THE Z-AXIS AND 600 IPM ON THE X-AXIS. TOOLING IS MANAGED BY A 10-STATION AUTOMATIC TURRET. THE SYSTEM IS POWERED BY THE HAAS CNC CONTROL, FEATURING UPGRADES SUCH AS A COLOR LCD MONITOR AND STANDARD PROGRAMMING FEATURES LIKE RIGID TAPPING AND VISUAL QUICK CODE. THE TOTAL MACHINE WEIGHT IS APPROXIMATELY 4,000 LBS, WITH A PHYSICAL FOOTPRINT OF ROUGHLY 54 INCHES BY 68 INCHES BY 74 INCHES. ADDITIONAL TECHNICAL FEATURES INCLUDE A 1MB EXTENDED MEMORY AND A HIGH-PERFORMANCE VECTOR DRIVE SYSTEM FOR CONSISTENT TORQUE.
