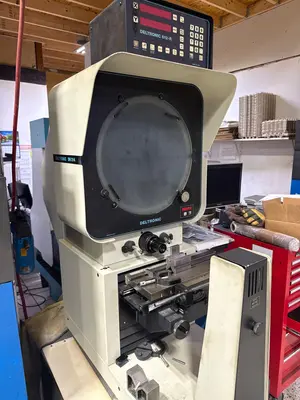

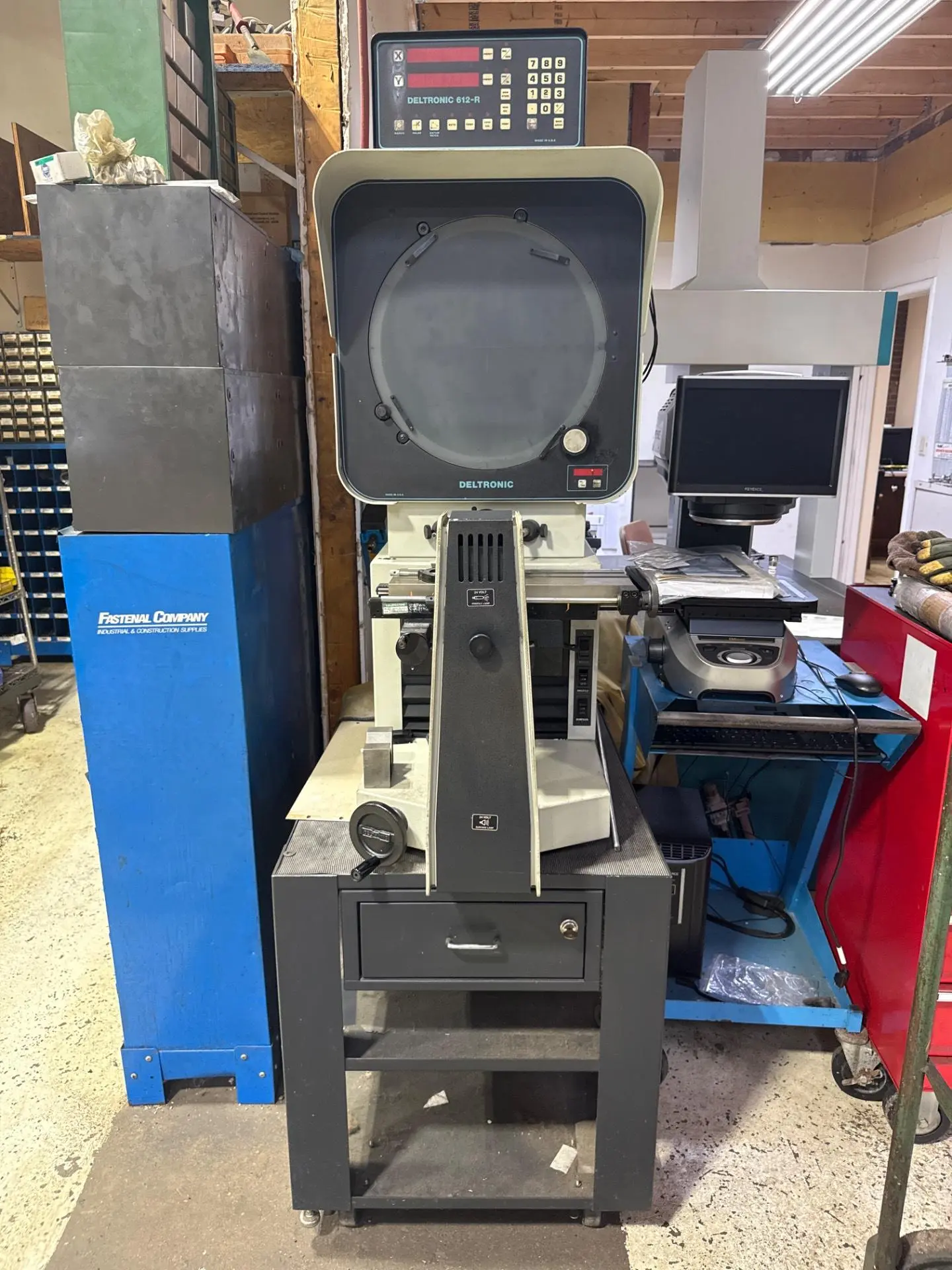

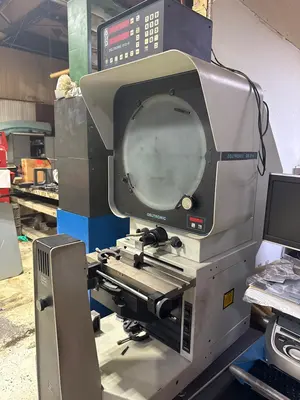

USED DELTRONIC DH214-612R

THE DELTRONIC DH214 IS A 14-INCH HORIZONTAL PROJECTION OPTICAL COMPARATOR DESIGNED FOR PRECISE DIMENSIONAL INSPECTION AND MEASUREMENT. IT FEATURES A 14-INCH DIAMETER GLASS SCREEN THAT PROVIDES A VERTICAL ERECT IMAGE AND IS EQUIPPED WITH A 360-DEGREE CHART ROTATION CAPABILITY. THE SYSTEM TYPICALLY UTILIZES A 15-INCH BY 5-INCH WORK STAGE, OFFERING A LONGITUDINAL X-AXIS TRAVEL OF UP TO 10 INCHES AND A VERTICAL Y-AXIS TRAVEL OF 6 INCHES, WITH A FOCUS ADJUSTMENT RANGE OF 2 TO 3 INCHES. MEASUREMENT ACCURACY IS SUPPORTED BY DIGITAL READOUT SYSTEMS, SUCH AS THE DELTRONIC MPC-5 OR 612R, WHICH PROVIDE PROGRAMMABLE GEOMETRIC FUNCTIONS AND EDGE DETECTION CAPABILITIES. THE UNIT EMPLOYS BOTH PROFILE AND SURFACE ILLUMINATION, OFTEN FEATURING HALOGEN LIGHT SOURCES AND FIBER OPTIC SURFACE REFLECTION FOR ENHANCED VISIBILITY OF PART FEATURES.
