USED 2018 KSI TCM32S

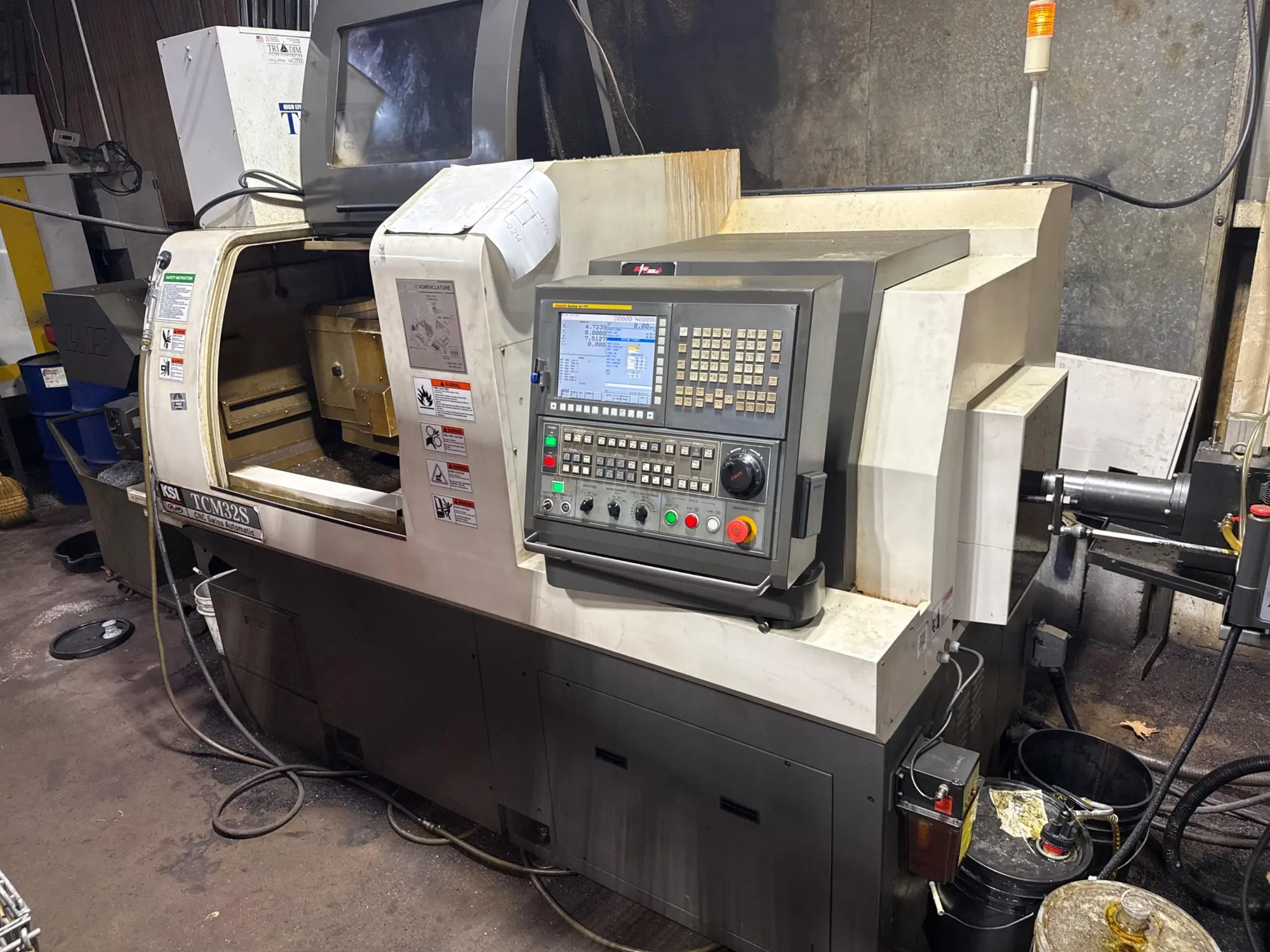

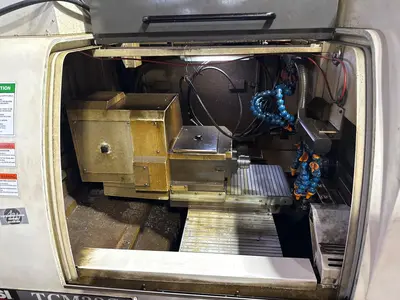

THE 2018 KSI TCM32S IS A 7-AXIS CNC SWISS-TYPE SLIDING HEADSTOCK TURNING CENTER DESIGNED FOR HIGH-PRECISION, HIGH-VOLUME PRODUCTION OF COMPLEX SMALL-DIAMETER COMPONENTS. BUILT AROUND A RIGID CAST IRON CONSTRUCTION WITH REXNORD BOSCH LINEAR GUIDEWAYS AND 25MM BALLSCREWS, THE MACHINE DELIVERS EXCEPTIONAL STABILITY AND REPEATABILITY ACROSS DEMANDING PRODUCTION ENVIRONMENTS.

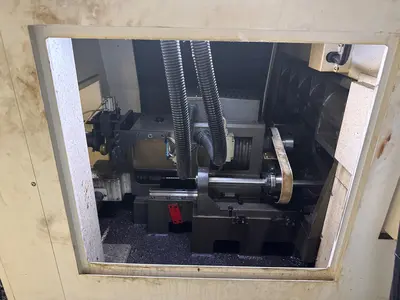

THE MAIN SPINDLE FEATURES A 43MM (1.692") BORE DIAMETER WITH A 10 HP MOTOR CAPABLE OF 8,000 RPM, PAIRED WITH A DRIVEN ROTARY GUIDE BUSHING AND TF44 COLLET SYSTEM. THE SUB-SPINDLE OFFERS A 32MM (1.25") BORE AT 3 HP AND 8,000 RPM, ENABLING COMPLETE PART MACHINING IN A SINGLE SETUP. BOTH SPINDLES PROVIDE FULL C-AXIS POSITIONING TO 0.001° RESOLUTION.

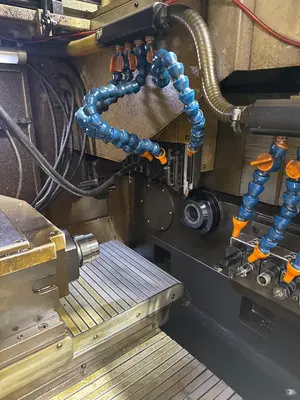

THE MACHINE OFFERS 26 TOOL STATIONS — INCLUDING 5 OD TURNING TOOLS, 4 CROSS LIVE TOOLS, A 5-STATION Y-AXIS FIXED TOOL BLOCK, AND DEDICATED BACK-END LIVE AND FIXED TOOLING — SUPPORTING SIMULTANEOUS 5-AXIS PLUS 2-ROTARY AXIS MACHINING. Z1 AND Z2 AXIS STROKES MEASURE 300MM EACH, WITH X1 AT 70MM AND X2 AT 403MM.

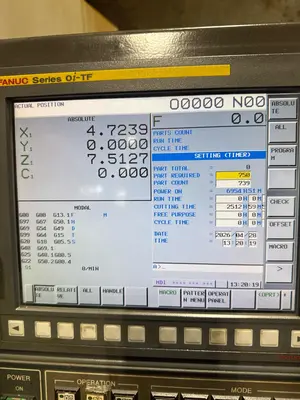

CONTROL IS PROVIDED BY A FANUC OI-TF DUAL-PATH CNC FEATURING A 10.4" COLOR DISPLAY, EMBEDDED ETHERNET, USB CONNECTIVITY, AND 128 TOOL OFFSETS. SOFTWARE FEATURES INCLUDE INTELLIGENT CHUCKING (G300), HIGH PRECISION MODE (M100), RAPID TOOL CHANGE, AND VARIABLE FREQUENCY TURNING (VFT) FOR ENHANCED CHIP CONTROL.
