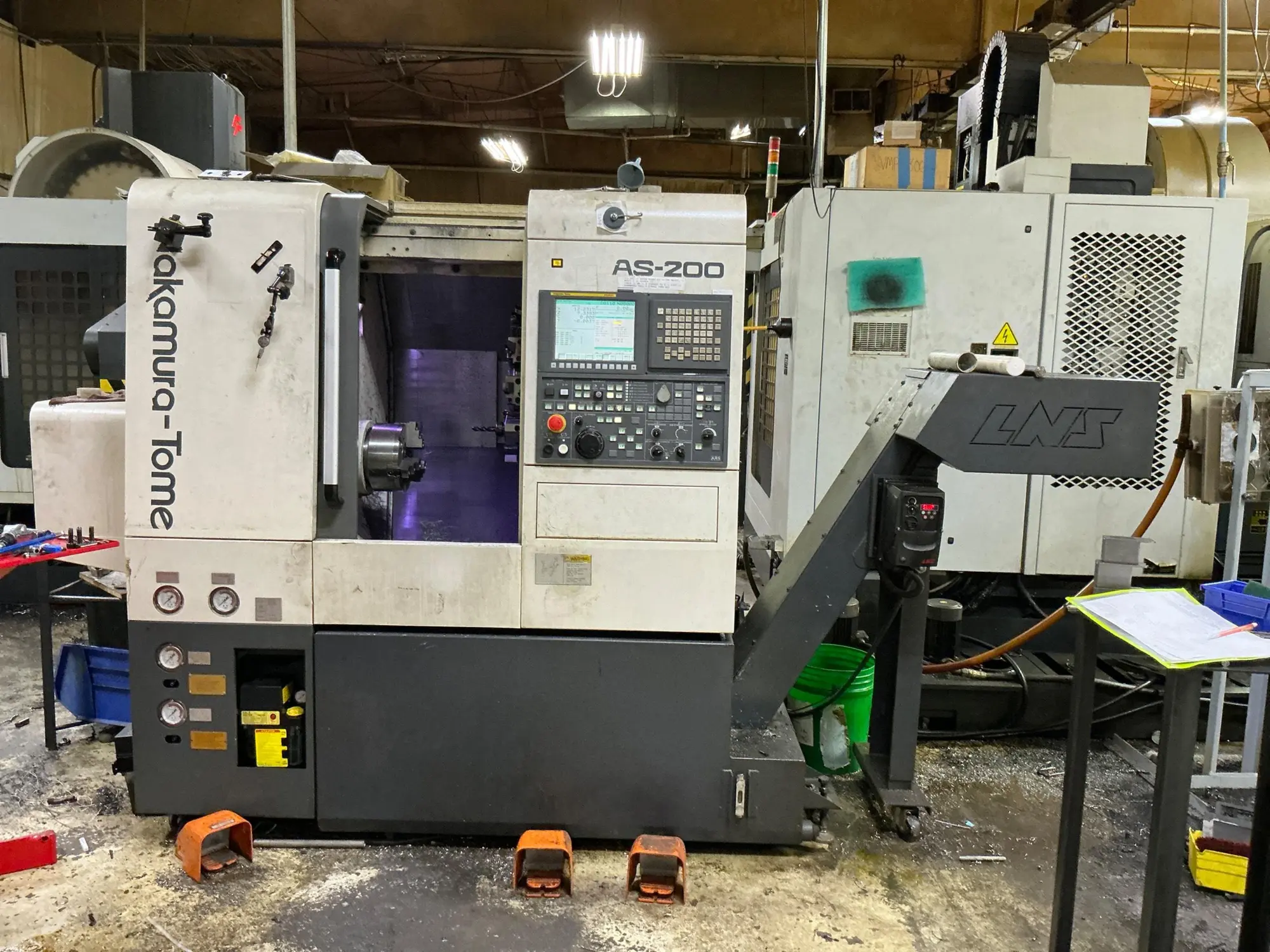

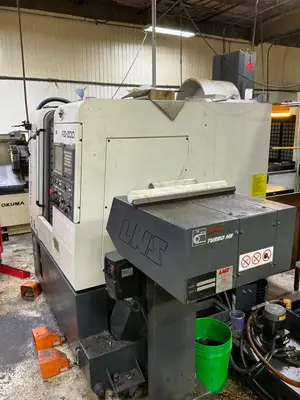

USED 2014 NAKAMURA TOME AS-200

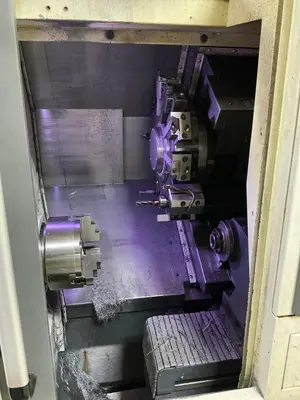

THE NAKAMURA-TOME AS-200 IS A COMPACT, HIGH-PERFORMANCE TURNING CENTER DESIGNED FOR MULTITASKING OPERATIONS, COMBINING TURNING, MILLING, AND OFF-CENTER MACHINING IN A SINGLE SETUP. IT FEATURES A ROBUST MAIN SPINDLE WITH A MAXIMUM TURNING DIAMETER OF 13.380" AND A TURNING LENGTH OF 11.810", POWERED BY A 20 HP MOTOR CAPABLE OF SPEEDS UP TO 4,500 RPM. THE MACHINE IS EQUIPPED WITH AN 8.000" CHUCK AND SUPPORTS BAR STOCK UP TO 2.550" IN DIAMETER. THE PRIMARY TOOL CARRIER IS A DODECAGONAL TURRET, ALLOWING FOR UP TO 12 TURNING AND 12 ROTARY TOOLS, WITH THE ROTARY SPINDLE DELIVERING 7.5 HP AT 6,000 RPM FOR DRIVEN TOOL OPERATIONS. THE AS-200 OFFERS 4-AXIS CONTROL (X, Y, Z, AND C), ENABLING COMPLEX PART GEOMETRIES AND SIMULTANEOUS MILLING AND TURNING. AXIS TRAVELS ARE 8.960" (X), 3.220" (Y), AND 12.600" (Z), WITH RAPID TRAVERSE RATES OF 945 IPM ON ALL LINEAR AXES FOR FAST CYCLE TIMES. THE Y-AXIS STROKE OF 3.220" SUPPORTS OFF-CENTER MILLING AND DRILLING, ENHANCING VERSATILITY FOR INTRICATE WORKPIECES. WITH A SINGLE MAIN SPINDLE AND THE ABILITY TO USE ONE CUTTING TOOL AT A TIME, THE AS-200 IS OPTIMIZED FOR PRECISION AND EFFICIENCY IN HIGH-MIX, LOW-VOLUME PRODUCTION ENVIRONMENTS. ITS COMPACT FOOTPRINT AND INTEGRATED Y-AXIS MILLING MAKE IT IDEAL FOR SHOPS SEEKING ADVANCED MULTITASKING CAPABILITIES IN A SPACE-SAVING DESIGN.
