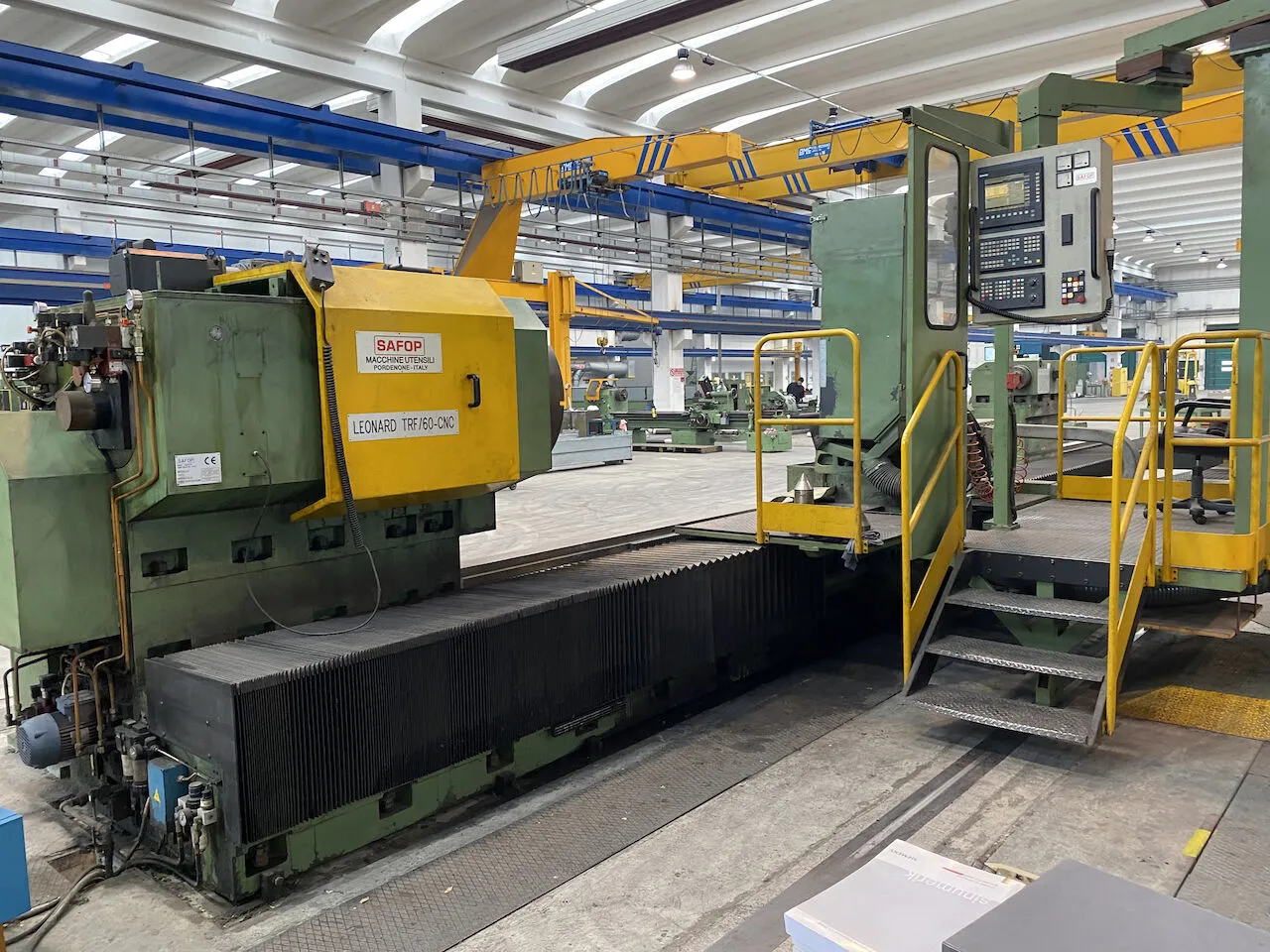

USED SAFOP LEONARD TRF60 CNC

Centres distance: 10.000 mm0,39 in
Centres height: 900 mm35,43 in
Longitudinal (Z): 10000 mm393,70 in
Cross (X): 550 mm21,65 in
Max grinding diameter: 1300 mm51,18 in
Max grinding lenght: 10000 mm393,70 in
CNC: Siemens 840D
Rotating speed: (3 gamme) 400 Rpm
Spindle power: 60 Kw
C axis: continuo
Quill diameter: 230 mm9,06 in
Quill stroke: 290 mm11,42 in
Taper: ASA5”
External spindle power: 20 Kw
External spindle speed: 1200 Rpm
Open steadies: 2 lunette a C ø100-500mm
Tooling included: testina foratura radiale 56 testine passo 32mm
