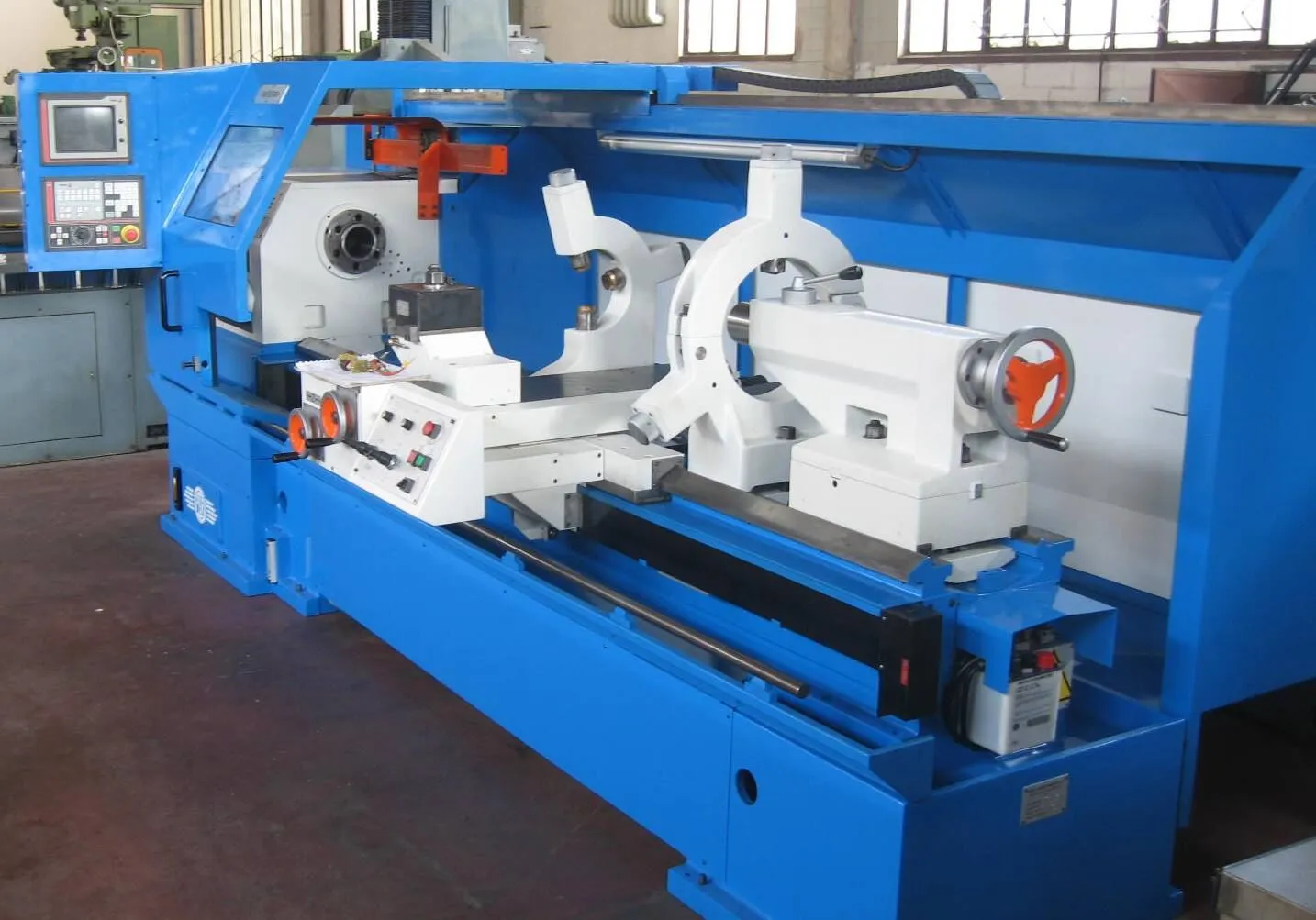

USED PBR T35-S SNC 350X2000MM

Max bar working diameter: 105
Max swing on the bed: 425 mm16,73 in
Max working lenght: 2000 mm78,74 in
Bed width: 450 mm17,72 in
Guide-ways number: 2 mm0,08 in
Max weight between centres: 3000 Kg
Max weight on steadies: 4000 Kg
CNC: FAGOR T800
Drives: NUM
Max rotation speed: 0-2000 rpm
Spindle nose: Cam Lock 8”
Spindle hole: 105 mm4,13 in
Internal bearing diameter: 130 mm5,12 in
Max power: 17 Kw
Max torque: 2440 Nm
Gearbox: due gamme meccaniche
Quill diameter: 115 mm4,53 in
Quill stroke: 250 mm9,84 in
Taper: MK5
Axis stroke X: 450 mm17,72 in
Rapid feed X: 1-6 m/min39,37-236,22 ipm
Axis stroke Z: 2000 mm78,74 in
Rapid feed Z: 1-6 m/min39,37-236,22 ipm
Positions number: CAPTO C6
Total power supply: 19 Kw
Machine total weight: 5650 Kg
Floor space: 4700x2250x1815 mm185,04x88,58x71,46 in
Open steadies: 1
Closed steadies: 1
Autocentering chuck: 1 ø315mm
Platform: 1 ø400mm
Protections: protezione integrale
Availability: pronta
