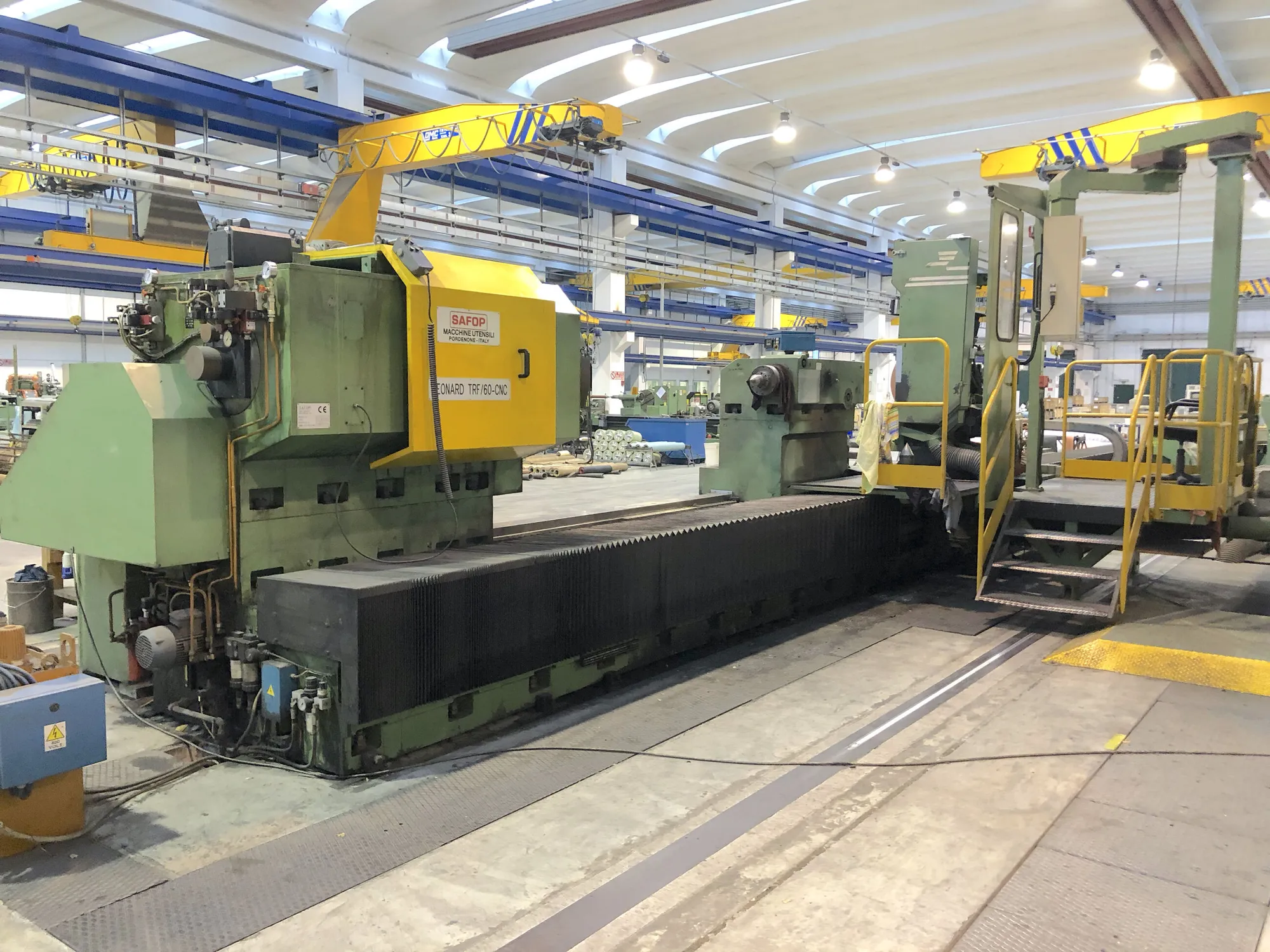

USED SAFOP LEONARD TRF60 CNC

Guide-ways number: 4
Max diameter on bed: 1800 mm70,87 in
Max diameter on cross-slide: 1300 mm51,18 in
Max working lenght: 10000 mm393,70 in
Max weight between centres: 18000 Kg
Max weight on steadies: 10.000 (cad) Kg
CNC: SIEMENS 840D
Accuracy (C axis): 0,001 °
C axis speed: 5 Rpm
Chuck diameter: 800 mm31,50 in
Spindle hole: 160 mm6,30 in
Notes: Torretta per Tornitura, Apparecchio per Nastratura, Foratura, Testa di foratura Multipla a 50 punte, 2 Lunette pesanti, 2 Lunette leggere
Quill diameter: 230 mm9,06 in
Quill stroke: 290 mm11,42 in
Taper: ”
Rapid feed B: 0,45 m/min17,72 ipm
Grinding head attachment: ø1300mm
Open steadies: 2
Platform: ø800mm
Carriage: Carro per testa di tornitura, testa di rettifica, testa di foratura, testa nastratura
