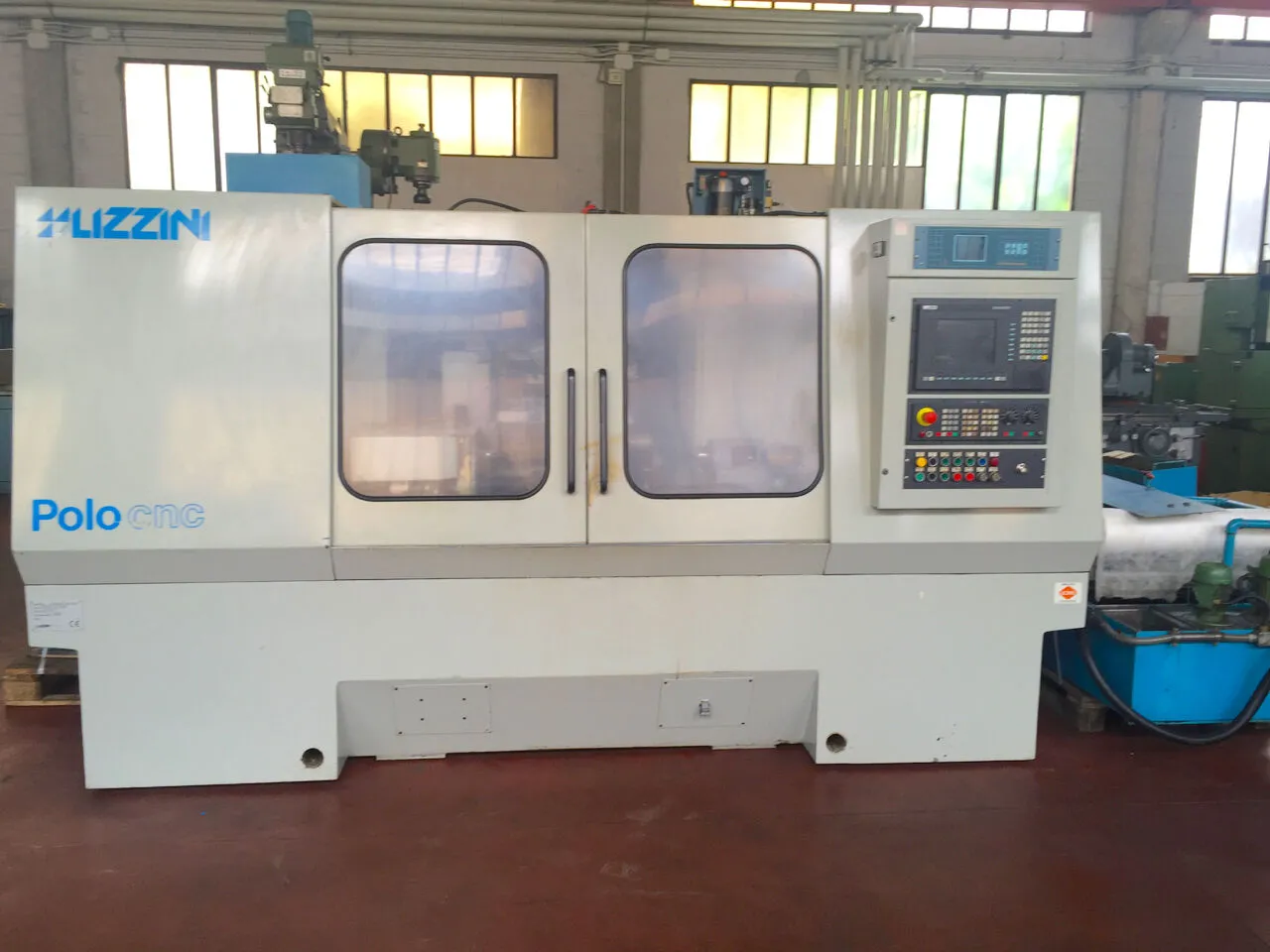

USED LIZZINI POLO 10 CNC

Centres distance: 1000 mm39,37 in
Centres height: 150 mm5,91 in
Longitudinal (Z): 1150 mm45,28 in
Cross (X): 330 mm12,99 in
Max grinding lenght: 1000 mm39,37 in
Max grinding diameter: 300 mm11,81 in
Stroke: 1150 mm45,28 in
Cross speed: 12000 mm/min472,4400 ipm
Max workpiece weight: 100 Kg
CNC: SIEMENS SINUMERIK 840D
Measuring system: righe ottiche
External spindle power: 7,5 Kw
Accuracy (B axis): 0,0001 °
Wheel band thickness: 80 mm3,15 in
Max wheel diameter: 508 mm20,00 in
Hole diameter: 203 mm7,99 in
Rotating speed: 10-650 Rpm
Taper: MK4
Total power supply: 40 HP
Filtration unit: si
Housing: integrale
