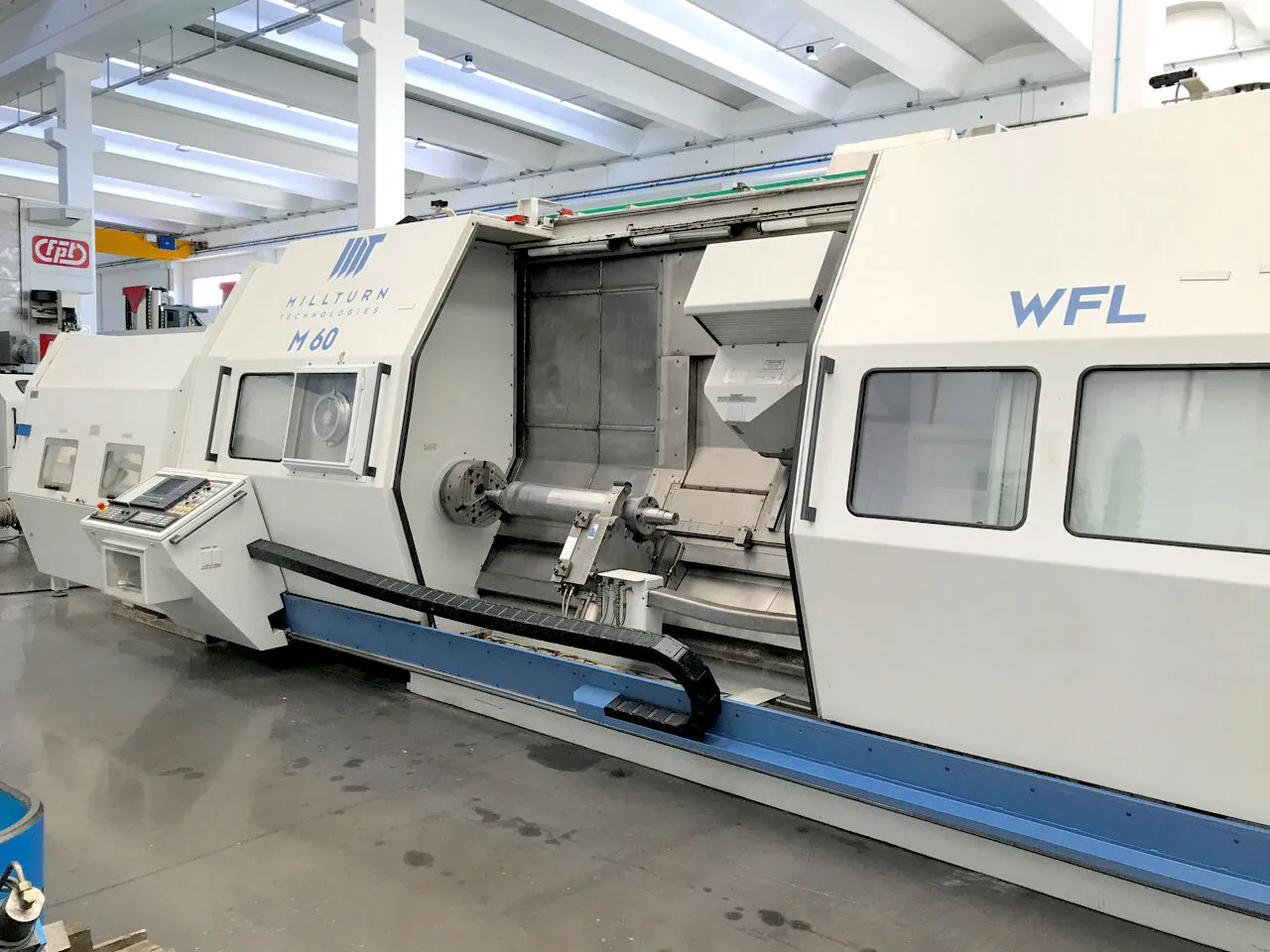

USED WFL MILLTURN M60

Max swing diameter: 670 mm26,38 in
Max swing on the saddle: 480 mm18,90 in
Max working lenght: 3000 mm118,11 in
Max weight between centres: 2500 Kg
CNC: SIEMENS 840D
Max rotation speed: 3300 rpm
Spindle nose: ASA11”
Max torque: 1830/2748 Nm
Accuracy (C axis): 0,001 °
C axis speed: 20 Rpm
Chuck diameter: 400 mm15,75 in
Spindle hole: 160 mm6,30 in
Max tool diameter: 110 mm4,33 in
Max tool diam withount adiacent tools: 250 mm9,84 in
Max tool length: 500 mm19,69 in
Positions: 72
Spindle taper: CAPTO C8
B axis working capacity: -105/+90 °
Accuracy (B axis): 0,001 °
Spindle speed: 4000 rpm
Spindle power: 17/25 Kw
Spindle torque: 300 Nm
Axis stroke X: 700 mm27,56 in
Rapid feed X: 15 m/min590,55 ipm
Axis stroke Z: 3070 mm120,87 in
Rapid feed Z: 20 m/min787,40 ipm
Axis stroke Y: -225/+225 mm-8,86/+8,86 in
Rapid feed Y: 12,5 m/min492,13 ipm
Max power requirement: 140 Kw
Machine total weight: 36000 Kg
Floor space: 12000x3900x3300 mm472,44x153,54x129,92 in
Hydr. steady rest: SMW Autoblock 310/500mm
Fixed toolholders: circa 140 utensili Capto C8
Autocentering chuck: SMW Autoblock 400mm 3 griffe
Chip conveyor: si
Workpiece touch probe: 2 sonde Renishaw
Coolant pump: alta pressione 80 Bar
Protections: integrale
Mist extractor: Fibaron
Availability: pronta
Available in stock: si
