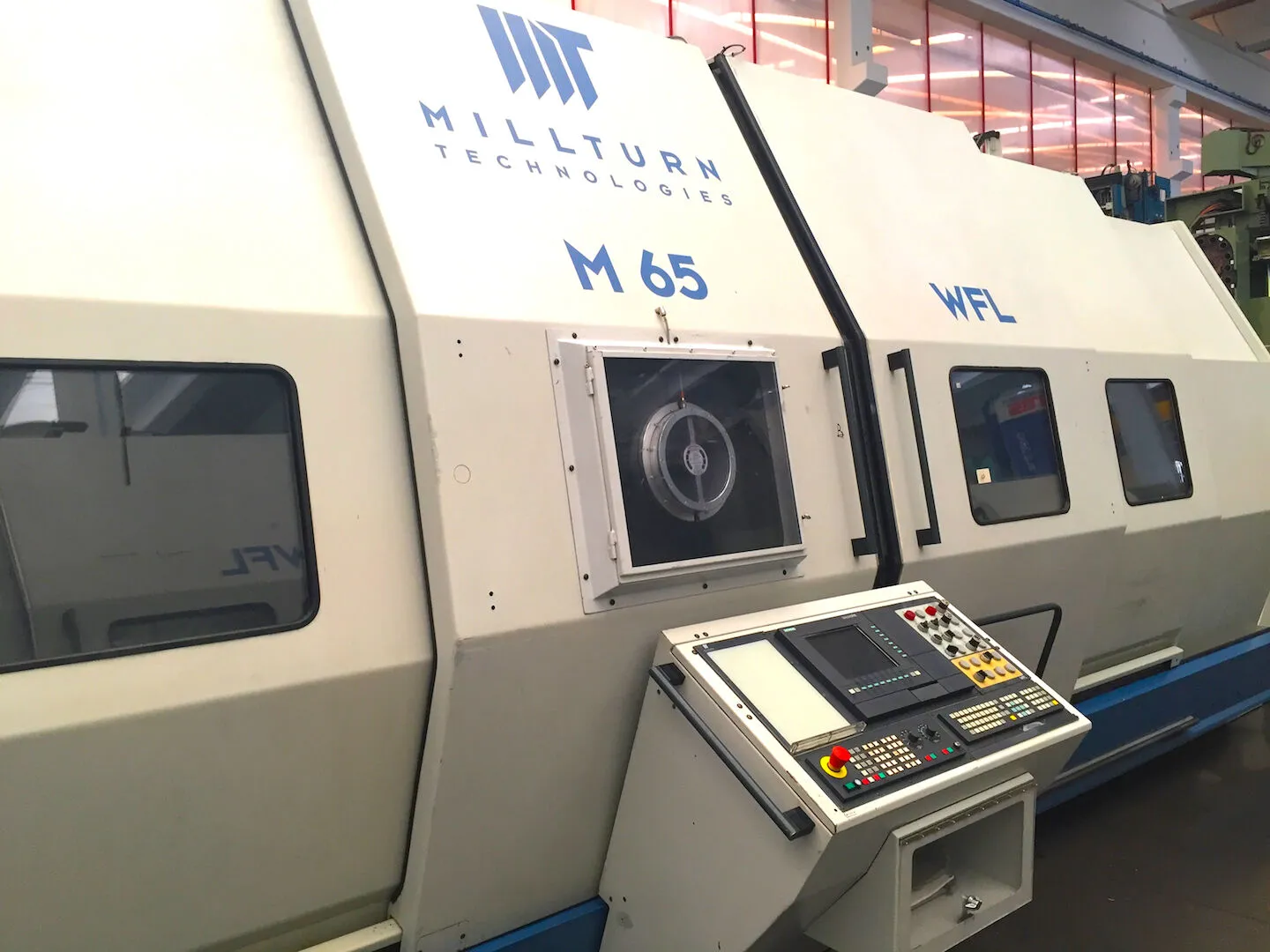

USED WFL MILLTURN M65

Max swing on the saddle: 640 mm25,20 in
Max swing diameter: 820 mm32,28 in
Max working lenght: 4500 mm177,17 in
Max weight between centres: 3500 Kg
CNC: SIEMENS 840D
Max rotation speed: 2600 rpm
Spindle nose: ASA15”
Spindle hole: 165 mm6,50 in
Internal bearing diameter: 240 mm9,45 in
Chuck diameter: 500 mm19,69 in
Max power: 60 Kw
Max torque: 2748 Nm
Accuracy (C axis): 0,001 °
Max tool diameter: 110 mm4,33 in
Max tool diam withount adiacent tools: 250 mm9,84 in
Max tool length: 900 mm35,43 in
Positions: 108
Spindle taper: CAPTO C8
B axis working capacity: +110/-90 °
Accuracy (B axis): 0,001 °
Spindle speed: 4000 rpm
Spindle power: 17/25 Kw
Spindle torque: 300 Nm
Axis stroke X: 720 mm28,35 in
Rapid feed X: 15 m/min590,55 ipm
Axis stroke Z: 4650 mm183,07 in
Rapid feed Z: 20 m/min787,40 ipm
Axis stroke Y: (500) -200/+300 mm(19,69) -7,87/+11,81 in
Rapid feed Y: 12,5 m/min492,13 ipm
Quill diameter: 180 mm7,09 in
Quill stroke: 200 mm7,87 in
Taper: MK6
Max power requirement: 145 Kw
Machine total weight: 36000 Kg
Floor space: 13500x4200x3500 mm531,50x165,35x137,80 in
Hydr. steady rest: SMW Autoblock 460/650
Fixed toolholders: circa 150 utensili Capto C8
Autocentering chuck: SMW Autoblock 3 griffe 500mm
Chip conveyor: si
Workpiece touch probe: 3 sonde Renishaw
Coolant pump: alta pressione 80Bar
Protections: carenatura integrale
Mist extractor: Fibaron
Availability: pronta
Available in stock: si
