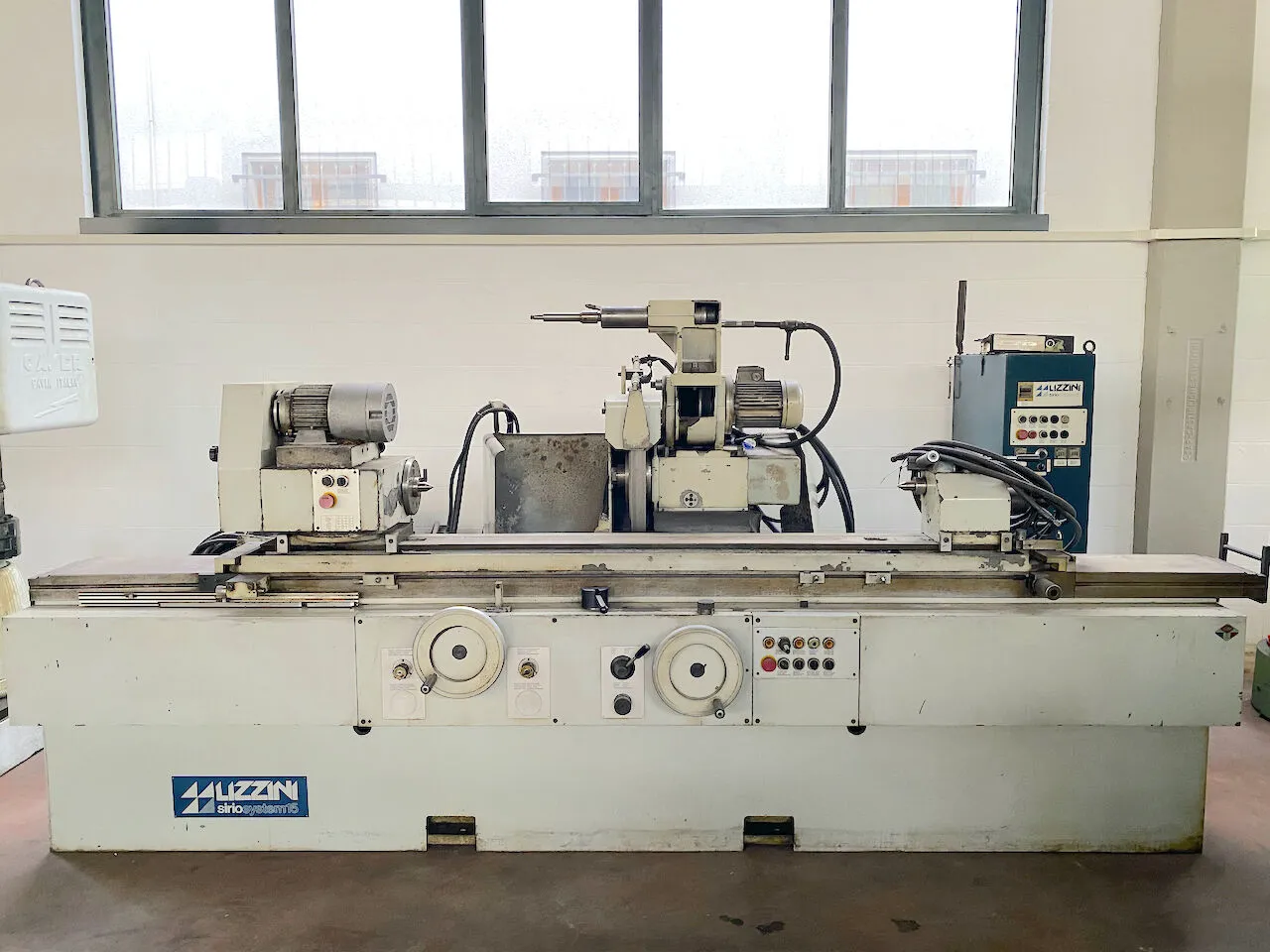

USED LIZZINI SIRIO SYSTEM 15

Centres distance: 1500 mm59,06 in
Centres height: 150 mm5,91 in
Longitudinal (Z): 1570 mm61,81 in
Max grinding lenght: 1525 mm60,04 in
Max grinding diameter: 300 mm11,81 in
Max internal diameter: 150 mm5,91 in
Stroke: 1570 mm61,81 in
Cross speed: 0,1 - 6 mm/min0,0039 - 0,2362 ipm
Tilt: 6 °
External spindle power: 11 Kw
Notes: orientabile 45°
Wheel band thickness: 70 mm2,76 in
Max wheel diameter: 450 mm17,72 in
Hole diameter: 127 mm5,00 in
Rotating speed: 650 Rpm
Tilt: 90 °
Total power supply: 15 HP
Machine total weight: 5400 Kg
Tooling included: lunette, flange, vasca filtro a carta, apparecchio epr interni
Open steadies: 2
Closed steadies: 1
Filtration unit: vasca filtro a carta
Availability: pronta
Available in stock: si
Floor space: 4660x1950 mm183,46x76,77 in
