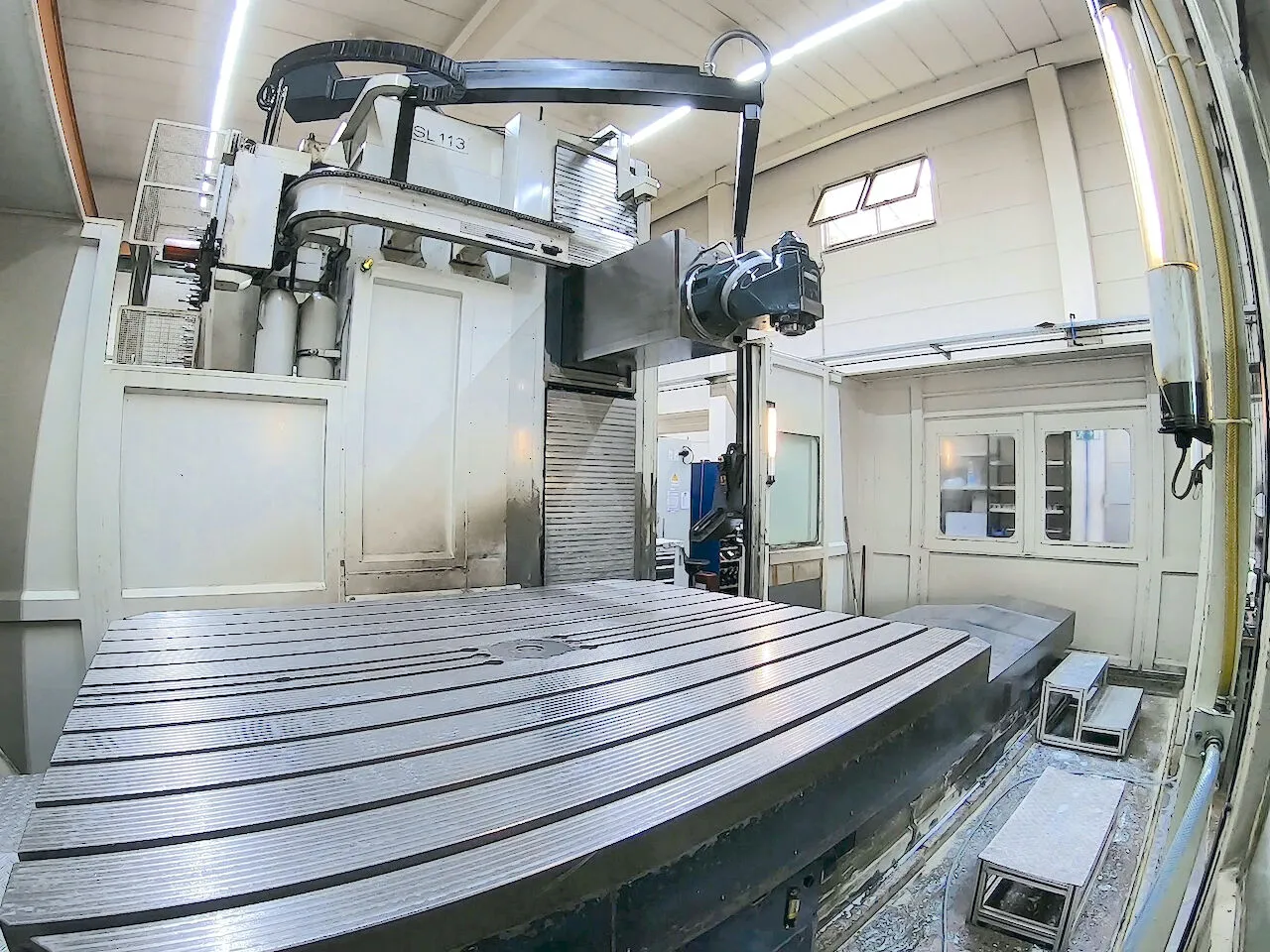

USED PARPAS SL113

Longitudinal (X): 3000 mm118,11 in
Vertical (Y): 1720 mm67,72 in
Cross RAM (Z): 1250 mm49,21 in
CNC: Heidenhain TNC430
Spindle power: 37 Kw
Gearbox: 6-959 / 950-4000Rpm
Rotating speed: 4000 Rpm
Taper: ISO50
Rapid X: 12 m/min472,44 ipm
Rapid Y: 12 m/min472,44 ipm
Rapid Z: 12 m/min472,44 ipm
Positions: 100
Max tool diameter: 120 mm4,72 in
Max diam with free adiacent space: 250 mm9,84 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 20 Kg
Surface: 2500x2000 mm98,43x78,74 in
Accuracy (B axis): 0,001 °
Capacity: 10.000 Kg
Type: TI01 birotativa indexata
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: 144x2,5 °
Max speed: 4000 Rpm
Max power: 37 Kw
Coolant: CTS 20 Bar
Floor space: 7400x6750x4300 mm291,34x265,75x169,29 in
Machine total weight: 34.000 Kg
High Pressure: 20Bar
Filtration unit: Losma
Chiller: Si
Workpiece touch probe: RENISHAW RMP60
Tool presetter: si
Housing: Perimetrale con portelloni scorrevoli
Chip conveyor: si
Available under power: Si
