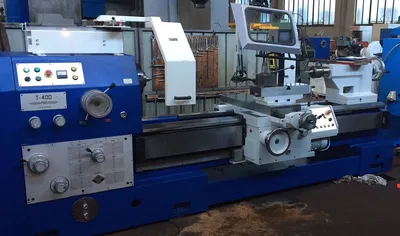

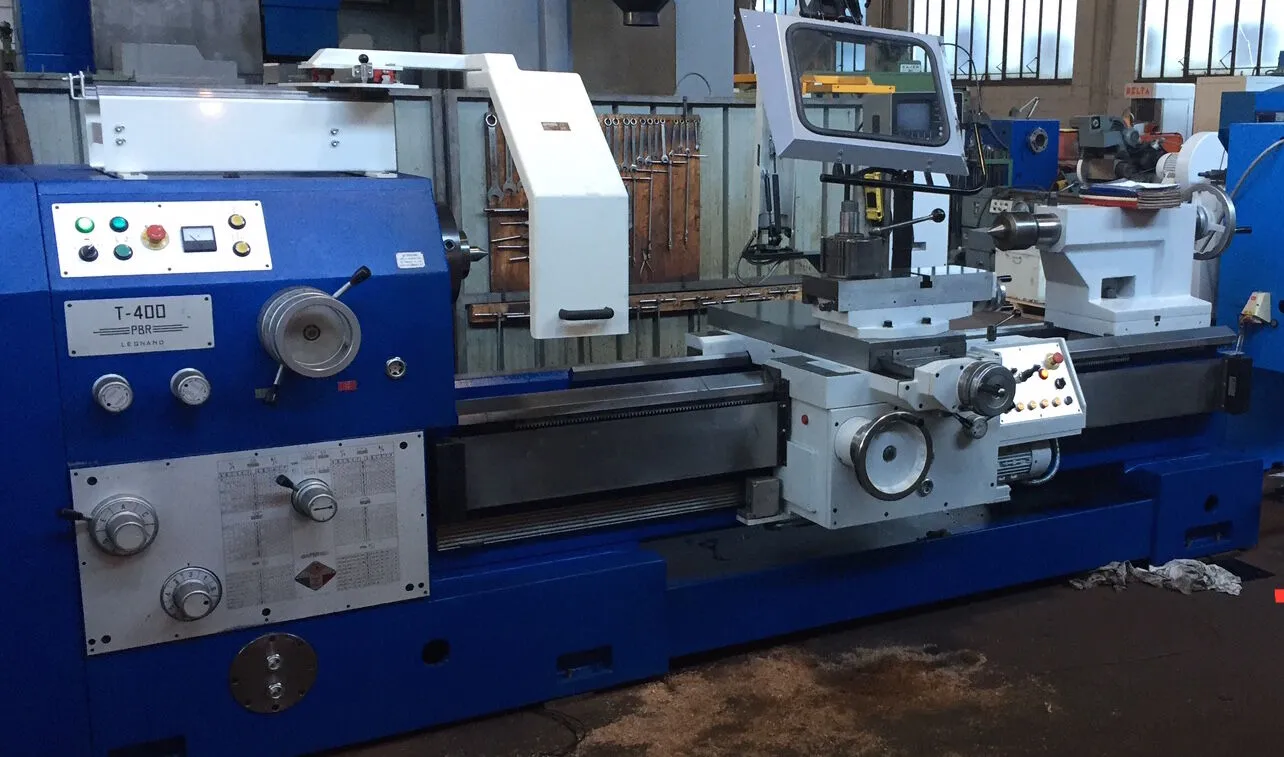

USED PBR T400

Centres distance: 2000 mm78,74 in
Centres height: 400 mm15,75 in
Max diameter on the bed: 800 mm31,50 in
Max swing on saddle: 520 mm20,47 in
Max swing in the gap: 1100 mm43,31 in
Bar passage: 130 mm5,12 in
Notes: corsa carrino 340 mm
Max weight between centres: 3500 Kg
Max weight on steadies: 4500 Kg
Bed width: 520 mm20,47 in
Spindle power: 25 Kw
Spindle speed: 5/1000 Rpm
Spindle taper: cam-lock 11”
Spindle torque: 560 Nm
Notes: Multifix
Quill diameter: 115 mm4,53 in
Quill stroke: 380 mm14,96 in
Taper: cm6
Digital read out (DRO): e assi elesta
Autocentering chuck: 500
Protections: si
Availability: pronta
Available in stock: si
Available under power: si
