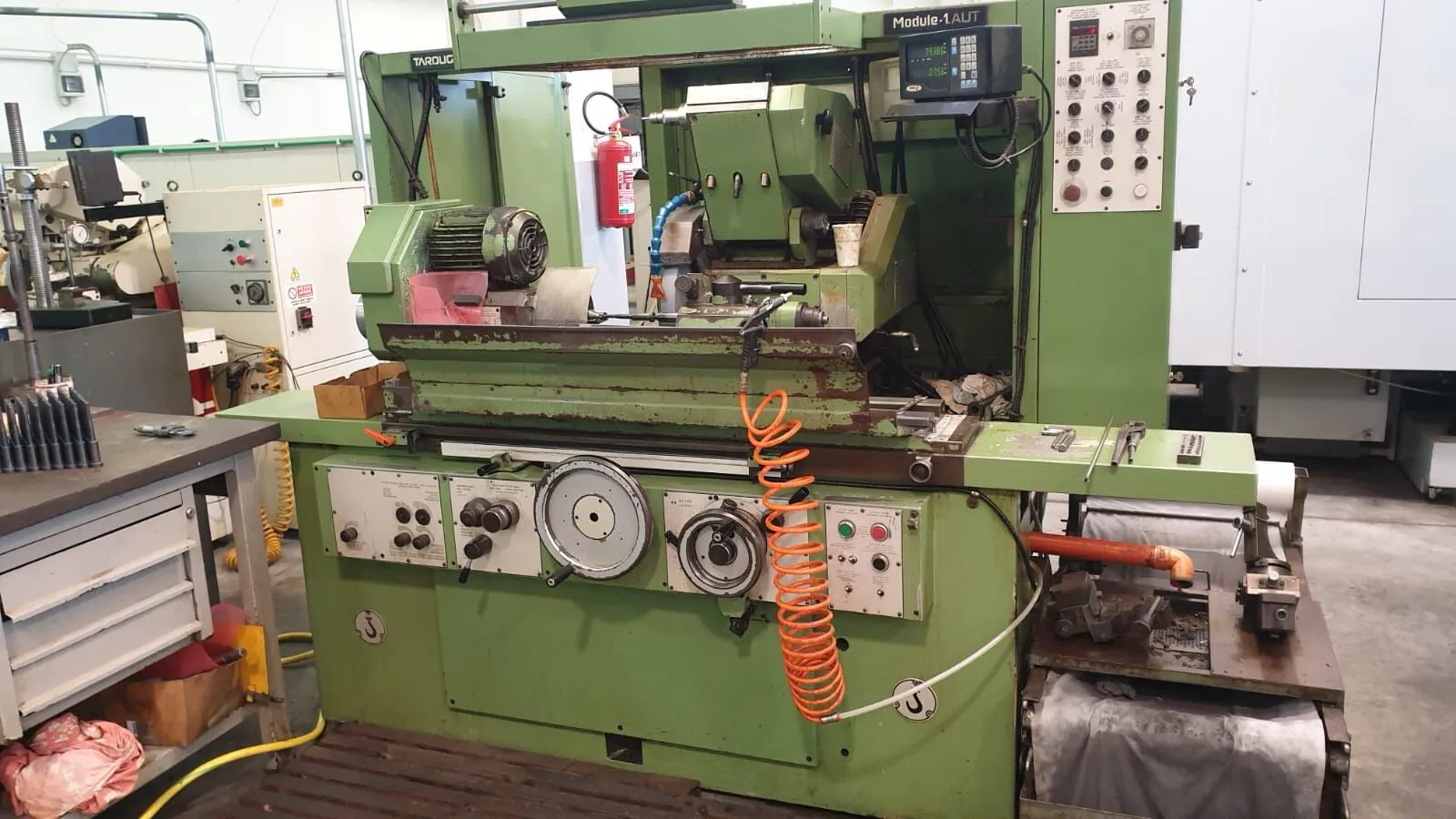

USED RIBON MODULE 1 AUT

Centres distance: 600 mm23,62 in
Centres height: 180 mm7,09 in
Max grinding diameter: 360 mm14,17 in
Taper: 4
Spindle power: 0,55 Kw
Rotating speed: 35/310 Rpm
Taper: 3
Quill stroke: 33 mm1,30 in
Cross speed: 0-500 mm/min0,0000-19,6850 ipm
Cross: 0-0,025 mm/min0,0000-0,0010 ipm
Wheel band thickness: 60 mm2,36 in
Max wheel diameter: 406 mm15,98 in
External spindle power: 4 Kw
External spindle speed: 1500/1750 Rpm
Measuring system: visualizzatore
Total power supply: 9,4 HP
Machine total weight: 2550 Kg
Digital read out (DRO): Si
