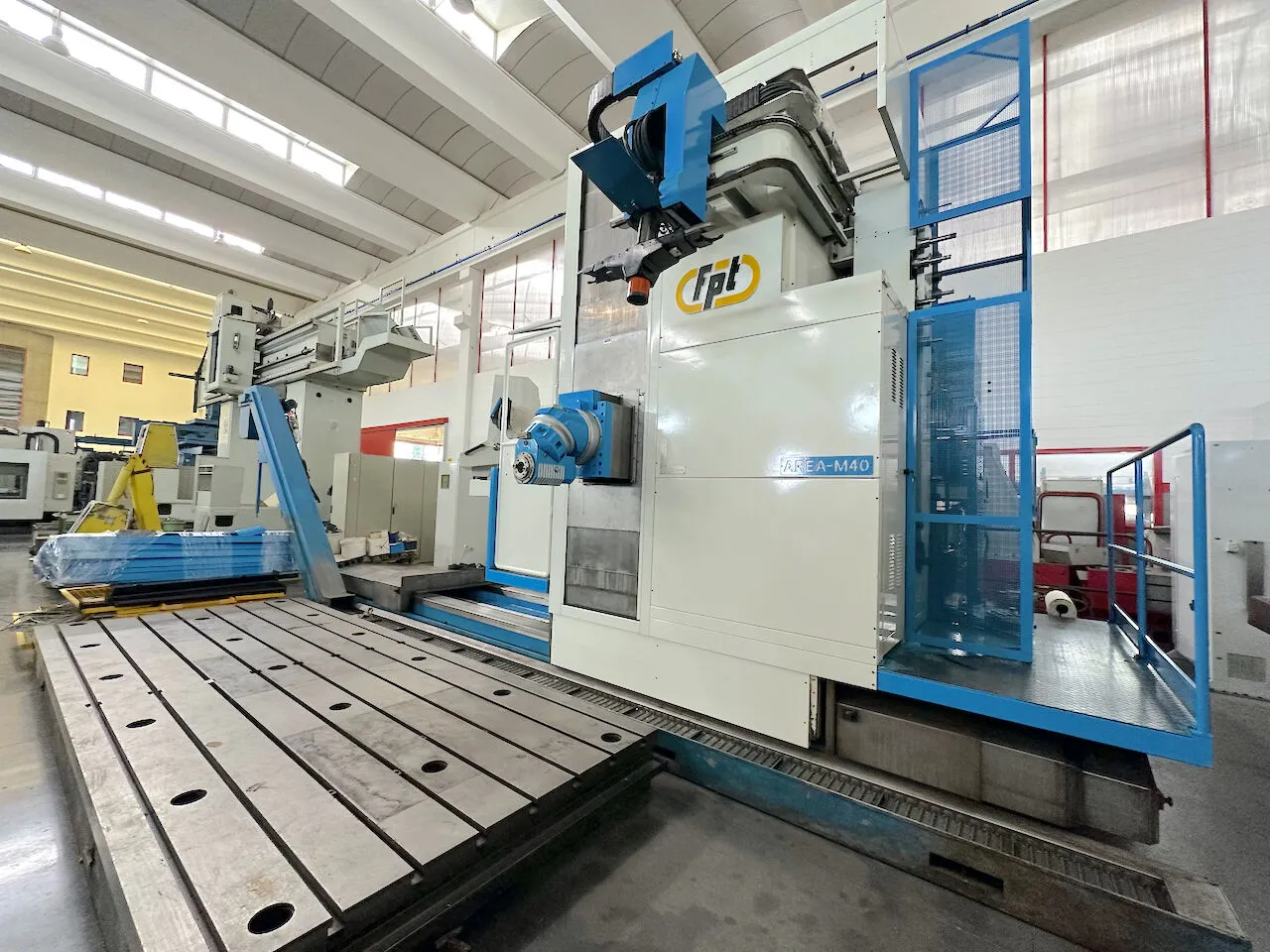

USED FPT AREA M40

Longitudinal (X): 4000 mm157,48 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1250 mm49,21 in
CNC: Heidenhain TNC426CA
Drives: SIEMENS SIMODRIVE
Spindle power: 37,5 Kw
Rotating speed: 4000 Rpm
Torque: 1500 Nm
Taper: ISO50
Notes: refrigerante interno/esterno al mandrino
Rapid X: 12 m/min472,44 ipm
Rapid Y: 12 m/min472,44 ipm
Rapid Z: 12 m/min472,44 ipm
Positions: 40
Floorspace (LxWxH): 5000x2000 mm196,85x78,74 in
Type: TU144
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: 144x2,5 °
Max torque: 1500 Nm
Max speed: 4000 Rpm
Max power: 37,5 Kw
Machine total weight: 36000 Kg
Total power supply: 55 HP
Filtration unit: si
High Pressure: Refrigerante attraverso il mandrino
Housing: perimetrale area di lavoro
Chip conveyor: si
