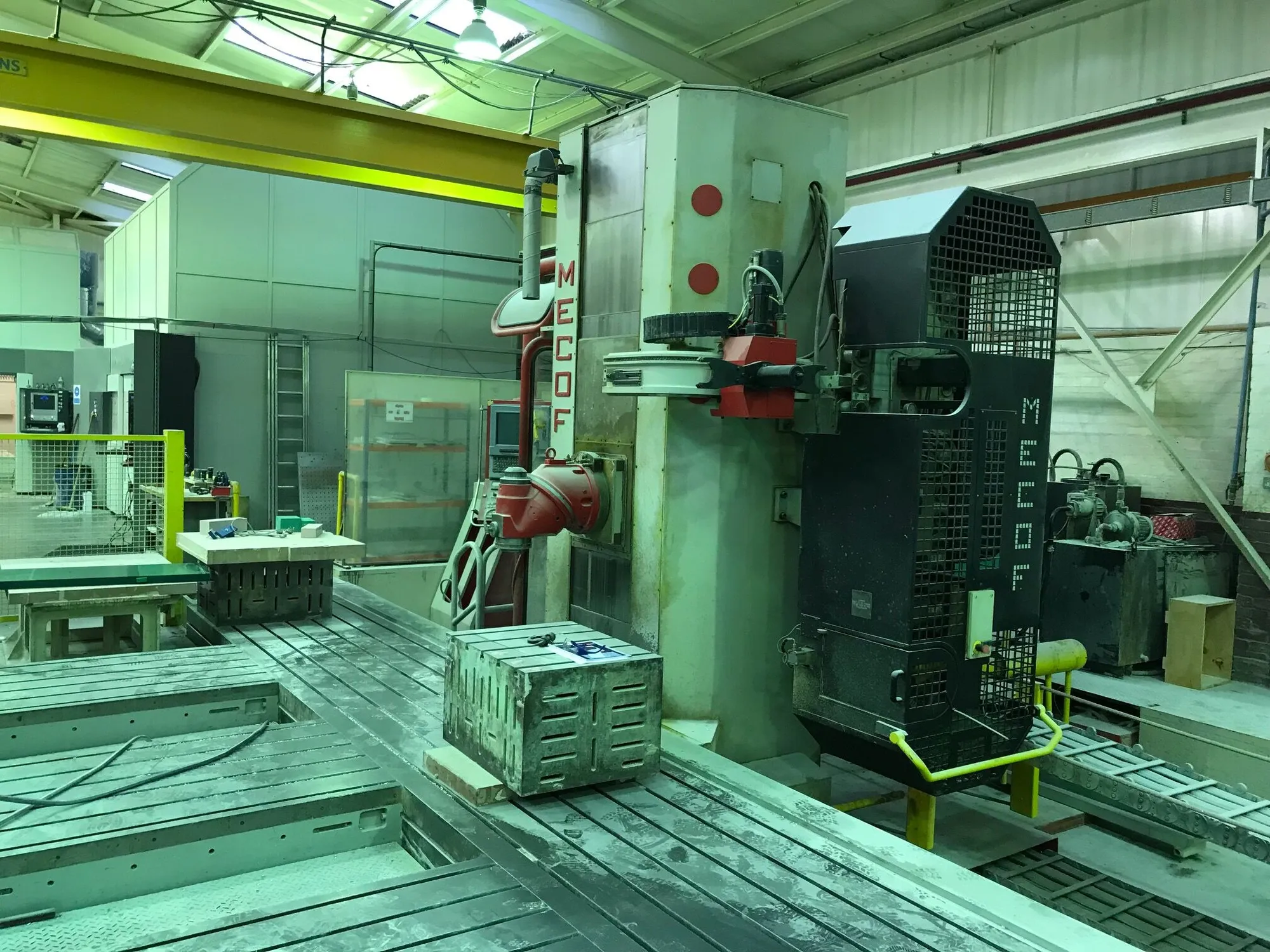

USED MECOF CS500 AGILE

Longitudinal (X): 6000 mm236,22 in
Vertical (Y): 1700 mm66,93 in
Cross RAM (Z): 1250 mm49,21 in
CNC: FIDIA
Drives: SIEMENS SIMODRIVE
Floorspace (LxWxH): 7300x1090x900 mm287,40x42,91x35,43 in
T slots number: 22mm H7
Capacity: 8000 Kg/mq
Type: TBA4
Spindle taper: ISO50 DIN69871
A axis: 360x1 °
C axis: 120x3 °
Max torque: 780 Nm
Max speed: 4000 Rpm
Max power: 30 Kw
Rapid X: 20 m/min787,40 ipm
Rapid Y: 20 m/min787,40 ipm
Rapid Z: 20 m/min787,40 ipm
Spindle power: 30 Kw
Gearbox: 2 gamme
Rotating speed: I: 15-370 / II: 370-4000 Rpm
Taper: ISO50 DIN69871
Torque: 780 Nm
Positions: 40
Tool taper: ISO50
Position: a catena, sul montante
Tooling included: Opzionali 3 cubi + 2 squadre, testa elettromandrino
Availability: pronta
Chiller: si
