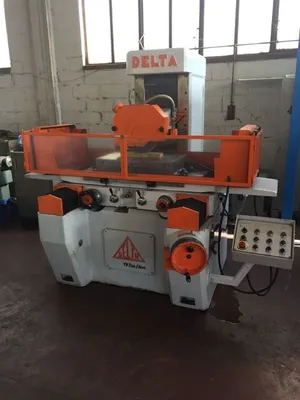

USED DELTA TP 700 X 400

Longitudinal (X): 700 mm27,56 in
Cross Table (Y): 450 mm17,72 in
Vertical (Z): 550 mm21,65 in
Max grinding lenght: 750 mm29,53 in
Max grinding width: 400 mm15,75 in
Spindle nose axis - table distance: 550 mm21,65 in
Automatic Vertical: SI mm/minSI ipm
Cross: SI mm/minSI ipm
Cross speed: 0-30 MILL/MIN
Spindle power: 10 HP Kw
Rotating speed: 1400 Rpm
Wheel band thickness: 50 mm1,97 in
Max wheel diameter: 400 mm15,75 in
Hole diameter: 127 mm5,00 in
Housing: SI
Availability: PRONTA
Available under power: SI
Machine total weight: 4000 Kg
Filtration unit: SI
