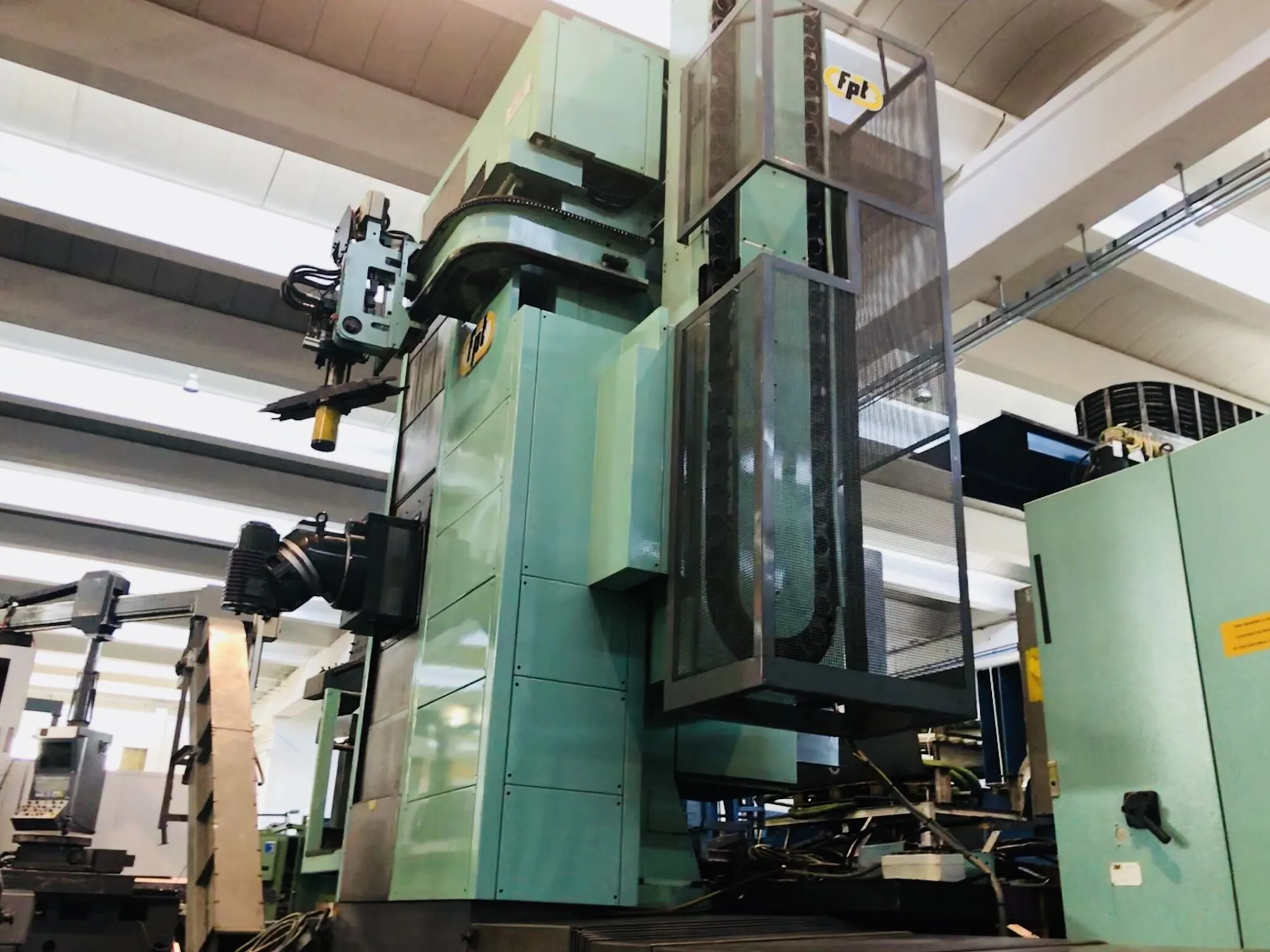

USED FPT LEM M50

Spindle power: 22/27,5 Kw
Rotating speed: 187-4000 Rpm
Torque: 1400 Nm
Taper: ISO50
Rapid X: 15 m/min590,55 ipm
Rapid Y: 15 m/min590,55 ipm
Rapid Z: 15 m/min590,55 ipm
Rapid V: 15 m/min590,55 ipm
X: 6 m/min236,22 ipm
Y: 6 m/min236,22 ipm
Z: 6 m/min236,22 ipm
V: 6 m/min236,22 ipm
Positions: 60
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 230 mm9,06 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 20 Kg
Tool taper: ISO50
Surface: 1250x1250 mm49,21x49,21 in
Translation: 1500 mm59,06 in
Accuracy (B axis): 0,001 °
Capacity: 10.000 Kg
Type: TUPC
Spindle taper: ISO50
A axis: 360x1 °
C axis: 360x1 °
Max torque: 1400 Nm
Max speed: 4000 Rpm
Max power: 27,5 Kw
Coolant: interno CTS
Longitudinal (X): 5000 mm196,85 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1200 mm47,24 in
Table (V): 1500 mm59,06 in
Axes support: Hydrostatic
CNC: Heidenhain TNC430
Measuring system: Siemens Sinumeric 611
Drives: Siemens Sinumeric 611
Machine total weight: 27000 Kg
Total power supply: 52 HP
High Pressure: 16Bar
Filtration unit: 1200L
Chiller: si
Chip conveyor: si
Housing: perimetrale
Floor space: 10500x9595 mm413,39x377,76 in
