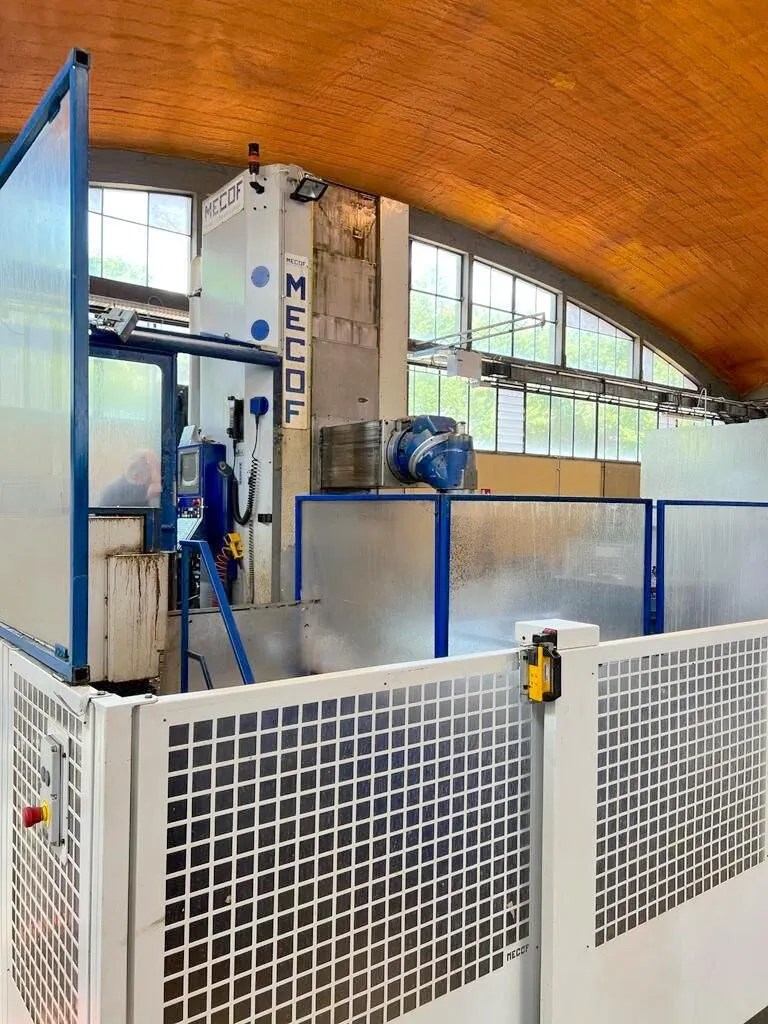

USED MECOF CS500 AGILE

Longitudinal (X): 4000 mm157,48 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1250 mm49,21 in
CNC: Heidenhain iTNC530
Spindle power: 30 Kw
RAM section: 450x450 mm17,72x17,72 in
Notes: asse C 360.000 posizoni
Rapid X: 20 m/min787,40 ipm
Rapid Y: 20 m/min787,40 ipm
Rapid Z: 20 m/min787,40 ipm
Positions: 24
Max tool diameter: 120 mm4,72 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 15 Kg
Tool taper: ISO50
Floorspace (LxWxH): 5300x1090x900 mm208,66x42,91x35,43 in
Capacity: (47 Ton) 8.000 Kg/mq
T slots number: 6x22
Notes: 2 cubi 1520x1000x900
Type: TCB6 birotativa a posizionamento millesimale automatico
Spindle taper: ISO50 DIN69871
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max torque: S1 780 Nm
Max speed: 6000 Rpm
Max power: S1 30 Kw
Coolant: 20 bar interno al mandrino 7 6 Bar esterno al mandrino
High Pressure: 20Bar CTS - 1000Lt.
Chip conveyor: Si
