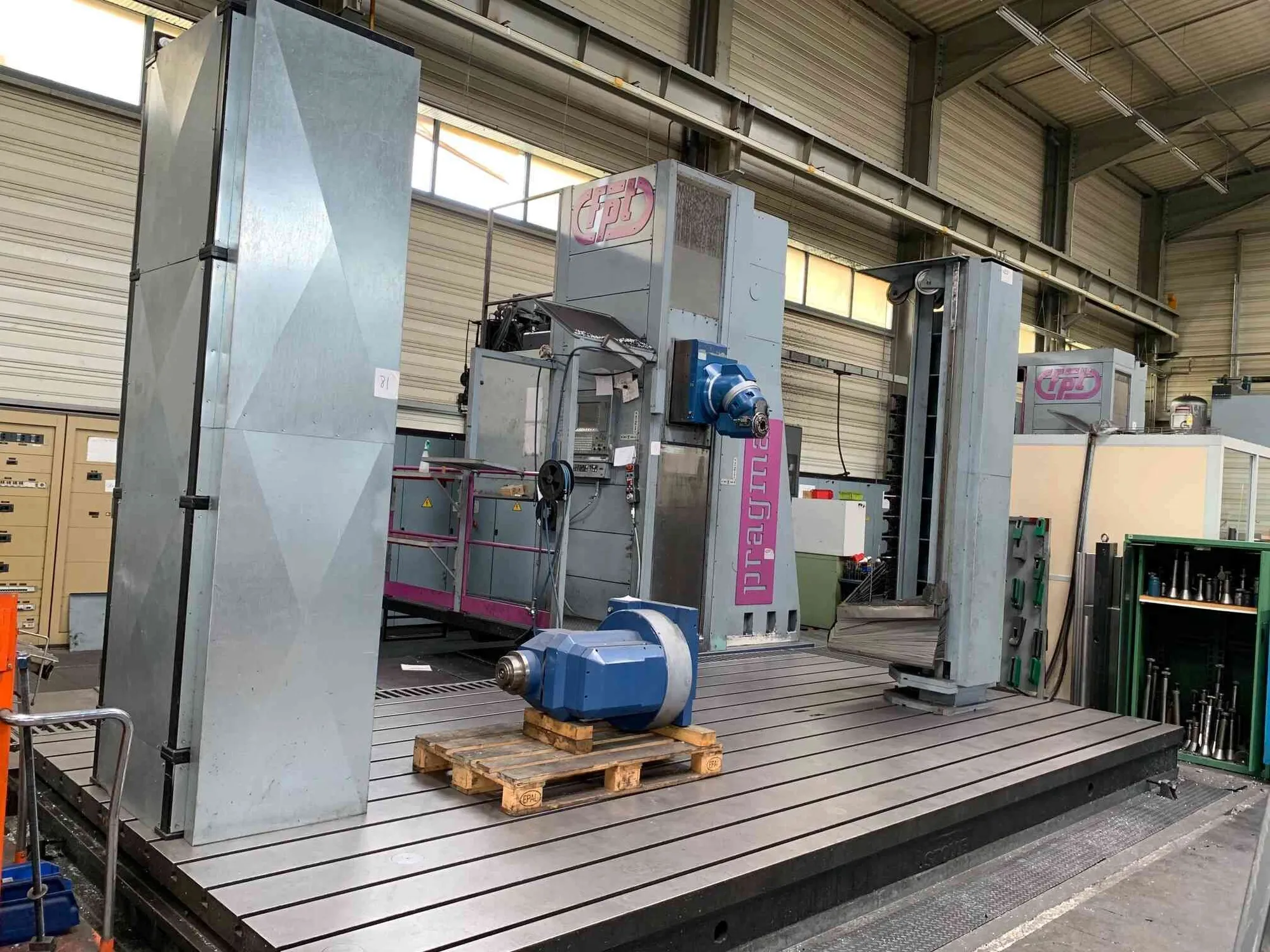

USED FPT PRAGMA M60

Longitudinal (X): 6000 mm236,22 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1200 mm47,24 in
CNC: Fidia C2/4F
Drives: SIEMENS Sinumerik
RAM section: 450x530 mm17,72x20,87 in
Spindle power: 24/27,5 Kw
Gearbox: I: 0-235 / II: 235-5000Rpm
Rotating speed: 0-5000 Rpm
Torque: 1120 Nm
Taper: ISO50
Rapid X: 30 m/min1.181,10 ipm
Rapid Y: 30 m/min1.181,10 ipm
Rapid Z: 30 m/min1.181,10 ipm
X: 15 m/min590,55 ipm
Y: 15 m/min590,55 ipm
Z: 15 m/min590,55 ipm
Positions: 24 (12 HSK63+12 ISO50)
Max tool weight: 20 Kg
Tool taper: ISO50 / HSK63
Position: Pickup station
Positions: 3
Type: FPT TUPC
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: 144x2,5 °
Max torque: 1120 Nm
Max speed: 5000 Rpm
Max power: 27,5 Kw
A axis: 144x2,5 °
C axis: 144x2,5 °
Max speed: 18.000 Rpm
A axis: 144x2,5 °
C axis: 144x2,5 °
Max speed: 24.000 Rpm
Total power supply: 62 HP
Machine total weight: ≈50.000 Kg
Filtration unit: Vasca filtro
Chiller: si
Chip conveyor: si
Availability: pronta
Available in stock: si
