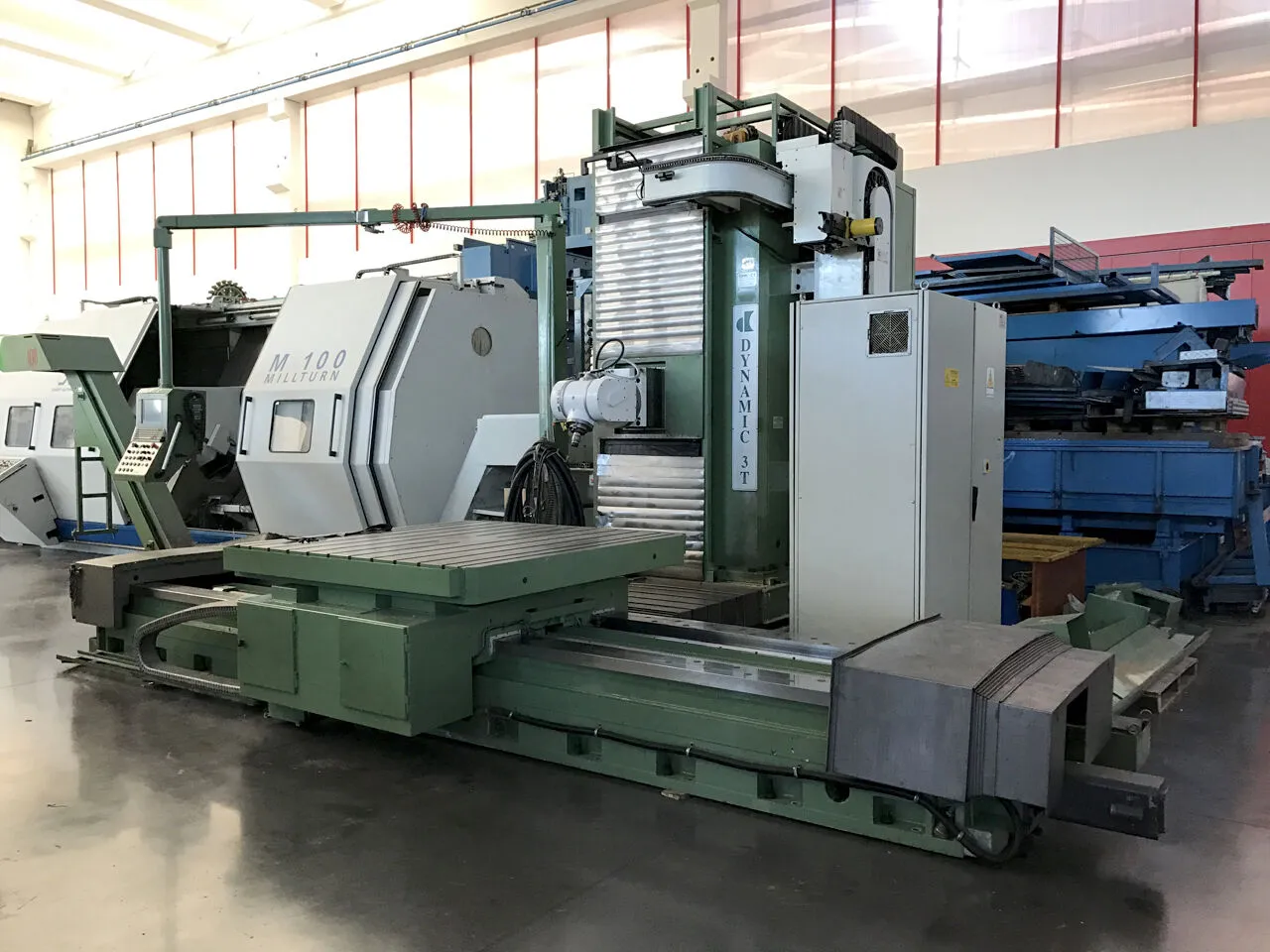

USED DEBER DYNAMIC 3T/TG

Longitudinal (X): 4000 mm157,48 in
Vertical (Y): 2000 mm78,74 in
Cross column (Z): 1300 mm51,18 in
Ram (V): 1000 mm39,37 in
CNC: SELCA S3045D
Notes: porta seriale per trasferimento dati
Spindle power: 28 Kw
Gearbox: 2 gamme automatiche
Rotating speed: 3000 Rpm
Taper: ISO50
RAM section: 420x350 mm16,54x13,78 in
Positions: ATC40
Position: sulla colonna
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 250 mm9,84 in
Max tool lenght: 350 mm13,78 in
Max tool weight: 25 Kg
Tool taper: ISO50 DIN69871
Surface: 1800x1800 mm70,87x70,87 in
Accuracy (B axis): 0,001 °
Capacity: 20.000 Kg
Support: Hydrostatic
Rotating speed: 3 Rpm o °/min
Notes: 11 cave a T, 22mm H7
Translation: 4000 mm157,48 in
Type: TOB automatica
Spindle taper: ISO50
Max speed: 3000 Rpm
Max power: 28 Kw
A axis: (index 2,5°) 180 °
C axis: (index 2,5°) 270 °
Notes: due encoder
Rapid X: 10 m/min393,70 ipm
Rapid Y: 15 m/min590,55 ipm
Rapid Z: 15 m/min590,55 ipm
Rapid V: 15 m/min590,55 ipm
Rapid B: 3 Rpm
X: 10 m/min393,70 ipm
Y: 8 m/min314,96 ipm
Z: 8 m/min314,96 ipm
V: 8 m/min314,96 ipm
B: 3 Rpm
Total power supply: 50 HP
Machine total weight: 32000 Kg
Chip conveyor: si
Availability: pronta
Available in stock: si
Floor space: ca. 7000x6000 mmca. 275,59x236,22 in
Tool presetter: si
