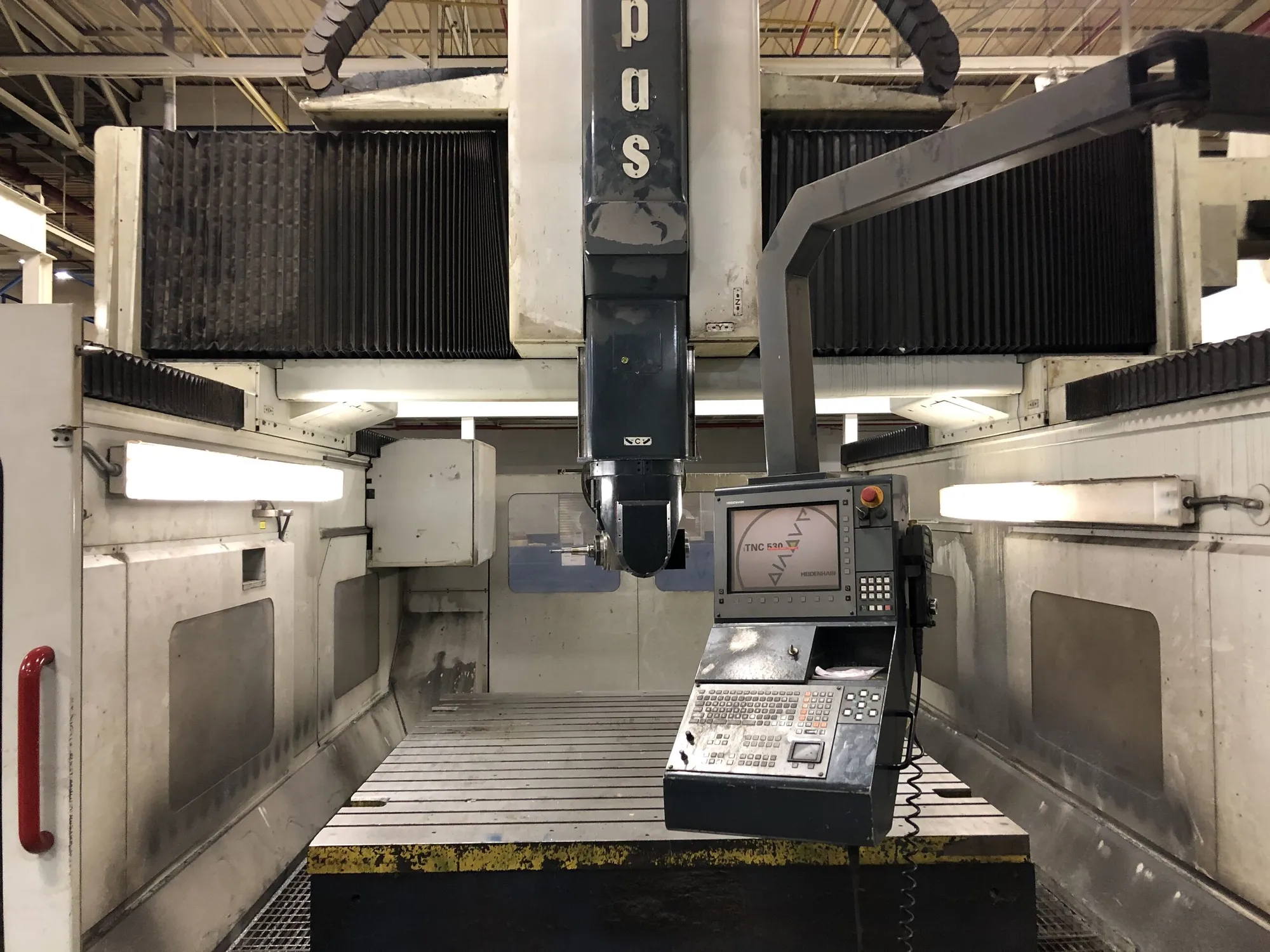

USED PARPAS OMNIA 43

Coolant: esterno
Type: TU600
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: continua 0,001x360.000 °
Max speed: 5000 Rpm
Longitudinal (X): 4000 mm157,48 in
Vertical RAM (Y): 1500 mm59,06 in
Cross Crossrail (Z): 3000 mm118,11 in
Column distance: 3630 mm142,91 in
Spindle nose - table distance: 2030 mm79,92 in
CNC: Heidenhain TNC530
Rapid X: 24 m/min944,88 ipm
Rapid Y: 24 m/min944,88 ipm
Rapid Z: 24 m/min944,88 ipm
Floorspace (LxWxH): 5000x2500 mm196,85x98,43 in
Capacity: 15000 Kg/mq
Total weight capacity: 187.000 Kg
T slots number: 22x28mm
A axis: (+/-105°) continua 0,001x360.000 °
C axis: continua 0,001x360.000 °
Max speed: 21000 Rpm
Max power: 16 Kw
Total power supply: 77 HP
Tool presetter: laser
Housing: perimetrale
Floor space: 7230x6951x5623 mm284,65x273,66x221,38 in
