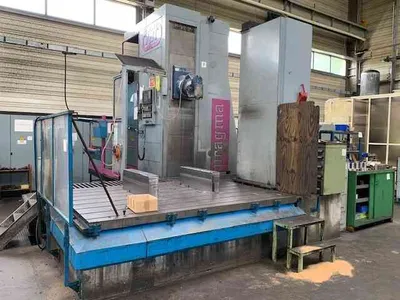

USED FPT PRAGMA SU30

Longitudinal (X): 3000 mm118,11 in
Vertical (Y): 1600 mm62,99 in
Cross RAM (Z): 1250 mm49,21 in
CNC: Siemens 840D
Drives: Siemens Sinumerik
RAM section: 450x530 mm17,72x20,87 in
Spindle power: 24/27,5 Kw
Gearbox: I: 0-235 / II: 235-5000Rpm
Rotating speed: 0-5000 Rpm
Torque: 1120 Nm
Taper: ISO50
Rapid X: 30 m/min1.181,10 ipm
Rapid Y: 30 m/min1.181,10 ipm
Rapid Z: 30 m/min1.181,10 ipm
X: 15 m/min590,55 ipm
Y: 15 m/min590,55 ipm
Z: 15 m/min590,55 ipm
Type: FPT TUPC
Spindle taper: ISO50
Max torque: 1120 Nm
Max speed: 5000 Rpm
Max power: 27.5 Kw
A axis: 144x2.5 °
C axis: 144x2.5 °
Max speed: 14.000 Rpm
Positions: 3
