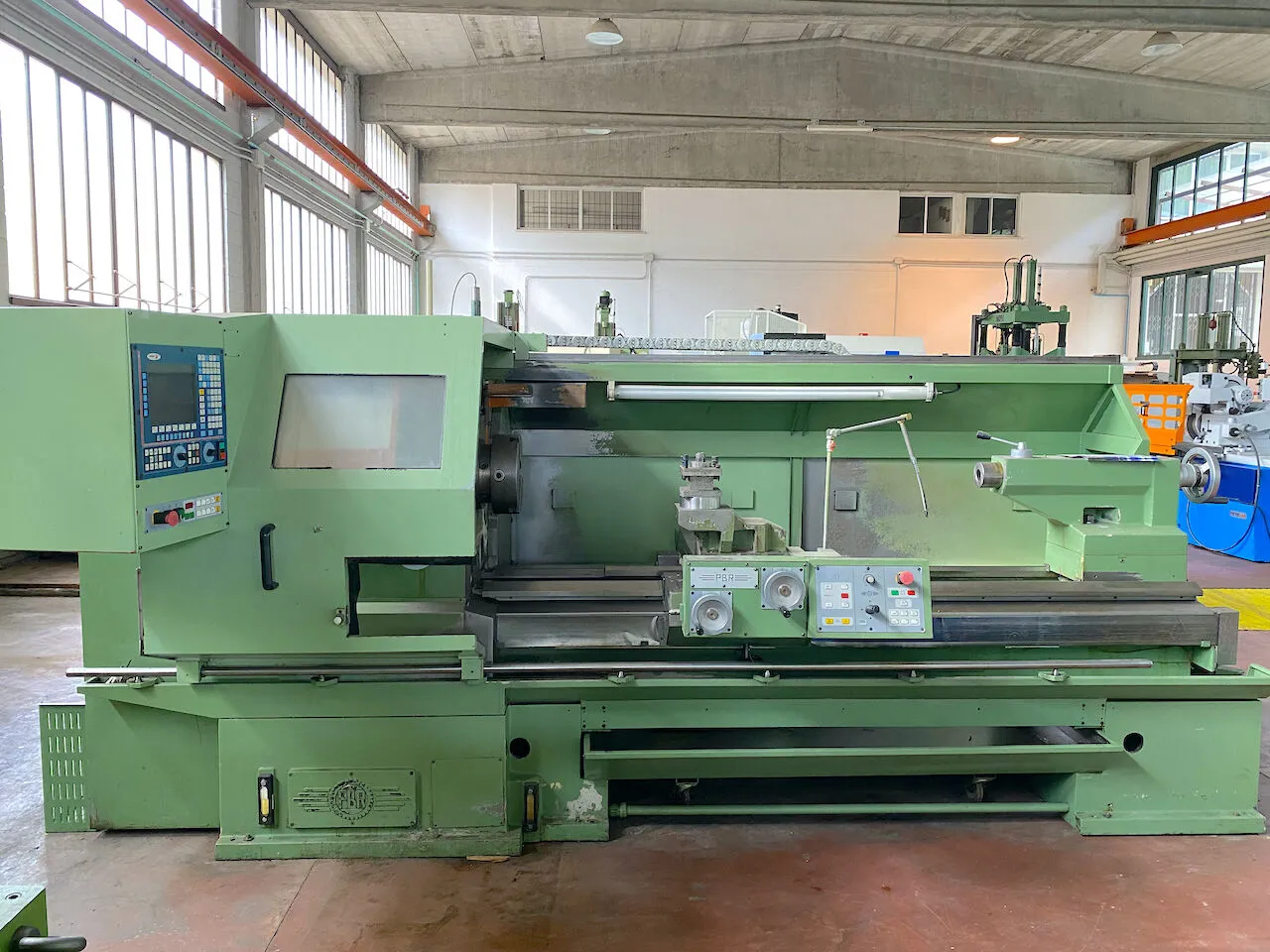

USED PBR T40 SNC 400X1500MM

Max bar working diameter: 105
Max swing on the bed: 800 mm31,50 in
Max working lenght: 1500 mm59,06 in
Bed width: 450 mm17,72 in
Guide-ways number: 2 mm0,08 in
Max weight between centres: 3000 Kg
Max weight on steadies: 4000 Kg
CNC: FAGOR 8055
Max rotation speed: 0-2000 rpm
Spindle nose: Cam Lock 8”
Spindle hole: 105 mm4,13 in
Internal bearing diameter: 130 mm5,12 in
Max power: 17 Kw
Max torque: 1560 Nm
Gearbox: 2 gamme meccaniche
Quill diameter: 115 mm4,53 in
Quill stroke: 250 mm9,84 in
Taper: MK6
Positions number: 4
Axis stroke X: 450 mm17,72 in
Rapid feed X: 10 m/min393,70 ipm
Axis stroke Z: 1500 mm59,06 in
Rapid feed Z: 10 m/min393,70 ipm
Machine total weight: 5800 Kg
Floor space: 4200x2535x2005 mm165,35x99,80x78,94 in
Protections: integrale
Availability: pronta
