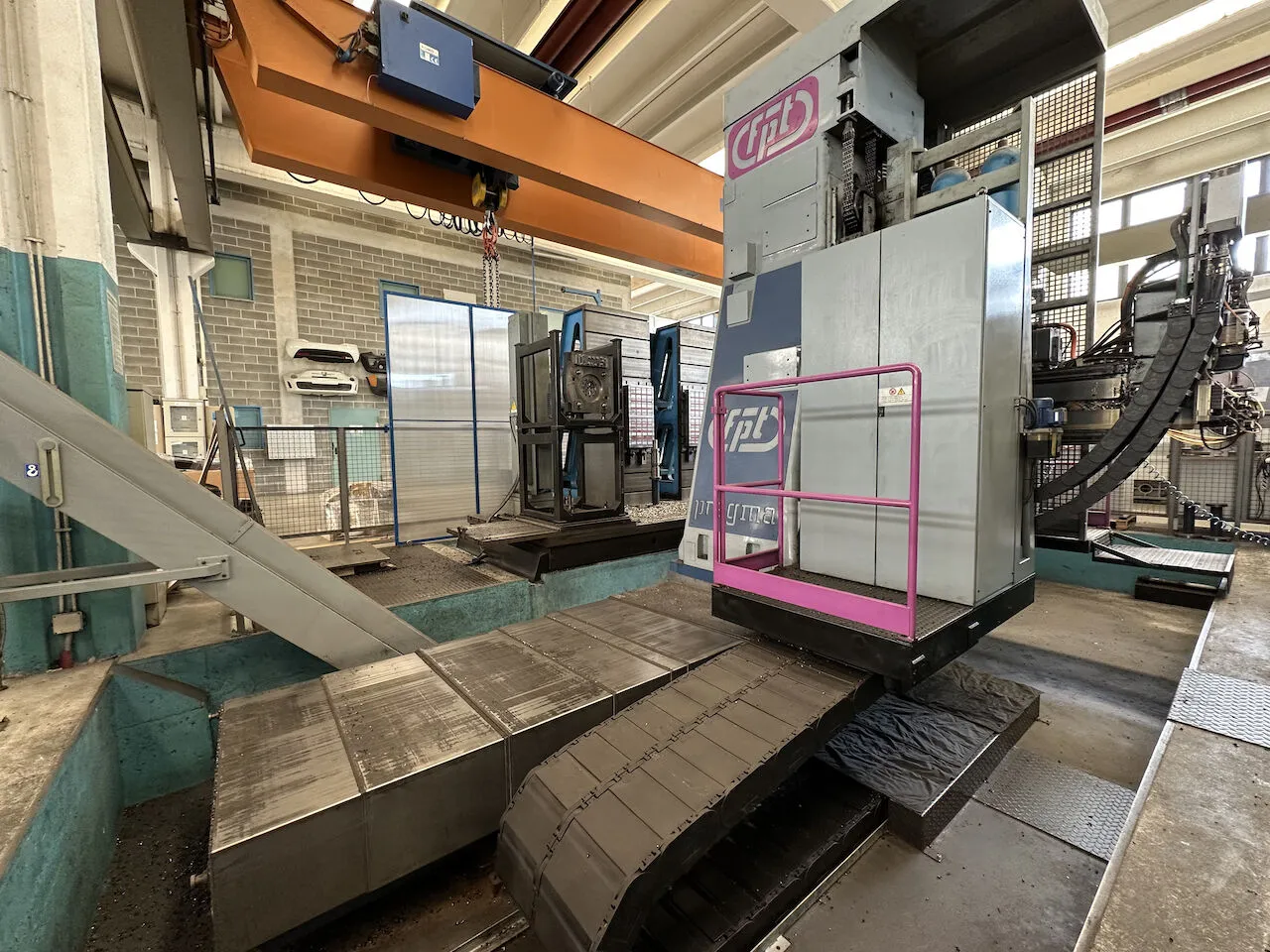

USED FPT PRAGMA M40

Longitudinal (X): 4000 mm157,48 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1200 mm47,24 in
CNC: Heidenhain TNC430
Type: TUPC
Spindle taper: ISO50
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max speed: 5000 Rpm
Max power: 27,5 Kw
Max torque: 1120 Nm
Notes: revisionata 07/2022
Positions: 12
Max tool diameter: 220 mm8,66 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 35 Kg
Spindle power: 27,5 Kw
Rotating speed: 5000 Rpm
Torque: 1120 Nm
Taper: ISO50
Floorspace (LxWxH): 5000x2000x330 mm196,85x78,74x12,99 in
Max torque: 1120 Nm
Max speed: 5000 Rpm
Positions: 2 (con aggancio automatico)
Floor space: ≈ 8900x8000x4200 mm≈ 350,39x314,96x165,35 in
Housing: perimetrale
Chip conveyor: si
Total power supply: 61,6 HP
