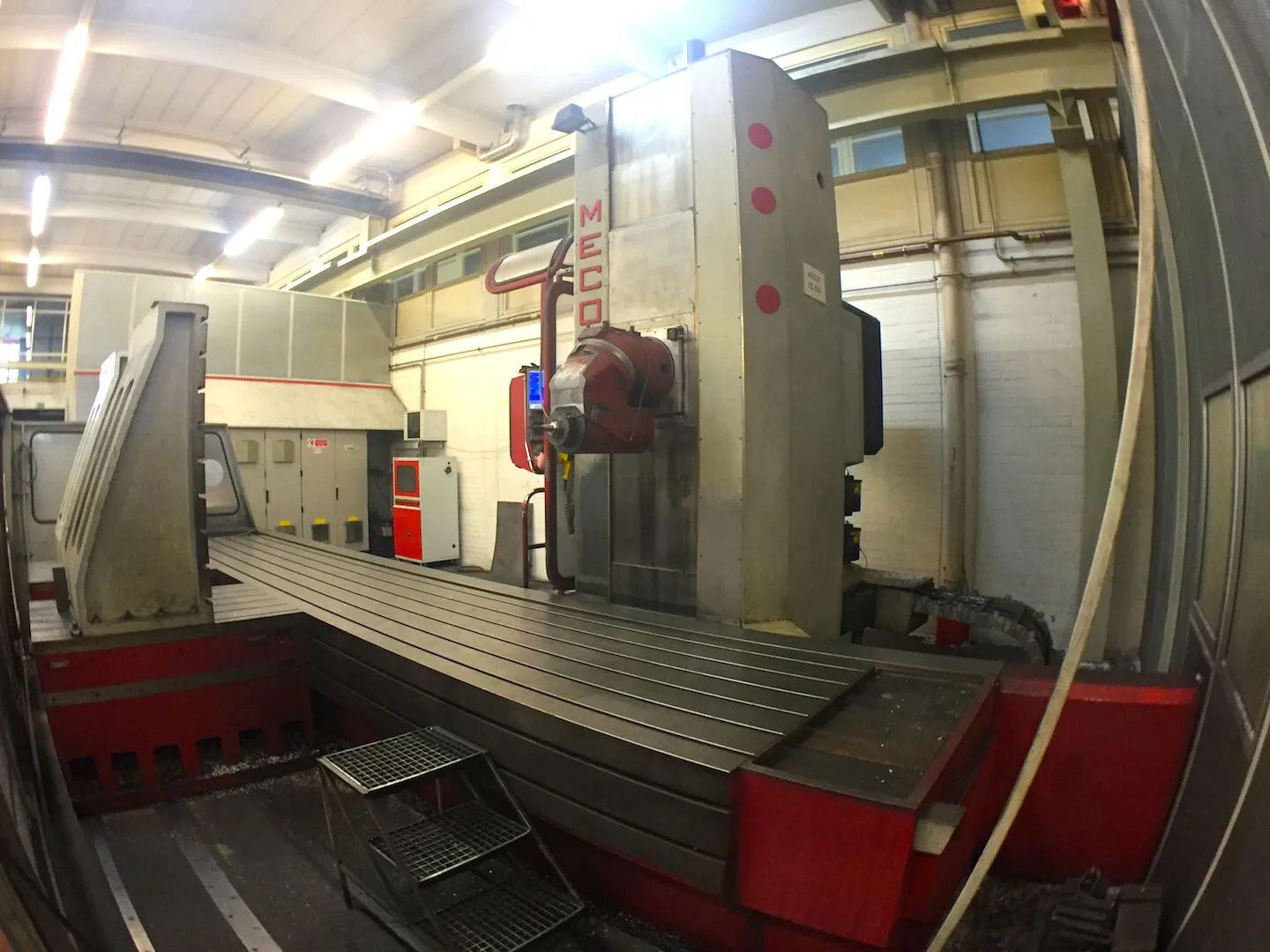

USED MECOF CS500 AGILE

Longitudinal (X): 5000 mm196,85 in
Vertical (Y): 1700 mm66,93 in
Cross RAM (Z): 1000 mm39,37 in
CNC: FIDIA M2
Floorspace (LxWxH): 6300x1090x900 mm248,03x42,91x35,43 in
T slots number: 6x22
Capacity: 8 Kg/mq
Type: TWIN automatica birotativa
Spindle taper: ISO40
A axis: 360x1 °
C axis: 360x1 °
Max torque: 72 Nm
Max speed: 12000 Rpm
Max power: 15 Kw
Coolant: esterno
Notes: Elettromandrino GAMFIOR E11
Rapid X: 20 m/min787,40 ipm
Rapid Y: 20 m/min787,40 ipm
Rapid Z: 20 m/min787,40 ipm
Spindle power: 25 Kw
Gearbox: 2 gamme
Rotating speed: 10-3000 Rpm
Taper: ISO50
Filtration unit: si
Housing: perimetrale
Availability: pronta
