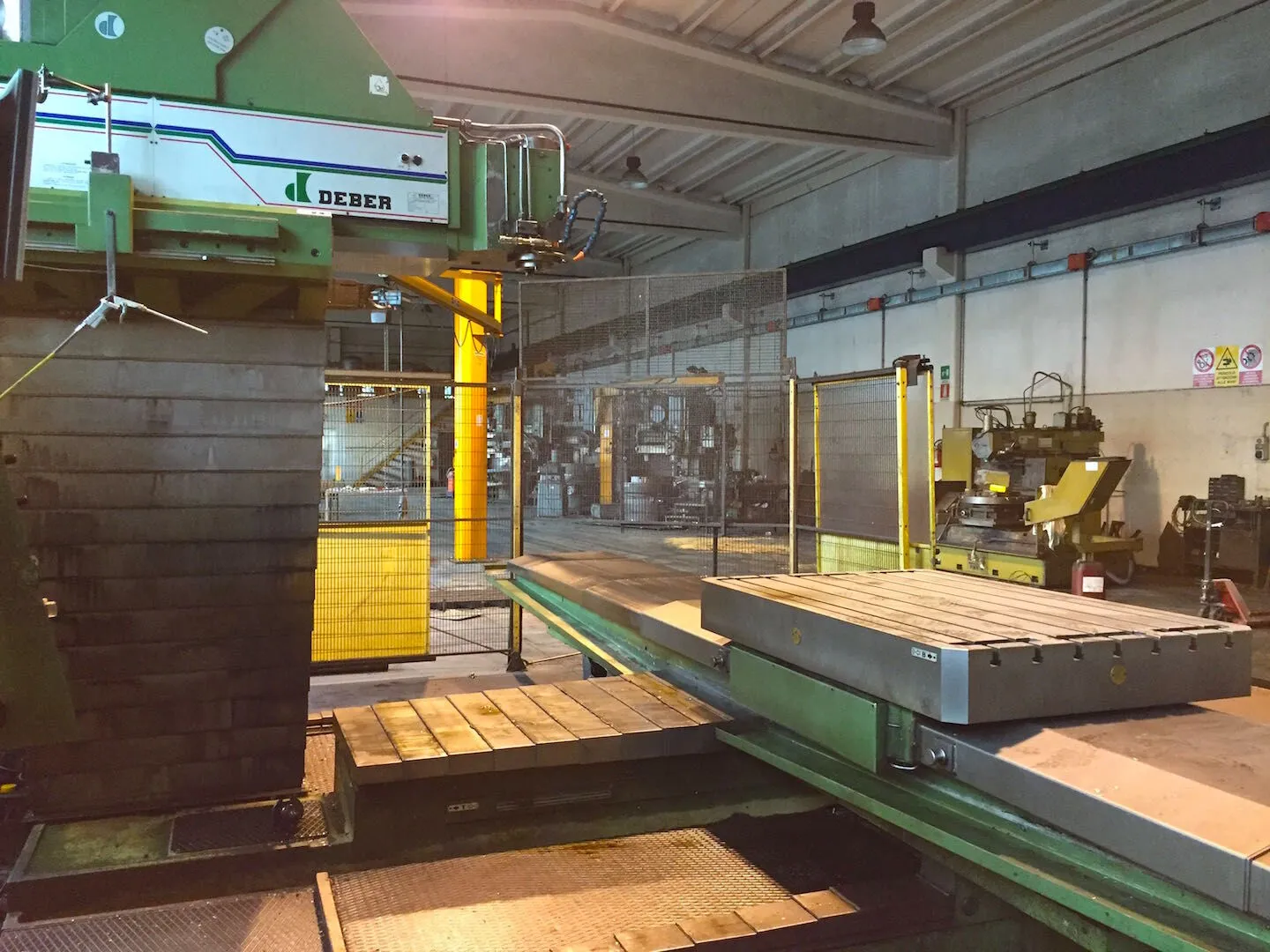

USED DEBER BTM5A CENTER 3G

Longitudinal (X): 3000 mm118,11 in
Vertical (Y): 1550 mm61,02 in
Cross RAM (Z): 600 mm23,62 in
Table (V): 1200 mm47,24 in
CNC: Heidenhain TNC430
Notes: volantino remotato HR410
Spindle power: 25 Kw
Gearbox: 2 gamme automatiche
Rotating speed: 0-3000 Rpm
Taper: ISO50
Rapid X: 8 m/min314,96 ipm
Rapid Y: 8 m/min314,96 ipm
Rapid Z: 8 m/min314,96 ipm
Rapid V: 8 m/min314,96 ipm
X: 2 m/min78,74 ipm
Y: 2 m/min78,74 ipm
Z: 2 m/min78,74 ipm
V: 2 m/min78,74 ipm
Positions: 40
Position: scambio in orrizzontale / verticale
Surface: 1500x1000 mm59,06x39,37 in
Accuracy (B axis): 0,001 °
Capacity: 5000 Kg
Type: Ortogonale bimandrino
Spindle taper: ISO50
Max speed: 2000 Rpm
Notes: rotazione manuale su asse orizzontale
Capacity: 5000 Kg/mq
Notes: tavola in continua
Floorspace (LxWxH): 1500x1000 mm59,06x39,37 in
T slots number: 7x18mm
Machine total weight: 24000 Kg
Chiller: si
Housing: cabinatura perimetrale
Available under power: si
Availability: pronta
