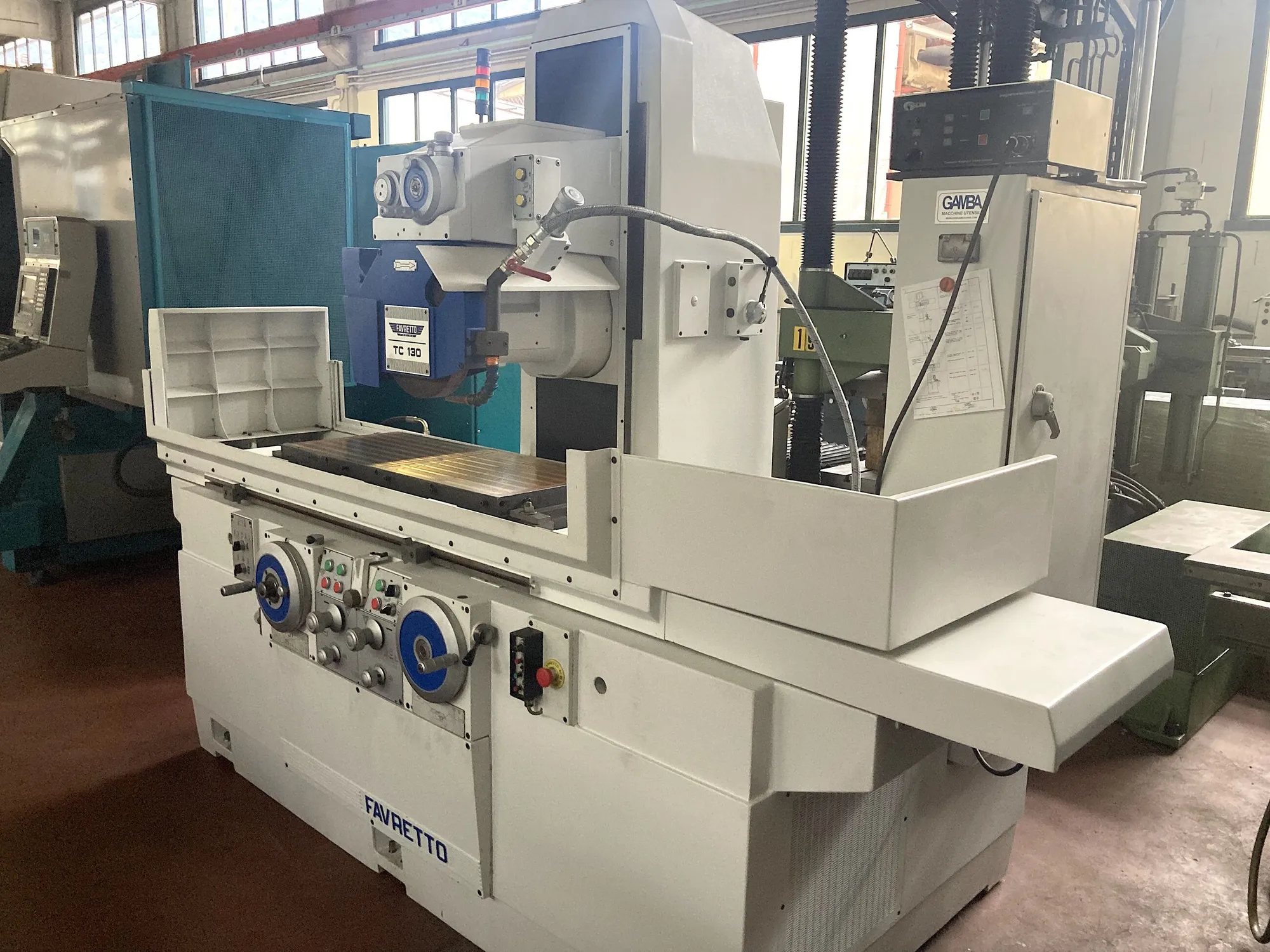

USED FAVRETTO TC 130

Longitudinal (X): 1300 mm51,18 in
Cross Table (Y): 575 mm22,64 in
Cross RAM (Y): 575 mm22,64 in
Max grinding thickness: 400 mm15,75 in
Notes: PIANO ELETTROMAGNETICO
Cross speed: 2-35
Automatic Vertical: 0,005-0,05 mm/min0,0002-0,0020 ipm
Cross: AUTOMATICI mm/minAUTOMATICI ipm
Spindle power: 12 Kw
Rotating speed: 1450 Rpm
Notes: FLAGE E MOLE A CORREDO
Wheel band thickness: 75 mm2,95 in
Max wheel diameter: 406 mm15,98 in
Hole diameter: 127 mm5,00 in
Total power supply: 18 HP
Machine total weight: 5500 Kg
Floor space: 3000X1500 mm118,11X59,06 in
Tooling included: DIAFORM
Available in stock: SI
Available under power: SI
