Used

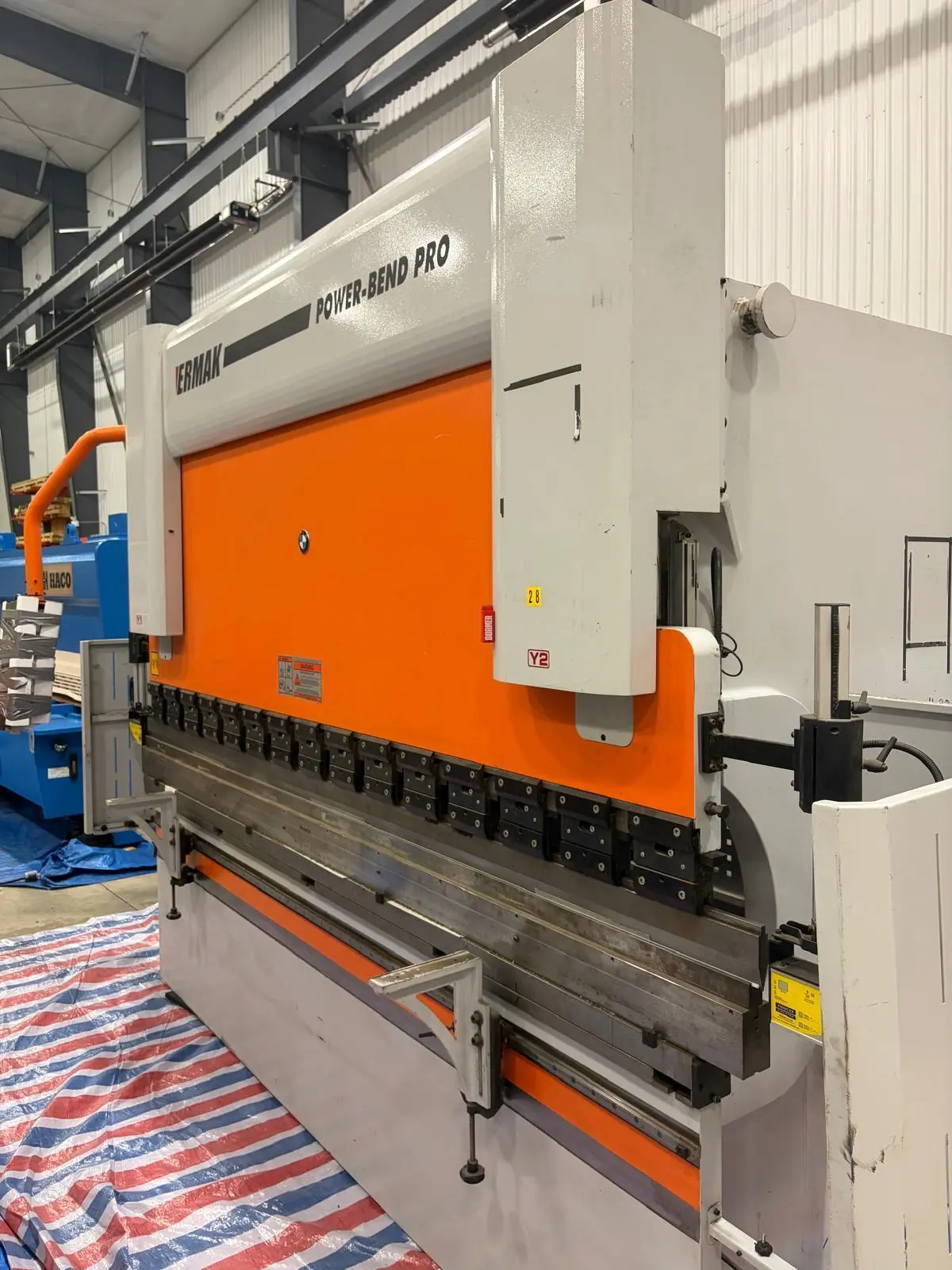

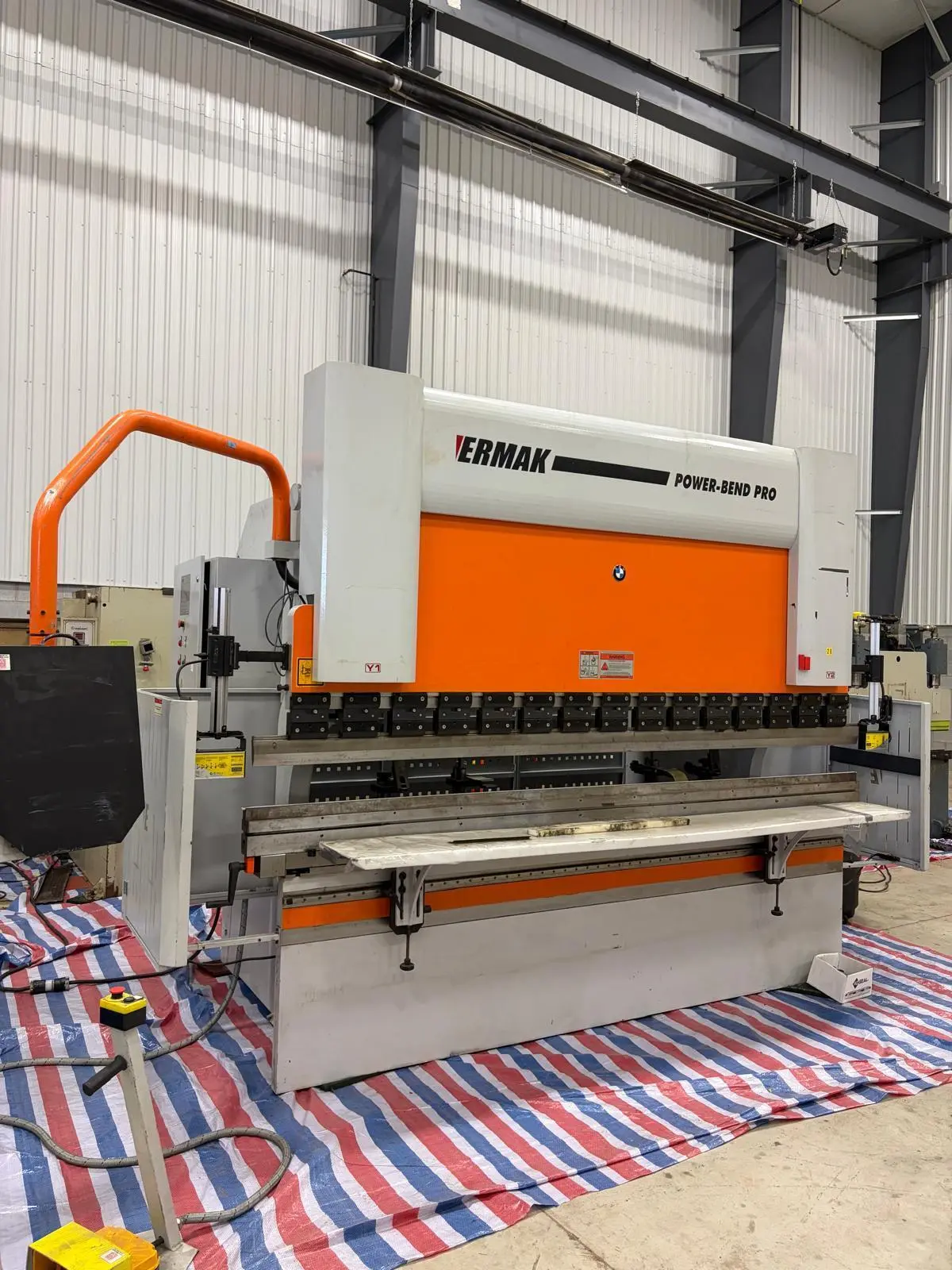

USED ERMAKSAN POWER-BEND PRO 3100X135

Ontario, Canada
104Listings|23Followers
Overview
Press Brakes

Model: Ermaksan Powerbend 3100 x 150UST
Sn: 06951-KZ20DF
Year: 2012

The Power-Bend Falcon is one of ERMAKSAN’s most popular hydraulic press brakes. Known for its dependability, accuracy, and operator-friendly design, it’s ideal for small-to-mid-sized fabrication shops seeking a cost-effective CNC solution. This machine is ideal for shops producing custom, low-volume parts that require consistent accuracy ensuring the same precision on the first run and every repeat order.

Cybelec DNC60S control
Comes with tooling shown in pictures, acute punch and die
Feissler light curtains
Heidenhain scales
Condition: Good (regular maintenance performed)

Specs
Bending Length
3100 / 10ft
Type
HYD
Max Tonnage
135 metric Ton / 150 US short tons
# of Axis
3 (Y1,Y2,X)
Free Down Speed
7in/sec
Bending Speed
.394in/sec
Return Speed
7.8in/sec
Stroke
11in
Backguage Stroke (X)
30in
Backguage Stroke (R)
Manually adjusted
Distance Between Housings
100in
Crowning
Manual crowning adjustment
Throat Depth
16.1in
Daylight
20in
Voltage
575V/3ph/60hz
Dimensions
L167" x W80" x H110"
Weight
17,500lbs
