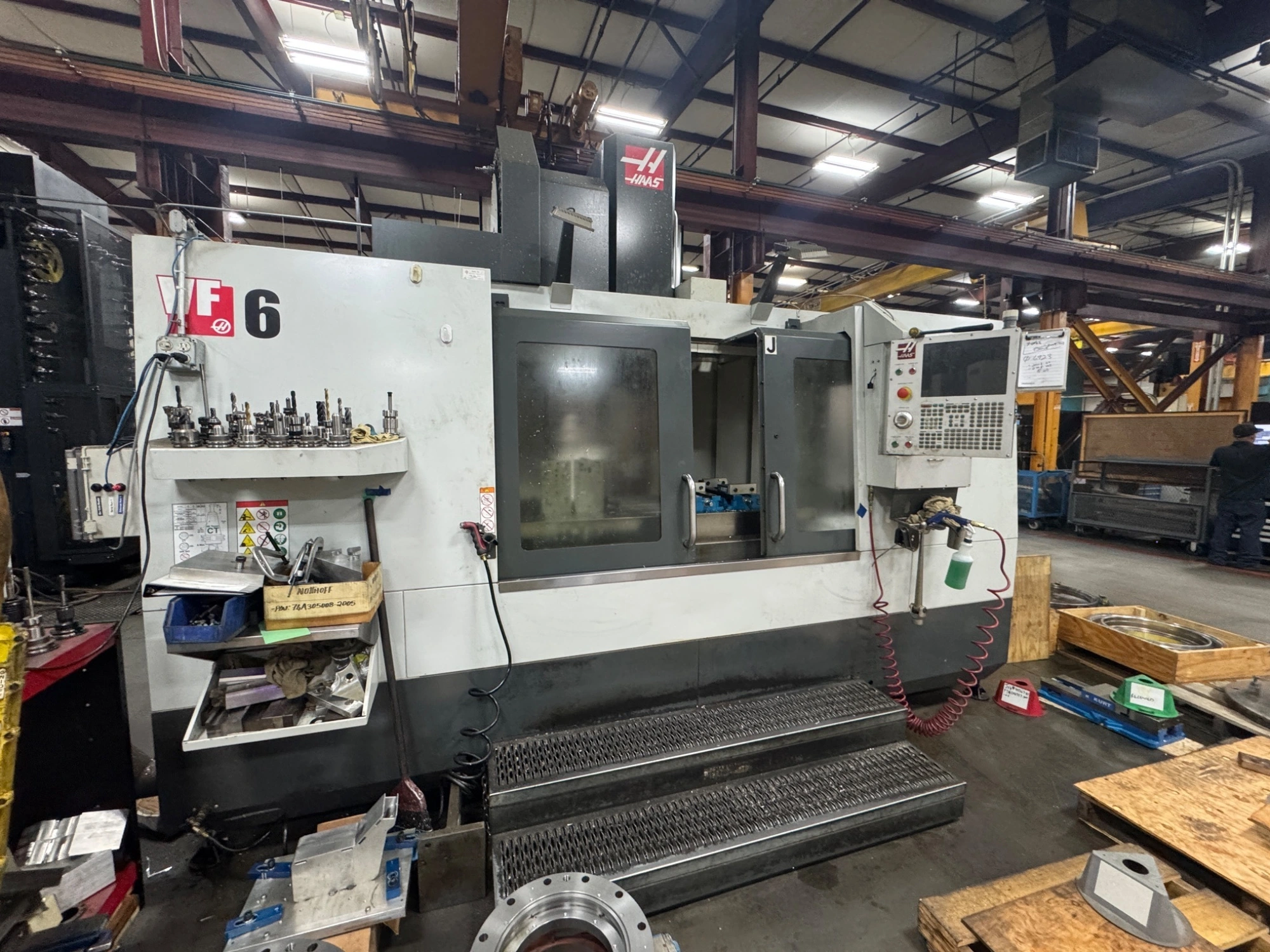

USED 2019 HAAS VF-6/40
Overview
2019 HAAS VF-6/40 used machining center available. Features X: 64", Y: 32", Z: 30", 8100 RPM, 20 ATC, CT/BT 40 taper, and 3-axis capability. Large table size, ideal for diverse applications.
Specs
2019 Haas VF-6/40 Vertical Machining Center #8283
Specifications:
X-Axis Travel: 64.00"
Y-Axis Travel: 32.00"
Z-Axis Travel: 30.00"
Spindle Nose to Table: 4.0" – 34.0"
Spindle Speed: 8,100 RPM
Spindle Motor: 30 hp
Spindle Taper: CAT-40
Max Torque: 90 ft-lb @ 2,000 RPM (250 ft-lb with optional gearbox)
Tool Changer: 50+1 Side-Mount ATC
Max Tool Diameter (Full): 2.5"
Max Tool Diameter (Adjacent Empty): 5.0"
Max Tool Length: 16"
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~2.8 sec
Chip-to-Chip Time: ~3.6 sec
Table Size: 64" x 28"
Max Table Load: 4,000 lbs
Rapid Traverse (X/Y/Z): 600 IPM
Max Cutting Feedrate: 500 IPM
Coolant Capacity: 95 gallons
Air Requirement: 4 scfm @ 100 psi
Electrical: 220 VAC, 70 A (3-phase)
Machine Weight: 22,300 lbs
