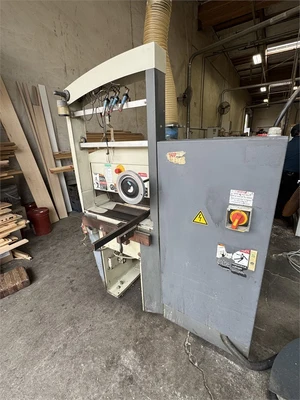

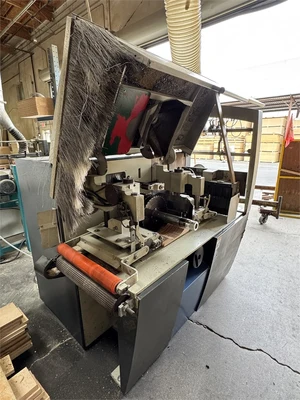

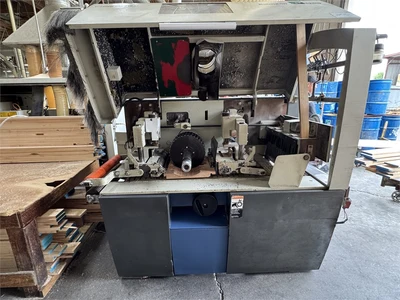

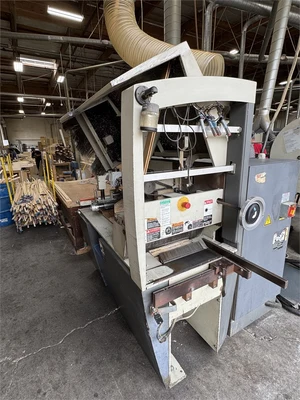

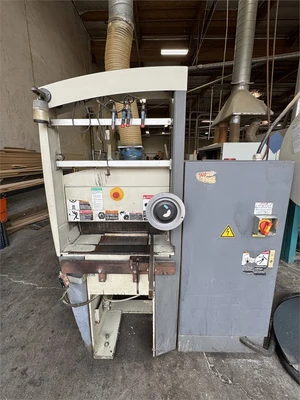

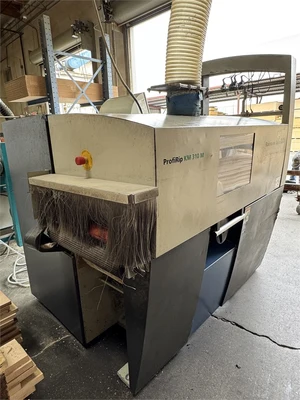

USED 2004 RAIMANN PROFIRIP KM 310 M

Lot Closes:: 7/30/2026 10:05:00 AM PT
See video of machine in operation
12-1/4" maximum width capacity
3/4" minimum strip width
16" minimum part length
3" maximum depth of cut with pressure shoe, 3-1/2" depth of cut without pressure shoe
Variable feed speed
13-1/2" chain width

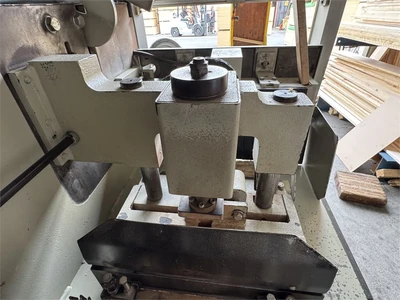

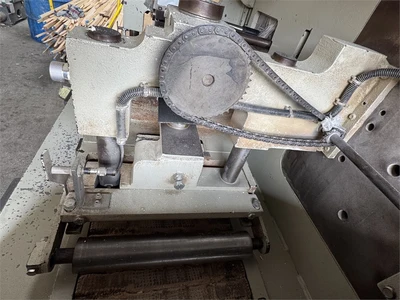

Sawblade diameter 9-3/4" - 14". Arbor diameter 65 mm (2-1/2");  manual thickness adjustment of upper holddown rolls with indicator scale, 6" throat depth to the right of blade.

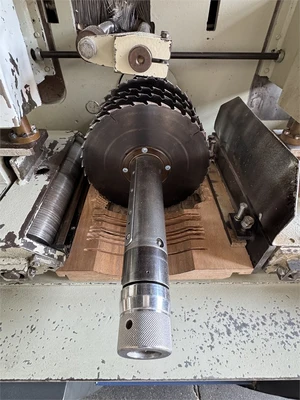

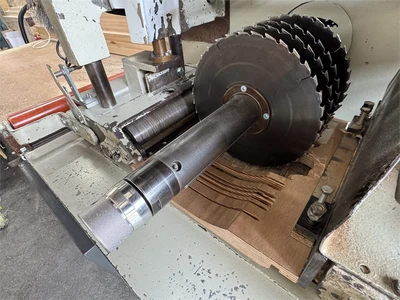

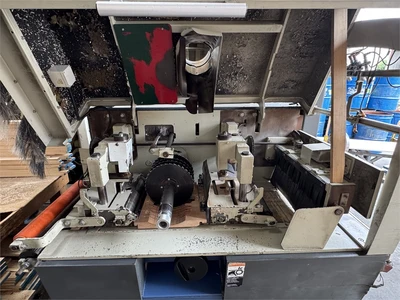

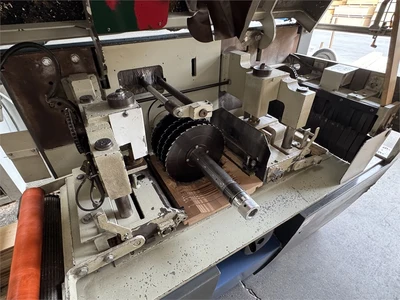

"Quickfix" arbor for optimizing solutions: Saw blades are mounted to individual flanges that slide up and down the arbor into position and lock into place by tightening the end of the arbor; no tools & no spacers required.
50 HP - 4,200 RPM V-belt driven arbor.

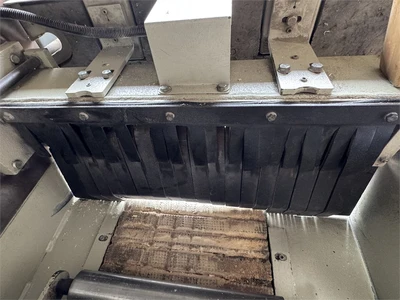

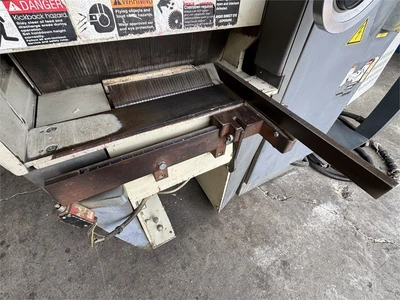

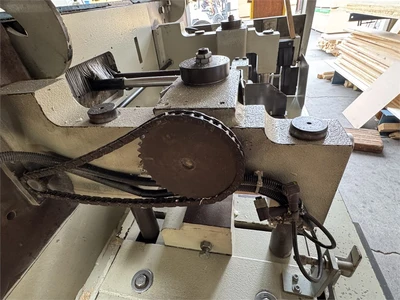

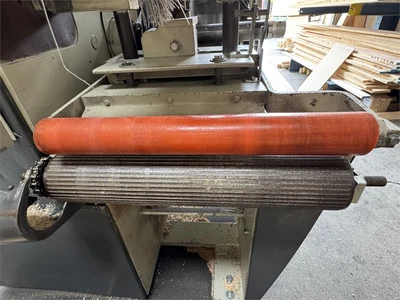

Frequency controlled feed speed of 13 - 158 FPM, 2.2 HP feed drive, automatic chain lubrication, (4) sets of top & bottom anti-kickback fingers, extended infeed with additional bed roll and adjustable infeed fence.

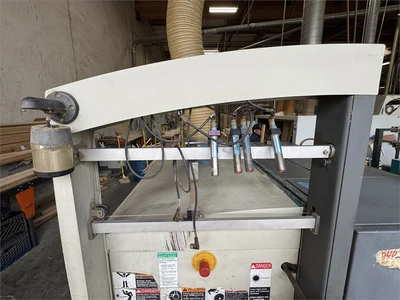

(4) overhead lasers

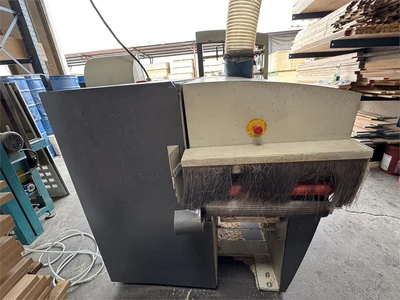

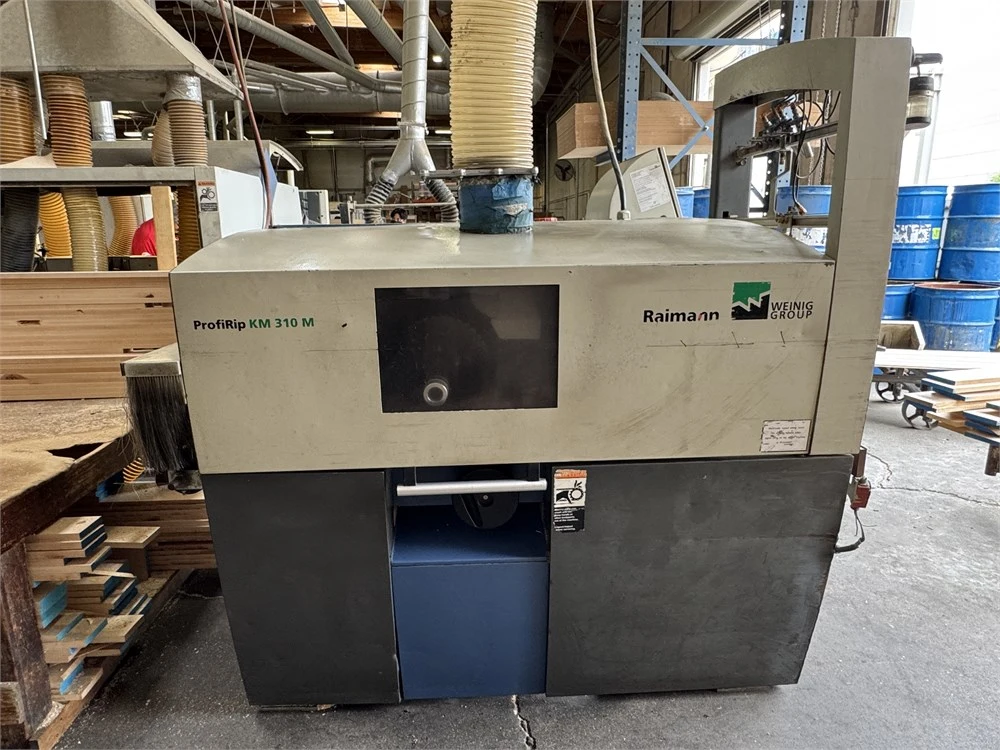

Sound enclosure

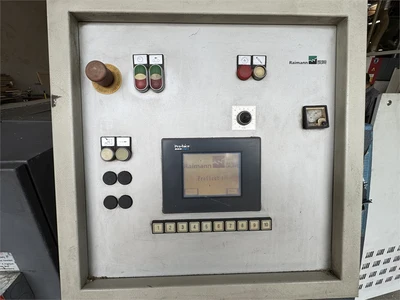

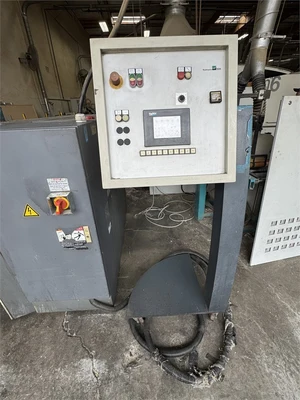

Mobile control stand
Tooling and dust collection components NOT included
