USED 2024 MUTOH XPERTJET 1462UF

Lot Closes:: 7/24/2026 10:00:00 AM PT

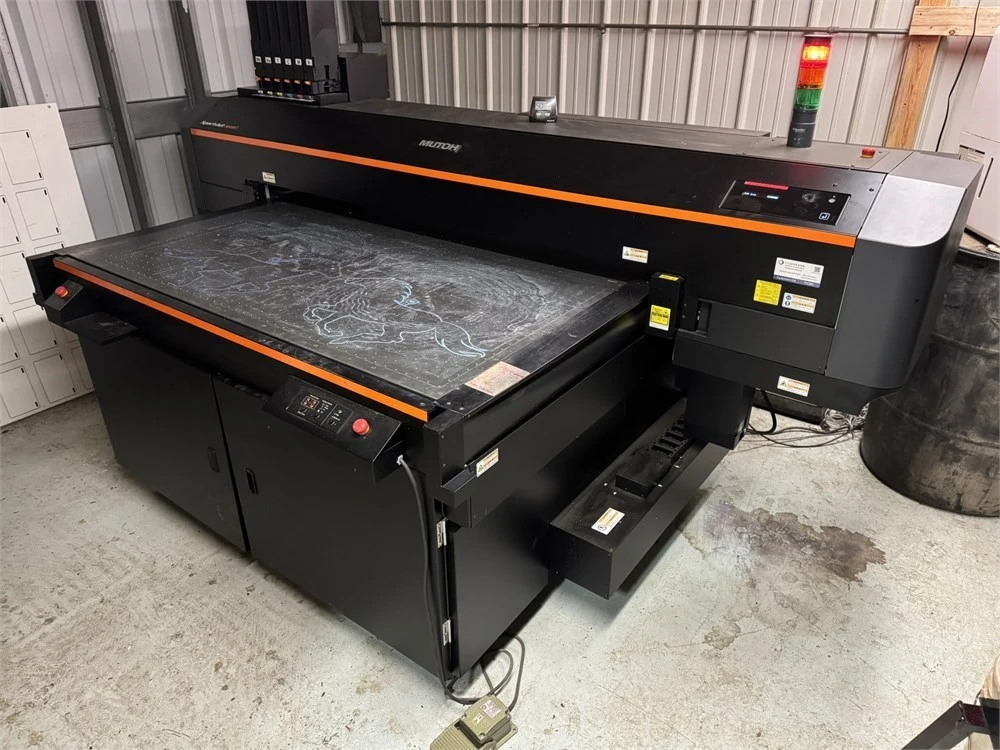

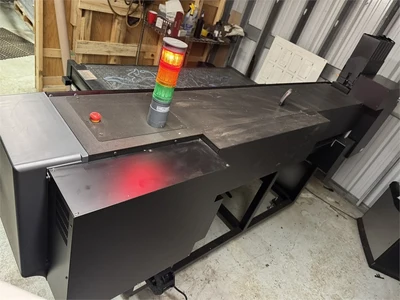

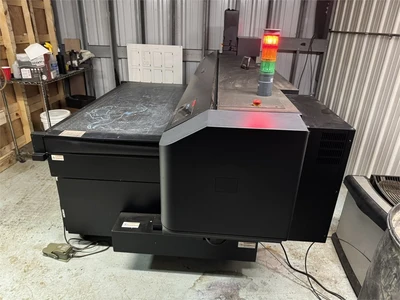

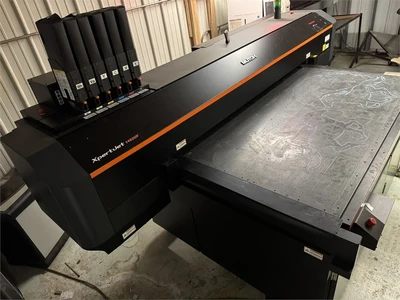

Mutoh "XpertJet 1462UF" UV-LED Flatbed Printer - Walker, MN
See video of machine in operation
See attached sales catalouge for reference, not all options necessarily apply

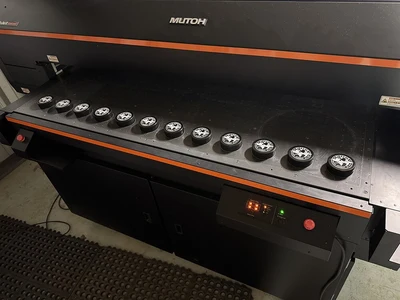

The XP J-1462UF offers a large table area capable of printing up to 55" x 27" and objects up to 5.9" thick while holding weight of 10 lbs per sq ft. Cover a wide range of applications from large signage to small golf balls, all with shorter print times, resulting in improved productivity. The print table has 4 individually controlled vacuum zones that can be adjusted from the dedicated control panel.
Newly developed 4" wide UV-LED lamps are mounted on both sides of the print heads and enable fast curing for bi-directional printing. Print head 1 prints CMYK.

Print head 2 prints white & varnish which allows for faster printing of 2-layers, 2.5D texture and ADA compliant braille signage.
The highly rigid, precision built chassis and rail mechanism ensure accurate dot placement for reliable high-quality printing.
55″ x 27″ Printing Area
Two 4″ UV-LED Lamps
Staggered Dual Print Head Configuration
Up to 5.9″ Thick Material Height
Laser Height Detection Sensor
Rigid Chassis and Bed
Laser Etched Guide-Lines
4-Zone Vacuum Table Unit
Pre-Drilled Jig Holes
Ferromagnetic Table Bed
UV-LED Local Dimming Technology
UH21 UV-LED ink
Configuration - 6 color (CMYK+W+V)
Up to 1440 x 1440 dpi
Media max thickness and weight 5.9" ; 10.24 psf
Ink Capacity - 800ml Bag / 500ml Bag (UH21 White Ink Only)
Automatic Height Adjustment
Interface - GB-Ethernet (1000BASE-T)
RIP Software - MUTOH Vertelith

Phase: 1 PHASE
Voltage: 230 VOLT
Buyer Inspection Period: By appointment only, contact Thomas Aronson, [email protected], 941-699-8717
Load Out Period: July 27 - July 31, 2026 (by appointment only
Estimated Dimensions: 109" L x 63" W x 52" H
Seller Comment: This lot requires a rigger, see home page for details
