Marvel Amada made and manufactured in the US
| Rect-Cap (H) | 18" | 457.2 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 18" | 457.2 mm |
| Square-Cap | 18" | 457.2 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 184" | 4,673.6 mm |
| Dimensions | 100 L x 84 W x 71 H | 100 L x 84 W x 71 H |
| Weight | 5500 lbs | 5500 lbs |

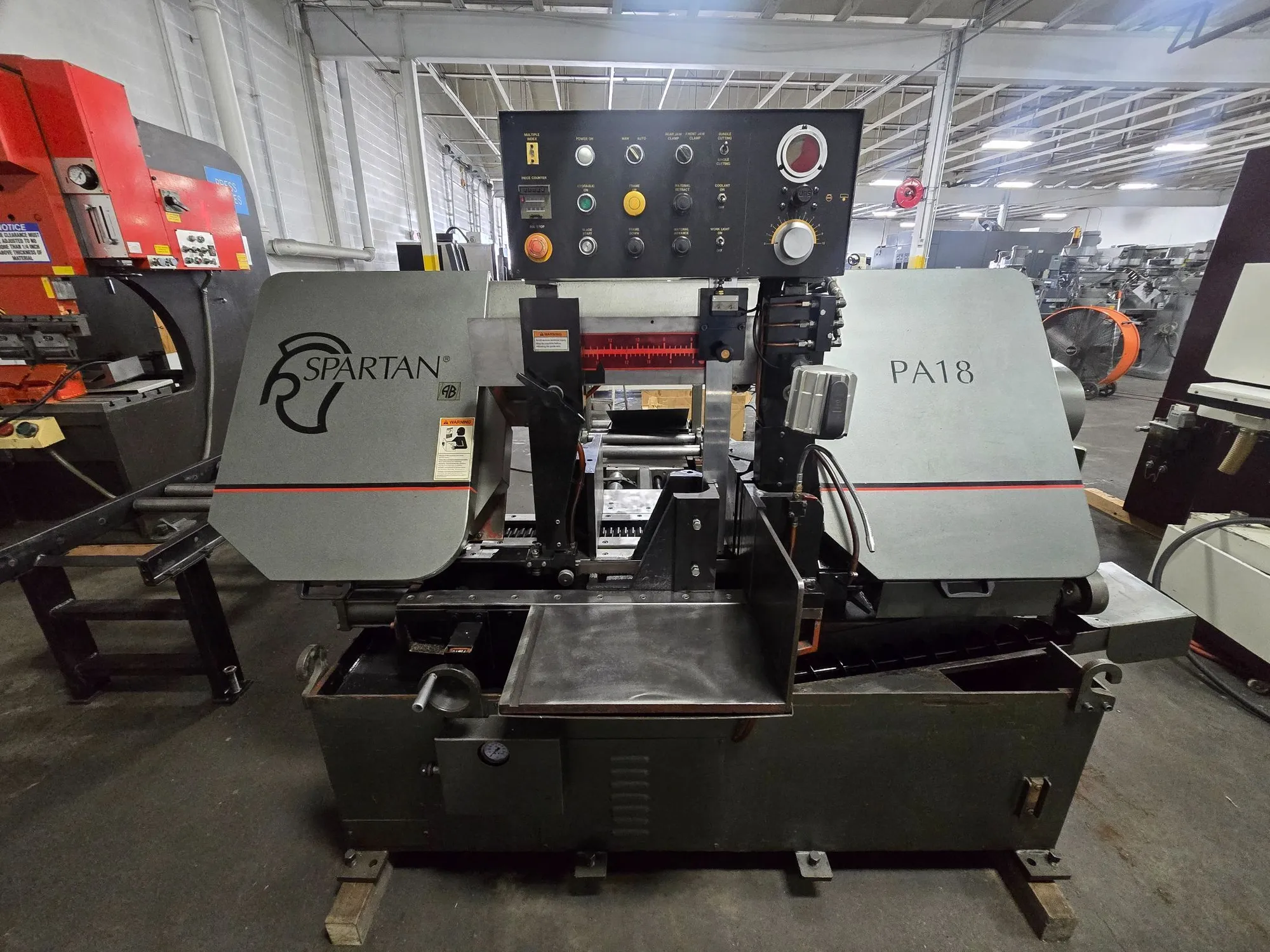

18" X 18" MARVEL SPARTAN AUTOMATIC HORIZONTAL BANDSAW
Machine Serial No.: FPA180173
Machine Model No.: PA18
Cutting Capacity: 18" High x 18" Wide or 18" Round Diameter
Blade Size: 1.5" x .050" x 15' 4" Long
Blade Speeds: Infinitely Variable 60 to 330 FPM
Distance from Floor to Work Surface of Saw: 27"
Work Load Capacity: 7,250 Lbs.
EQUIPPED WITH:
Automatic Shuttle Vise with 20" Maximum Stoke
Control Console with All Functions
Digital Blade Speed Read-Out
Digital Piece Counter
Multiple Vise Index Push Button
Adjustable Hydraulic Vise Pressure
Coolant Pump
5” Infeed Roller Table- 5’ L x 22” W x 29” H
7-1/2 HP Main Drive Motor
2 HP Hydraulic Motor
1/4 HP Coolant Motor
Wired 3 Phase, 60 Cycle, 230 Volts
Overall Size:
Saw: 100" L-R x 84" F-B x 71" H
Weight: 5,500 Lbs.
